Goodrive350-19 series VFD for crane
Note:
The fuse, DC reactor, braking resistor, input reactor, input filter, output reactor and output filter are
optional parts. For details, see Appendix D Optional peripheral accessories.
P1 and (+) have been short connected by default. If you need to connect to external DC reactor,
remove the short-contact tag of P1 and (+).
Before connecting the braking resistor, remove the yellow warning label with (+) and (-) from the
terminal block; otherwise, poor contact may occur.

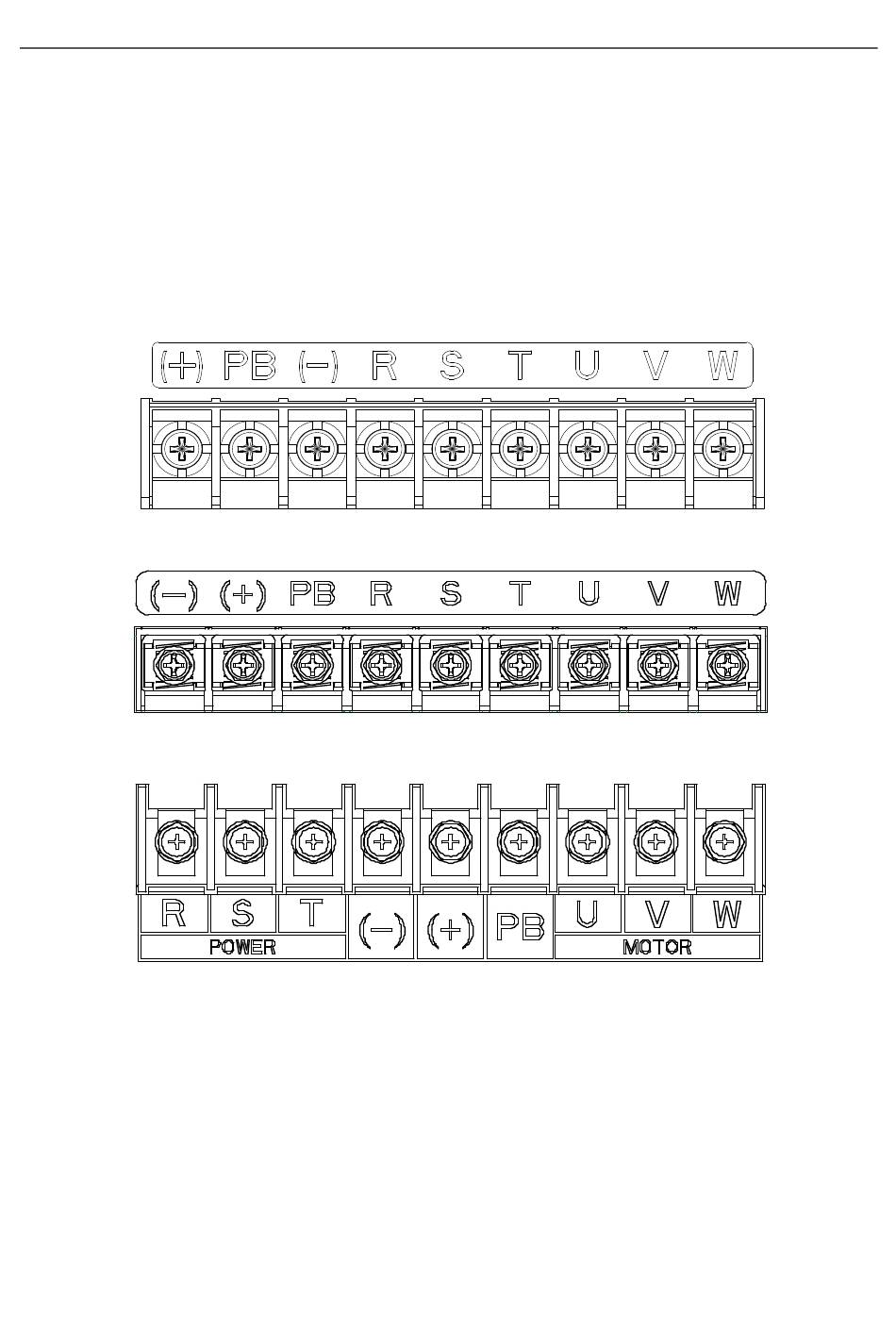

4.3.2 Main circuit terminal diagram

Figure 4-9 Main circuit terminal diagram for 3PH 380V 22kW and lower
Figure 4-10 Main circuit terminal diagram for 3PH 380V 30–37kW
Figure 4-11 Main circuit terminal diagram for 3PH 380V 45–110kW
-27-
