Keypad Operation Procedure 5; What This Chapter Contains; Keypad - INVT Goodrive 300 Operation Manual

inverters
Goodrive300
Keypad Operation Procedure

5.1 What this chapter contains

This chapter contains following operation:
• Buttons, indicating lights and the screen as well as the methods to inspect, modify and
set function codes by keypad

5.2 Keypad

The keypad is used to control Goodrive300 series inverters, read the state data and adjust
parameters.
Note:
1. The LED keypad is standard but the LCD keypad which can support various
languages, parameters copy and 10-line displaying is optional.
2. It is necessary to use M3 screw or installation bracket to fix the external keypad. The
installation bracket for inverters of 380V 1.5~30kW is optional but it is standard for the
inverters of 380V 37~500kW and 660V.
No. Name
1 State LED

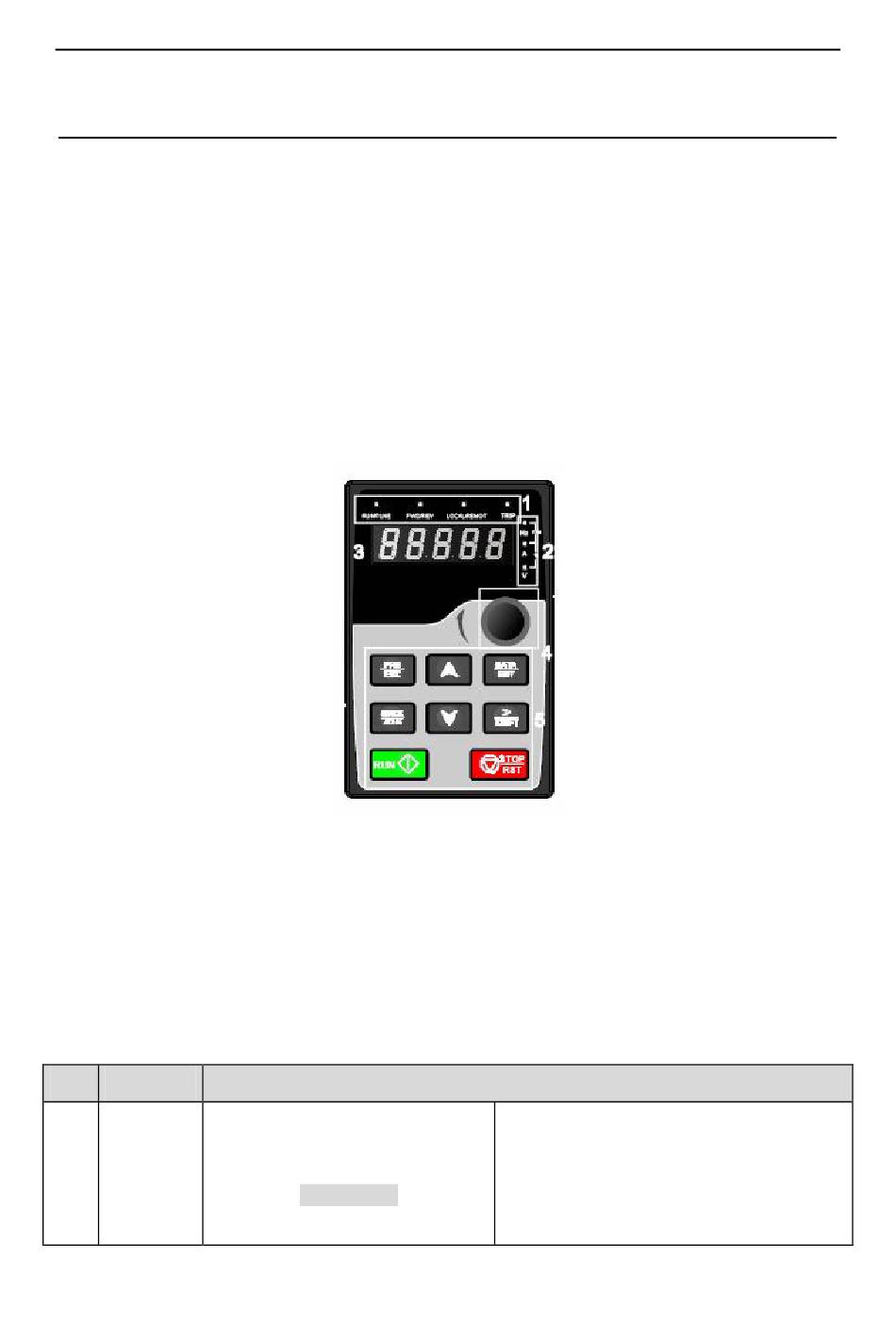

Fig 5-1 Keypad
RUN/TUNE
39
Keypad operation procedure
5
Description
LED off means that the inverter is in the
stopping state; LED blinking means the
inverter is in the parameter autotune
state; LED on means the inverter is in
