C.1 What this chapter contains
This chapter describes the dimension drawings of VFD, which use millimeter (mm) as the unit.
C.2 LED keypad

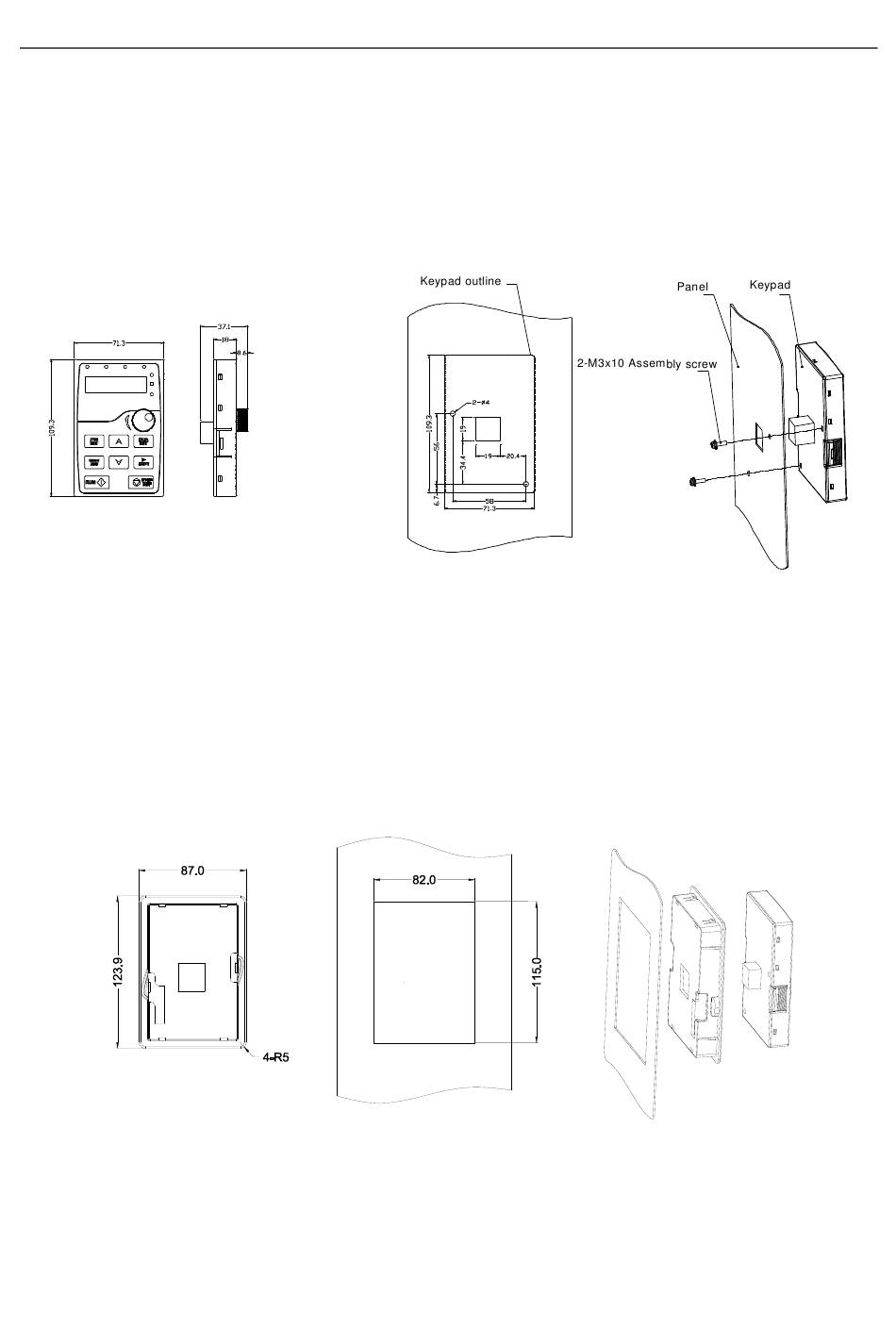

C.2.1 Structure diagram
C.2.2 Keypad mounting bracket
Note: You can directly use M3 threaded screws or an installation bracket to externally connect the
keypad to the VFD. The installation bracket is optional for 380V 1.5–30 kW VFD models and 500V
4–18.5 kW VFD models. The installation bracket is a standard part for 380V 37–500 kW VFD models,
500V 22–500 kW VFD models, and all 660V VFD models.
Keypad installation bracket
Figure C-1(Optional) Installation bracket for 380V 1.5–315kW and 660V 22–630kW models

Appendix C Dimension drawings

Opening sizes for installing the keypad without a braket
Installation dimensions
