Keypad Operation Procedure

5.1 What this chapter contains

This chapter contains following operation:
• Buttons, indicating lights and the screen as well as the methods to inspect, modify and
set function codes by keypad
• Start-up

5.2 Keypad

The keypad is used to control Goodrive200L series inverters, read the state data and adjust
parameters.
Note: The keypad of 0.75~15kW as show in Fig 5-1 A, and 18.5~500kW as show in Fig 5-1
B; The inverters of 0.75~30kW can choose optional LED keypad and 0.75~500kW can
choose optional LCD keypad . The LCD keypad supports several languages, parameters
copy, high-definition display and its installation dimension is compatible with the LED.
Use strew or installation bracket to fix the external keypad. The inverters of 0.75~30kW have
standard bracket, while the inverters of 37~500kW have optimal bracket.
No. Name
State
1
LED
A

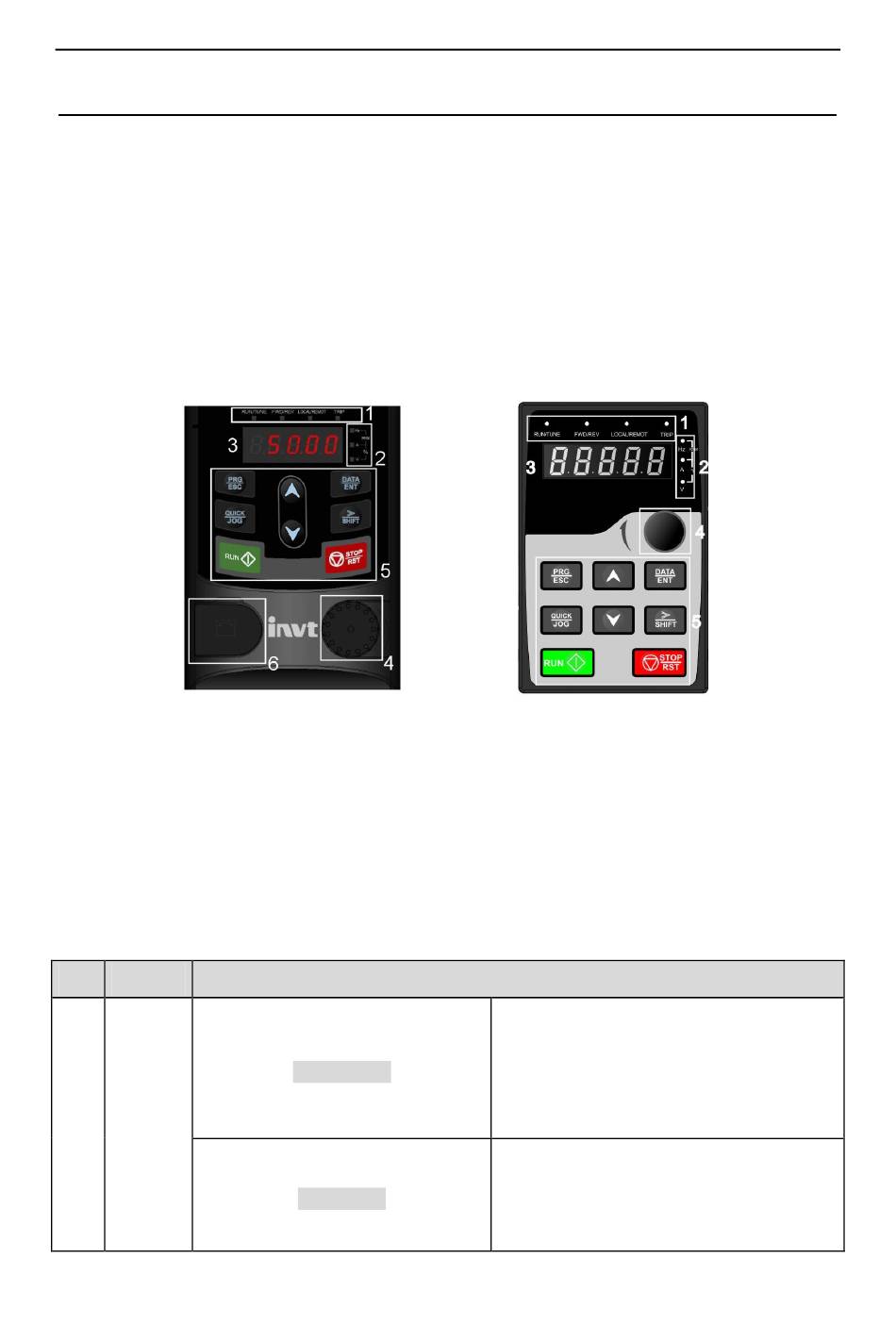

Fig 5-1 Keypad
RUN/TUNE
FWD/REV
25
Keypad operation procedure
B
Description
LED off means that the inverter is in the
stopping state; LED blinking means the
inverter is in the parameter autotune
state; LED on means the inverter is in
the running state.
FED/REV LED
LED off means the inverter is in the
forward rotation state; LED on means
the inverter is in the reverse rotation
5
