a. Vertical installation

4.2.3 Installation method

There are three kinds of installation modes based on different VFD dimensions.

Wall mounting: applicable to 380V 315kW and lower models, and 660V 355kW and lower models

Flange mounting: applicable to 380V 200kW and lower models, and 660V 220kW and lower
models

Floor mounting: applicable to 380V 220–500kW and 660V 250–630kW models
1. Mark the installation hole positions. For details about the installation hole positions, see Appendix
D Dimensions.
2. Mount the screws or bolts onto the designated positions.
3. Lean the VFD against the wall.
4. Tighten the screws.
Note:

When the flange mounting method is used, the (optional part) flange mounting plate is required
NG
b. Horizontal installation

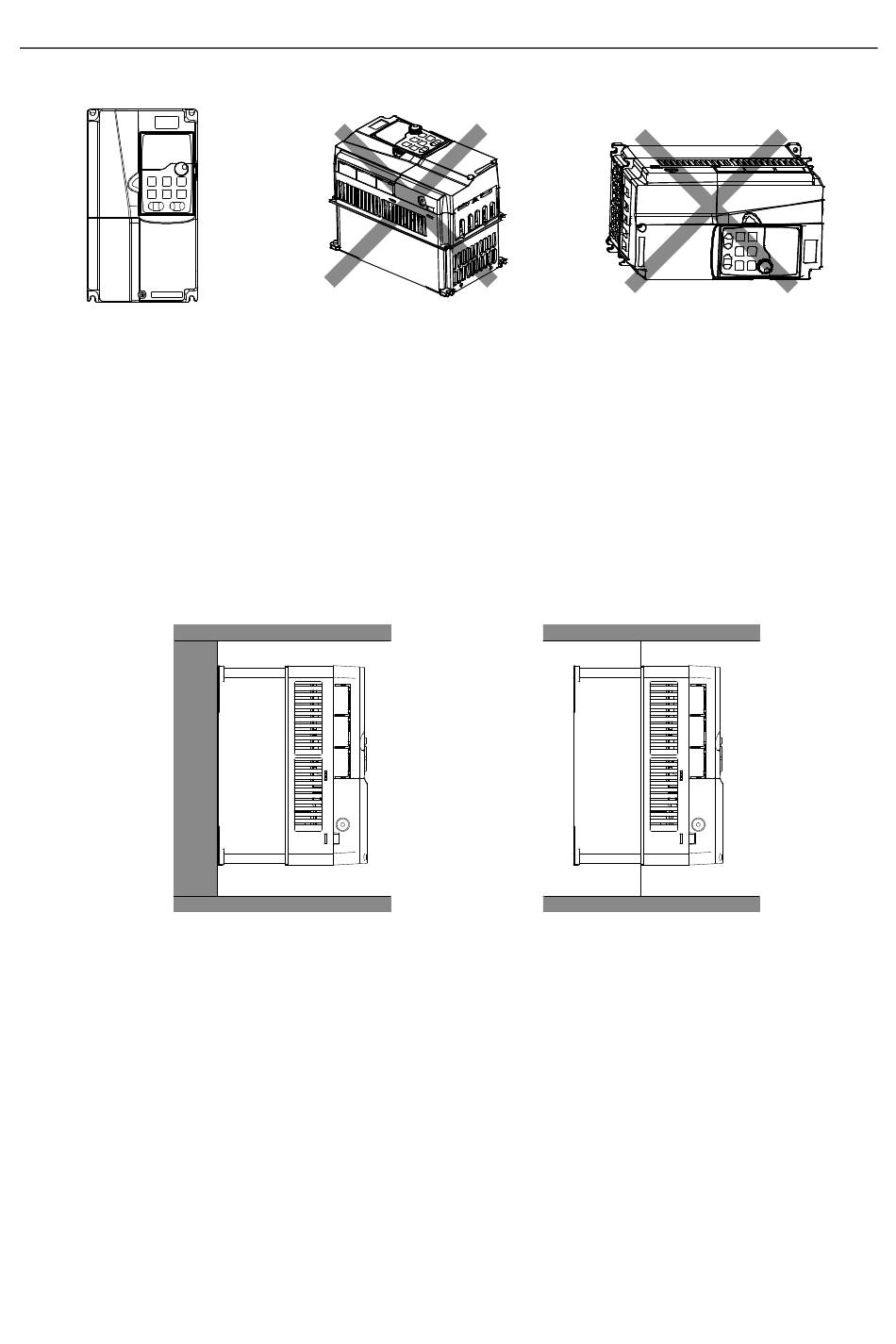

Figure 4-1 VFD installation direction
Wall mounting
Figure 4-2 Installation mode
-22-
Installation guidelines
NG
c. Lateral installation
Flange mounting
