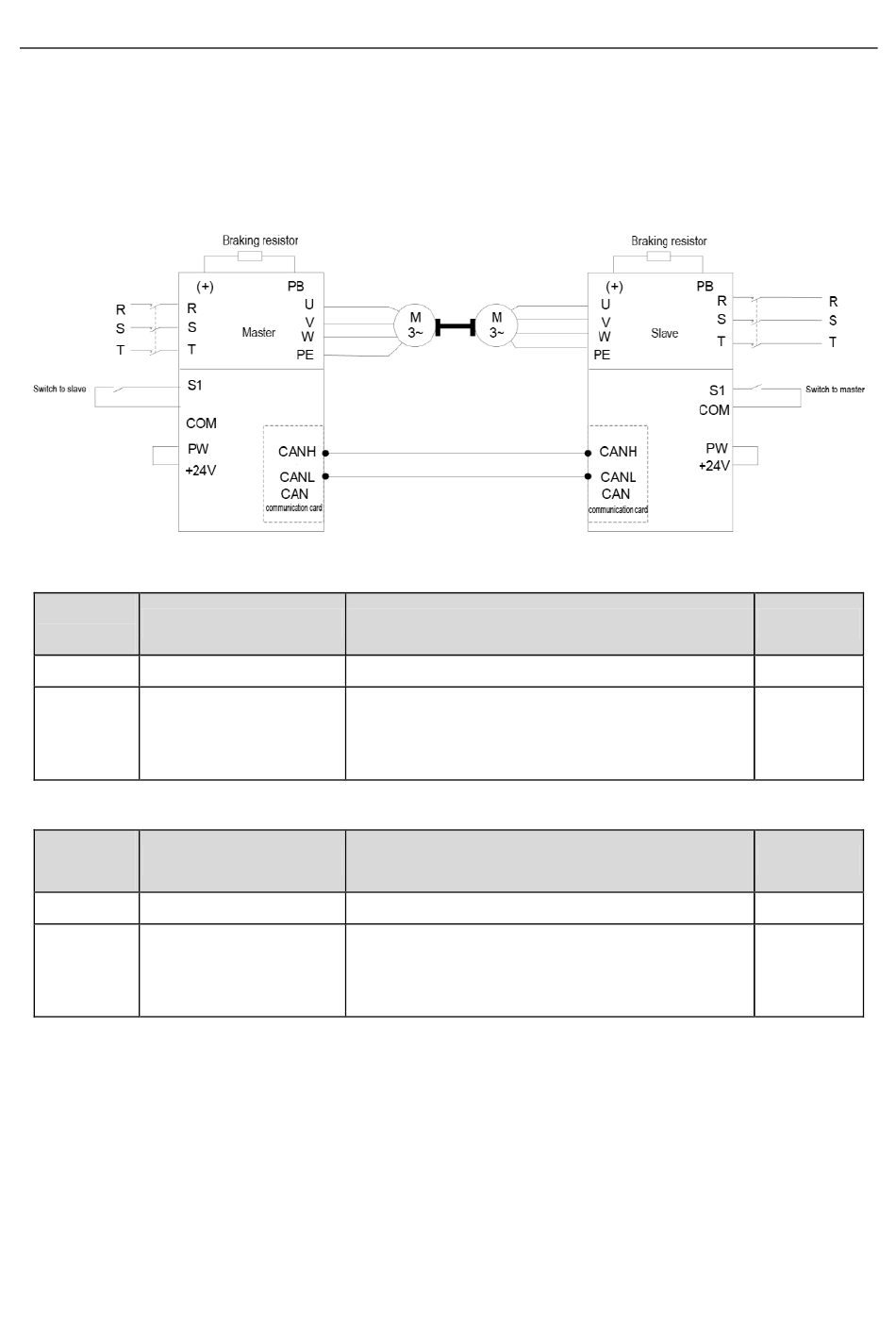

example, S1) terminal of the slave to 71. Enable the S1 terminal of the master to make the master
working as the slave. Enable the S1 terminal of the slave to make the slave working as the master. If
different parameters need to be set for the master and slave, you can set P90.03.
Note: Refer to section 5.13.4 Macro parameters to set master and slave parameters. The
following mainly describes the master/slave switchover.
Master parameters:
Function
code
P05.01 Function of S1
Method for terminals to
P90.03 switch application
Slave parameters:
Function
code
P05.01 Function of S1
Method for terminals to
P90.03 switch application
2. Motor and master/slave switchover work conditions
For example, in the lifting job of port crane, VFD 1 as the master drives lifting motor 1, while VFD 2 as
the slave drives lifting motor 2. After completing the lifting job, VFD 2 needs to drive the trolley motor
independently. At this time, the master/slave mode must be disabled for VFD 2, and the parameters of
lifting motor 2 and trolley motor must be switched also, while VFD 1 can still use the master/slave
mode.
Note: The power supply switchover of lifting motor 2 and trolley must be controlled by the
PLC.
Name
72: Switch to the slave
3: Switch from the master to the slave
macros
Name
71: Switch to the master
4: Switch from the salve to the master
macros
Description
Description
