4.3 Standard wiring of the main circuit

4.3.1 Wiring diagram of the main circuit

3PH power
380V±15%
50/60Hz
3PH power
380V±15%
50/60Hz

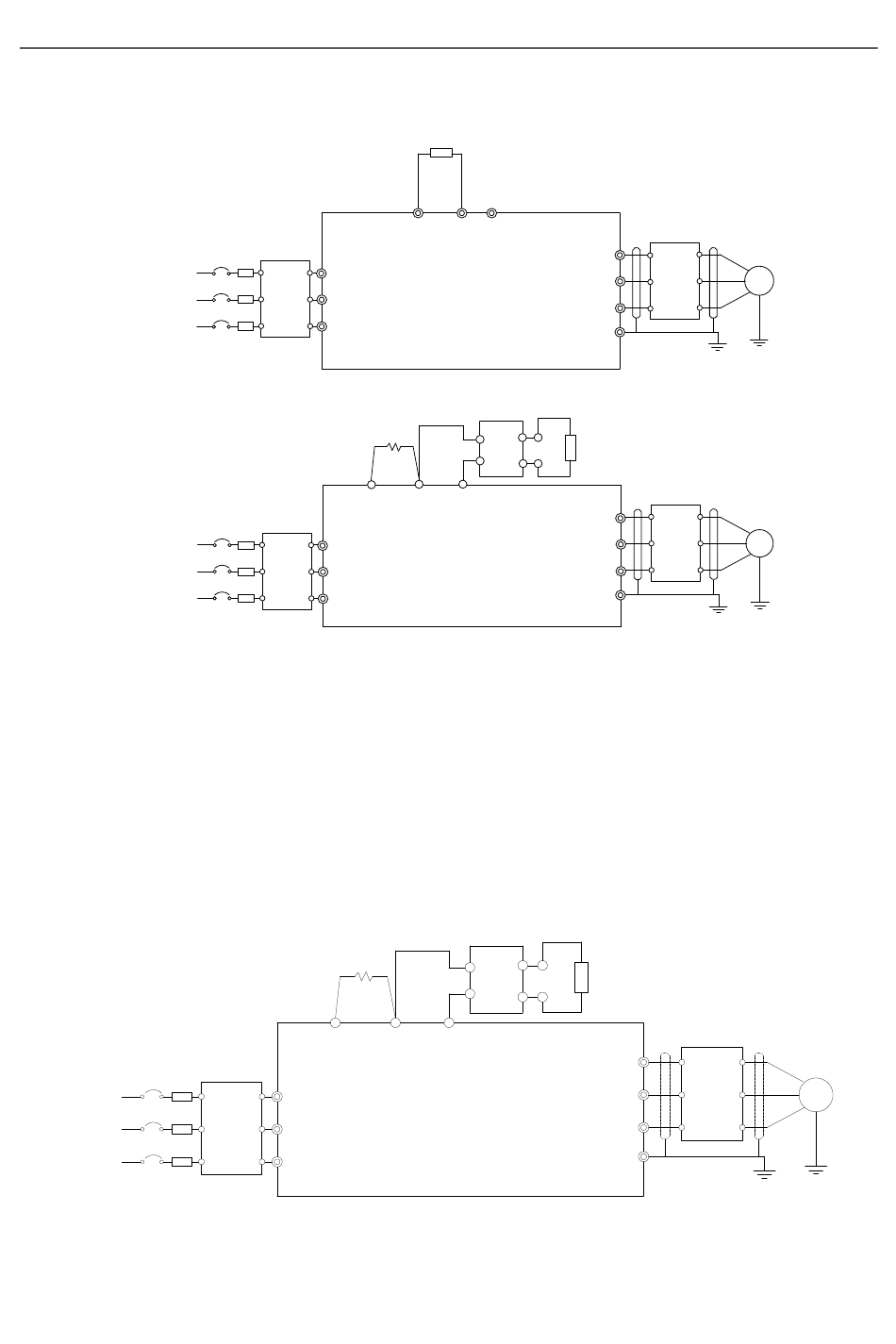

Figure 4-7 Main circuit wiring diagram for AC 3PH 380V(-15%)–440V(+10%)
Note:

The fuse, DC reactor, braking unit, braking resistor, input reactor, input filter, output reactor and
output filter are optional parts. For details, see Appendix D Optional peripheral accessories.

P1 and (+) have been short connected by default for the 380V 132kW and higher VFD models. If
you need to connect to an external DC reactor, take off the short-contact tag of P1 and (+).

Before connecting the braking resistor, remove the yellow warning label with PB, (+) and (-) from
the terminal block; otherwise, poor contact may occur.
3PH power
660V±15%
50/60Hz
Fuse
Figure 4-8 Main circuit wiring diagram for AC 3PH 520V(-15%)–690V(+10%)
R
Input
VFD models of 110kW
reactor
S
Input
filter
T
Fuse
DC reactor
P1
Input
R
VFD models of 132kW
reactor
S
Input
filter
T
Fuse
DC reactor
(+)
P1
R
Input
VFDs of 22kW and higher
reactor
S
Input
filter
T
Braking resistor
（+） PB （-）
and lower
Braking unit
DC+
DC-
（+） （-）
and higher
Braking unit
DC+
DC-
(-)
