Structure - INVT Goodrive350-19 Series Operation Manual

Goodrive350-19 series VFD for crane
VFD model
GD350-19-400G-6
GD350-19-450G-6
GD350-19-500G-6
GD350-19-560G-6
GD350-19-630G-6
Note:

The input current of the 22–350kW VFD models is measured in cases where the input voltage is
660V without DC reactors and input/output reactors.

The input current of the 400–630kW VFD models is measured in cases where the input voltage is
660V and there are input reactors.

The rated output current is the output current when the output voltage is 660V.

Within the allowable input voltage range, the output current/power cannot exceed the rated
output current/power.

3.7 Structure

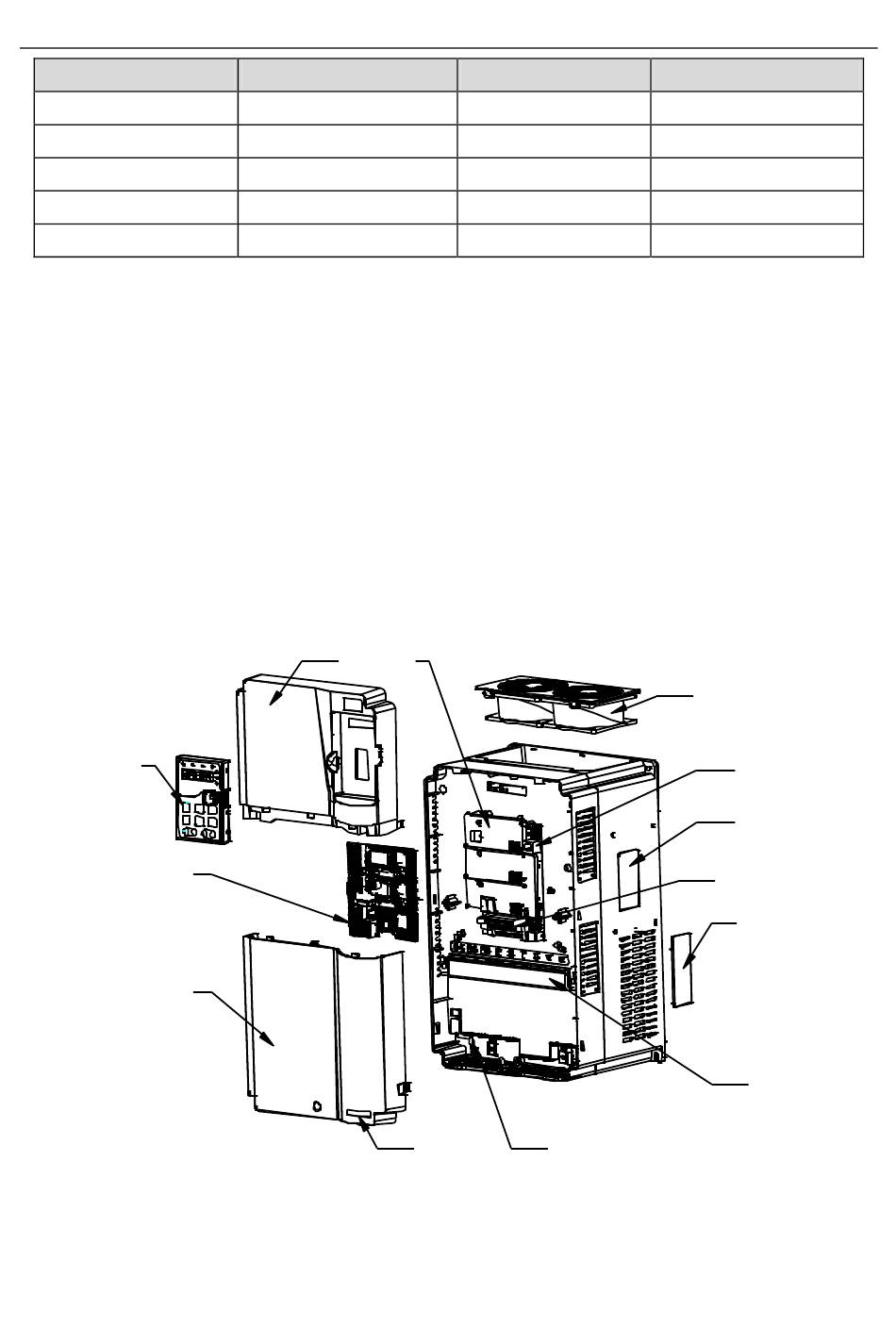

The VFD structure is shown in the following figure (taking the 380V 30kW VFD model as an example).
2
4
3
Output power (kW)
400
450
500
560
630
1
5
13
Figure 3-7 Structure diagram
-18-
Input current (A)
411
445
518
578
655
12
Product overview
Output current (A)
430
465
540
600
680
6
7
8
9
10
11
