Goodrive350-19 series VFD for crane
for the 380V 1.5–75kW VFD models but not required for the 380V 90–200kW and 660V
22–220kW VFD models.

The 380V 220–315kW and 660V 250–355kW VFD models support the (optional part) installation
base, which can house an input AC reactor (or DC reactor) and an output AC reactor.

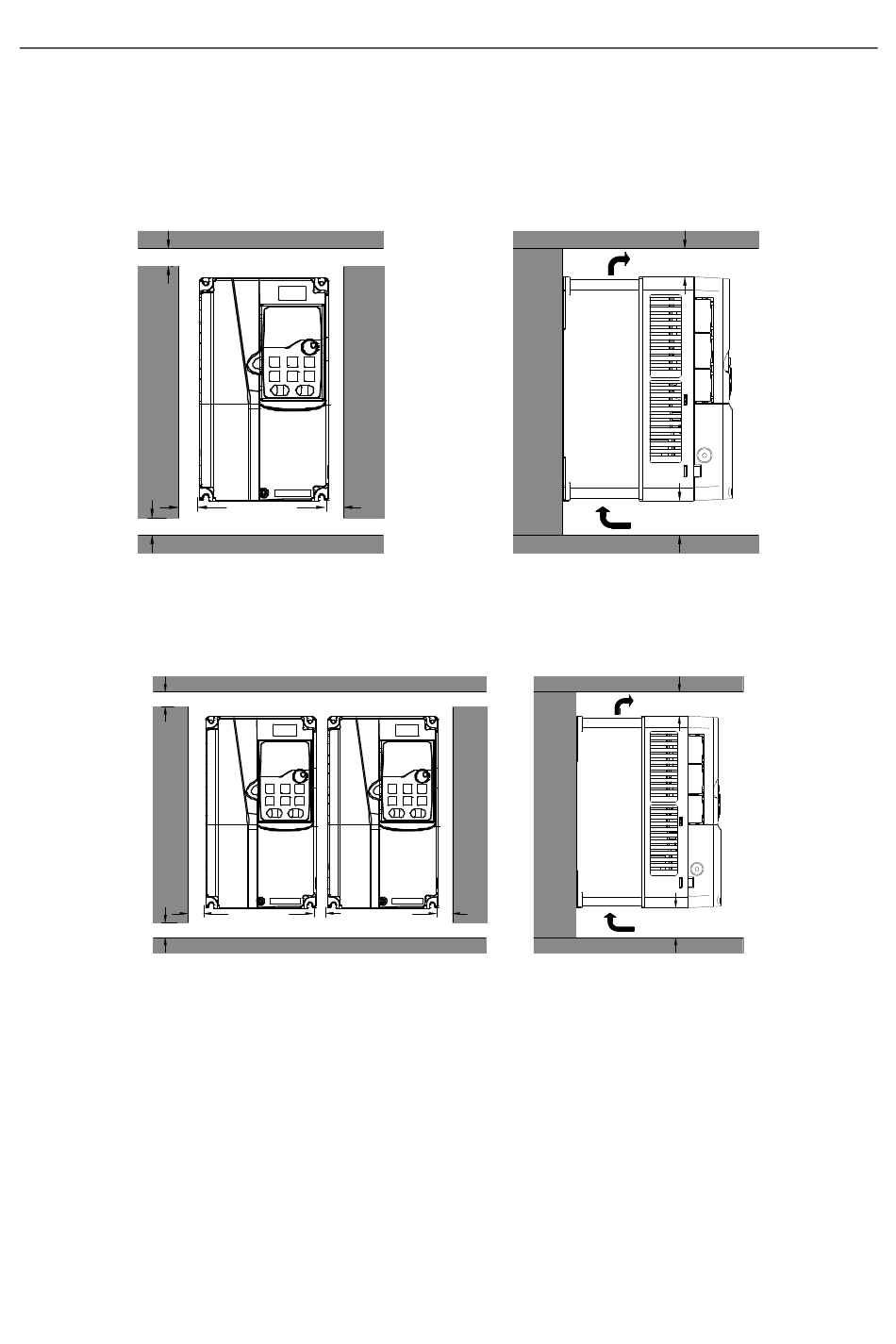

4.2.4 Installing one VFD

A
B
A
Note: For clearances B and C, each must be 100mm at least.

4.2.5 Installing multiple VFDs

A
B
A
Note:

When you install VFDs in different sizes, align the top of each VFD before installation for the
convenience of future maintenance.

For clearances B, D, and C, each must be 100mm at least.
B
Figure 4-3 Installing one VFD
D
B
Figure 4-4 Parallel installation
-23-
Installation guidelines
Hot air
C
C
Cold air
C
Hot air
C
Cold air
