Goodrive35 inverters
Chapter 5 Keypad operation procedure

5.1 What this chapter contains

This chapter contains following operation:
•
Buttons, indicating lights and the screen as well as the methods to inspect, modify and set
function codes by keypad

5.2 Keypad

The keypad is used to control Goodrive35 series inverters, read the state data and adjust parameters.
Note:
1. The LED keypad is standard but the LCD keypad which can support various languages,
parameters copy, 10-line displaying is optional and its installation dimension is compatible with the
LED keypad.
2. It is necessary to use M3 screw or installation bracket to fix the external keypad. The installation
bracket for inverters of 380 V 1.5 – 30 kW is optional but it is standard for the inverters of 380 V 37 –
500 kW and the inverters of 660 V.
No. Name
1 State LED

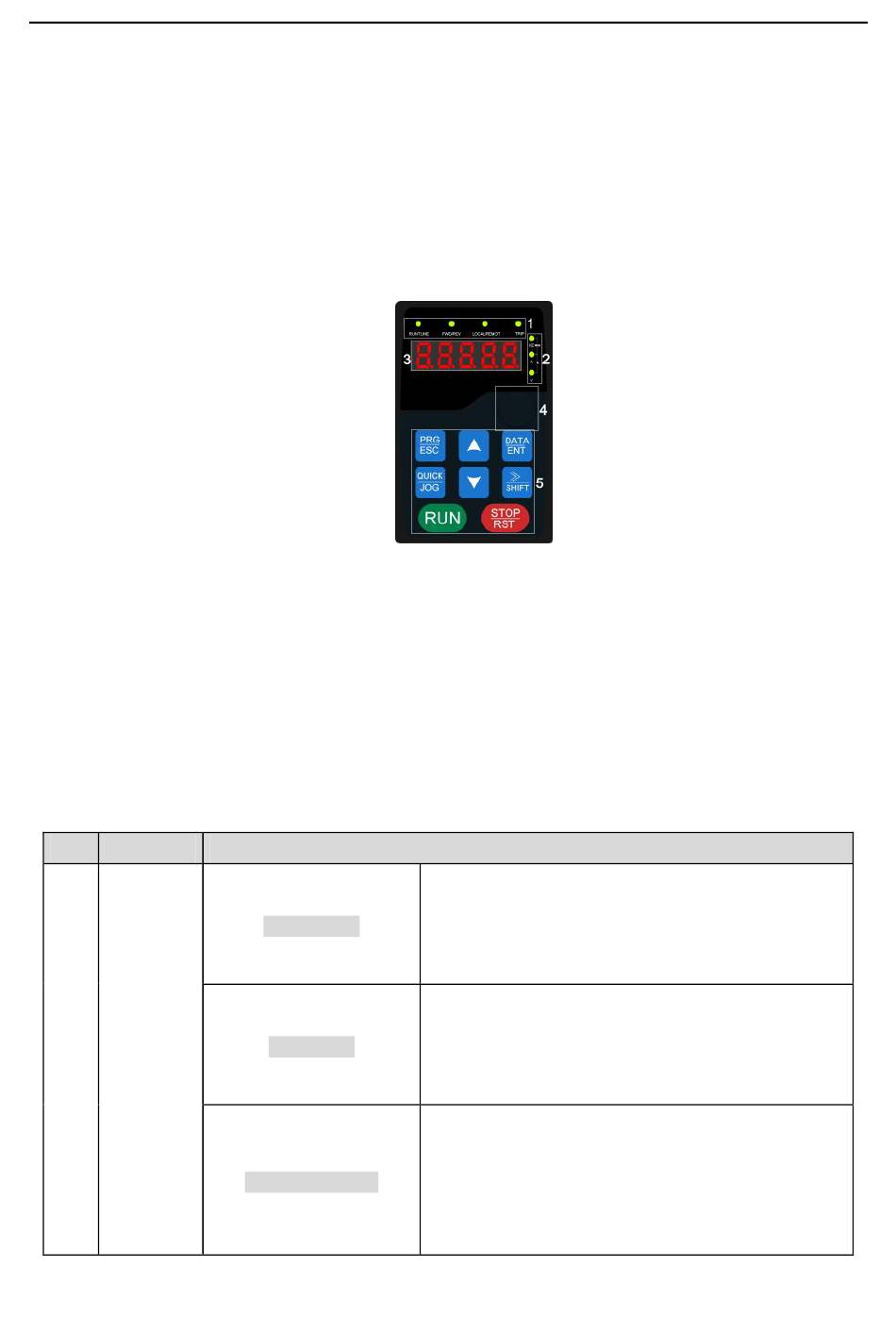

Fig 5-1 Keypad
RUN/TUNE
FWD/REV
LOCAL/REMOT
Description
LED off means that the inverter is in the stopping
state; LED blinking means the inverter is in the
parameter autotune state; LED on means the
inverter is in the running state.
FED/REV LED
LED off means the inverter is in the forward
rotation state; LED on means the inverter is in the
reverse rotation state
LED for keypad operation, terminals operation and
remote communication control
LED off means that the inverter is in the keypad
operation state; LED blinking means the inverter is
in the terminals operation state; LED on means the
37
Keypad operation procedure
