Goodrive350-19 series VFD for crane
Category Symbol
RO4C
A.5 Communication cards

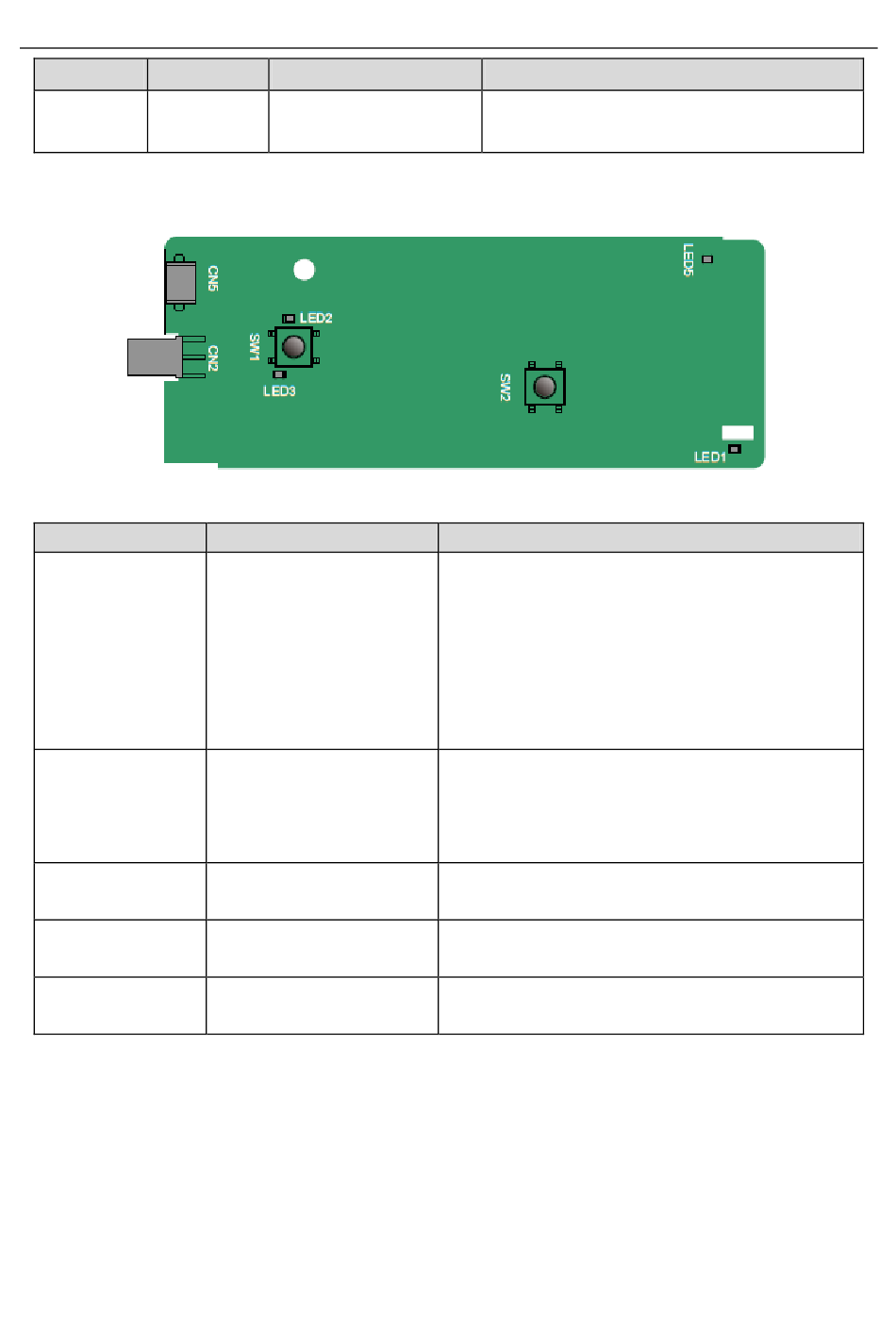

A.5.1 Bluetooth communication card (EC-TX501) and WIFI communication card (EC-TX502)
Definition of indicators and function keys:
Indicator
LED1/LED3
LED2
LED5
SW1
SW2
The wireless communication card is especially useful for scenarios where you cannot directly use the
keypad to operate the VFD due to the restriction of the installation space. With a mobile phone APP,
you can operate the VFD in a maximum distance of 30 m. You can choose a PCB antenna or an
external sucker antenna. If the VFD is located in an open space and is a molded case machine, you
can use a built-in PCB antenna; and if it is a sheetmetal machine and located in a metal cabinet, you
need to use an external sucker antenna.
When installing a sucker antenna, install a wireless communication card on the VFD first, and then
Terminal
Common contact of
relay 4
Definition
Bluetooth/WIFI status
indicator
Bluetooth communication
status indicator
Power indicator
WIFI factory reset button
WIFI hardware reset
button
This indicator is on when the expansion card is
establishing a connection with the control board; it
blinks periodically after the expansion card is
properly connected to the control board (the
period is 1s, on for 0.5s, and off for the other
0.5s); and it is off when the expansion card is
disconnected from the control board.
This indicator is on when the communication card
is online and data exchange can be performed.
It is off when the Bluetooth communication card is
not in the online state.
It is off when Bluetooth communication is not in
the online state.
It is restored to default values and returned to the
local monitoring mode.
It is used to reboot the expansion card.
-445-
Expansion card
Description
Function
