RM0090

Figure 99. Counter timing diagram, update event when repetition counter

Center-aligned mode (up/down counting)
In center-aligned mode, the counter counts from 0 to the auto-reload value (content of the
TIMx_ARR register) – 1, generates a counter overflow event, then counts from the auto-
reload value down to 1 and generates a counter underflow event. Then it restarts counting
from 0.
Center-aligned mode is active when the CMS bits in TIMx_CR1 register are not equal to
'00'. The Output compare interrupt flag of channels configured in output is set when: the
counter counts down (Center aligned mode 1, CMS = "01"), the counter counts up (Center
aligned mode 2, CMS = "10") the counter counts up and down (Center aligned mode 3,
CMS = "11").
In this mode, the DIR direction bit in the TIMx_CR1 register cannot be written. It is updated
by hardware and gives the current direction of the counter.
The update event can be generated at each counter overflow and at each counter underflow
or by setting the UG bit in the TIMx_EGR register (by software or by using the slave mode
controller) also generates an update event. In this case, the counter restarts counting from
0, as well as the counter of the prescaler.

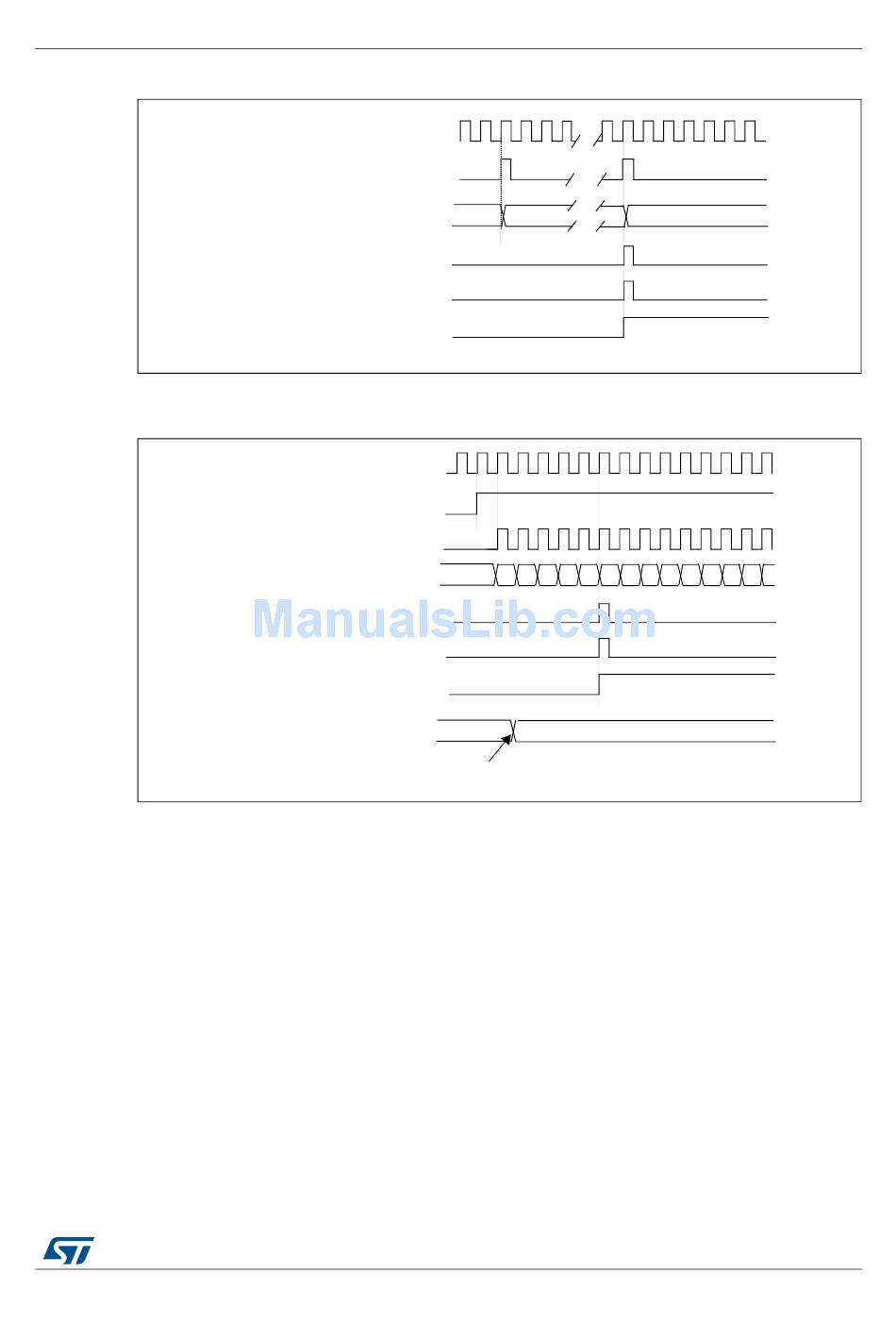

Figure 98. Counter timing diagram, internal clock divided by N

CK_PSC
Timer clock = CK_CNT
Counter register
Counter underflow
Update event (UEV)
Update interrupt flag (UIF)
CK_PSC
Timer clock = CK_CNT
Counter register
Counter underflow
Update event (UEV)
Update interrupt flag (UIF)
Auto-reload register
Write a new value in TIMx_ARR
DocID018909 Rev 11
Advanced-control timers (TIM1&TIM8)
20 1F

is not used

CEN
05 04 03 02 01 00
FF
00 36
36 35 34 33 32 31 30 2F
36
521/1731
