Figure 211. Counter timing diagram, update event when ARPE=1 (TIMx_ARR
20.3.3

Clock source

The counter clock is provided by the Internal clock (CK_INT) source.
The CEN (in the TIMx_CR1 register) and UG bits (in the TIMx_EGR register) are actual
control bits and can be changed only by software (except for UG that remains cleared
automatically). As soon as the CEN bit is written to 1, the prescaler is clocked by the internal
clock CK_INT.
Figure 212
without prescaler.

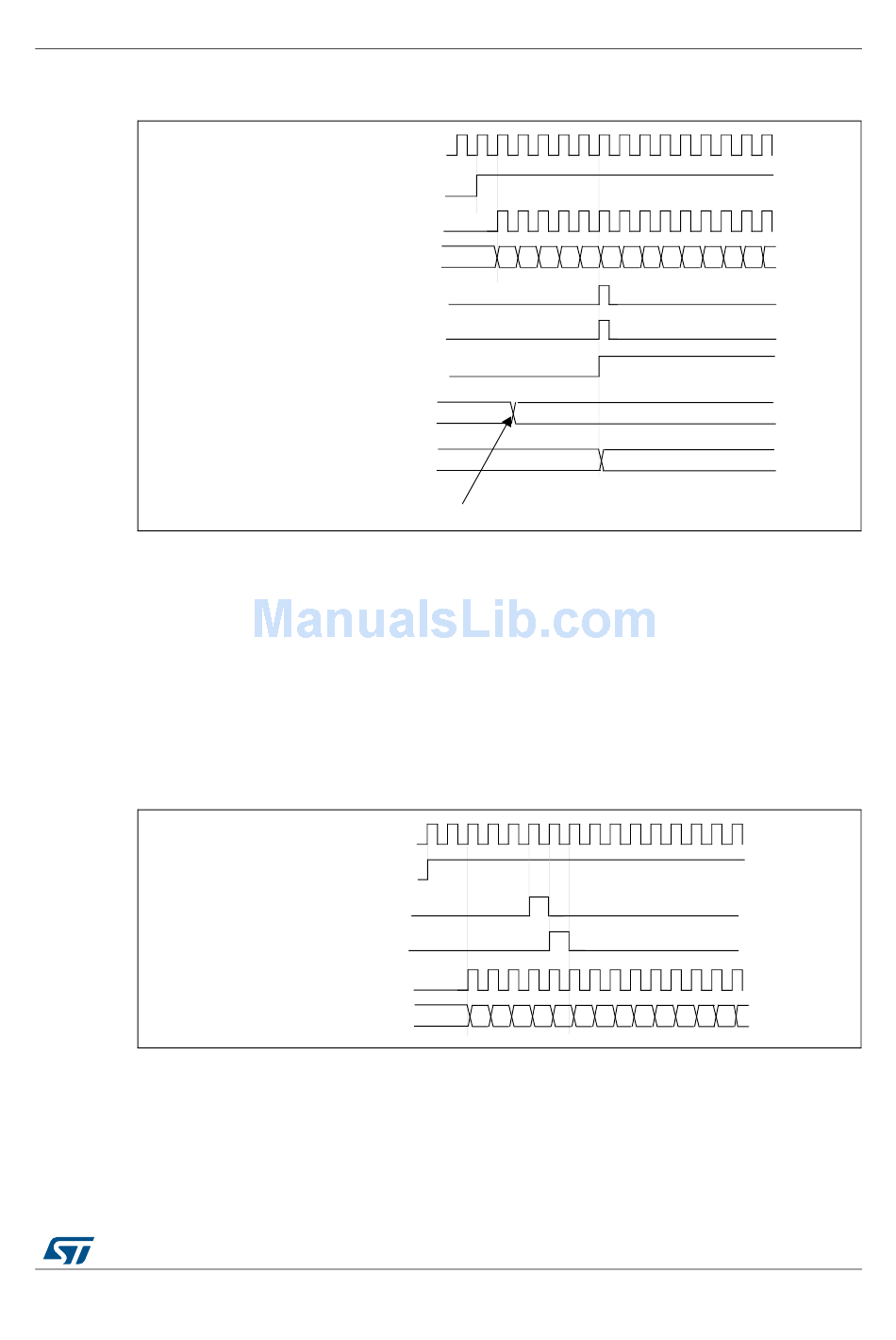

Figure 212. Control circuit in normal mode, internal clock divided by 1

Counter clock = CK_CNT = CK_PSC
20.3.4 Debug mode
When the microcontroller enters the debug mode (Cortex
TIMx counter either continues to work normally or stops, depending on the
DBG_TIMx_STOP configuration bit in the DBG module. For more details, refer to
Section 38.16.2: Debug support for timers, watchdog, bxCAN and
CK_PSC
CNT_EN
Timer clock = CK_CNT
Counter register
Counter overflow
Update event (UEV)
Update interrupt flag (UIF)
Auto-reload preload register
Auto-reload shadow register
Write a new value in TIMx_ARR
shows the behavior of the control circuit and the upcounter in normal mode,
CK_INT
CEN=CNT_EN
UG
CNT_INIT
Counter register
DocID018909 Rev 11

preloaded)

F0 F1 F2 F3 F4 F5
F5
F5
31 32 33 34 35 36 00 01 02 03 04 05 06 07
®
-M4 with FPU core - halted), the
Basic timers (TIM6&TIM7)
00 01 02 03 04 05 06 07
36
36
I2C.
