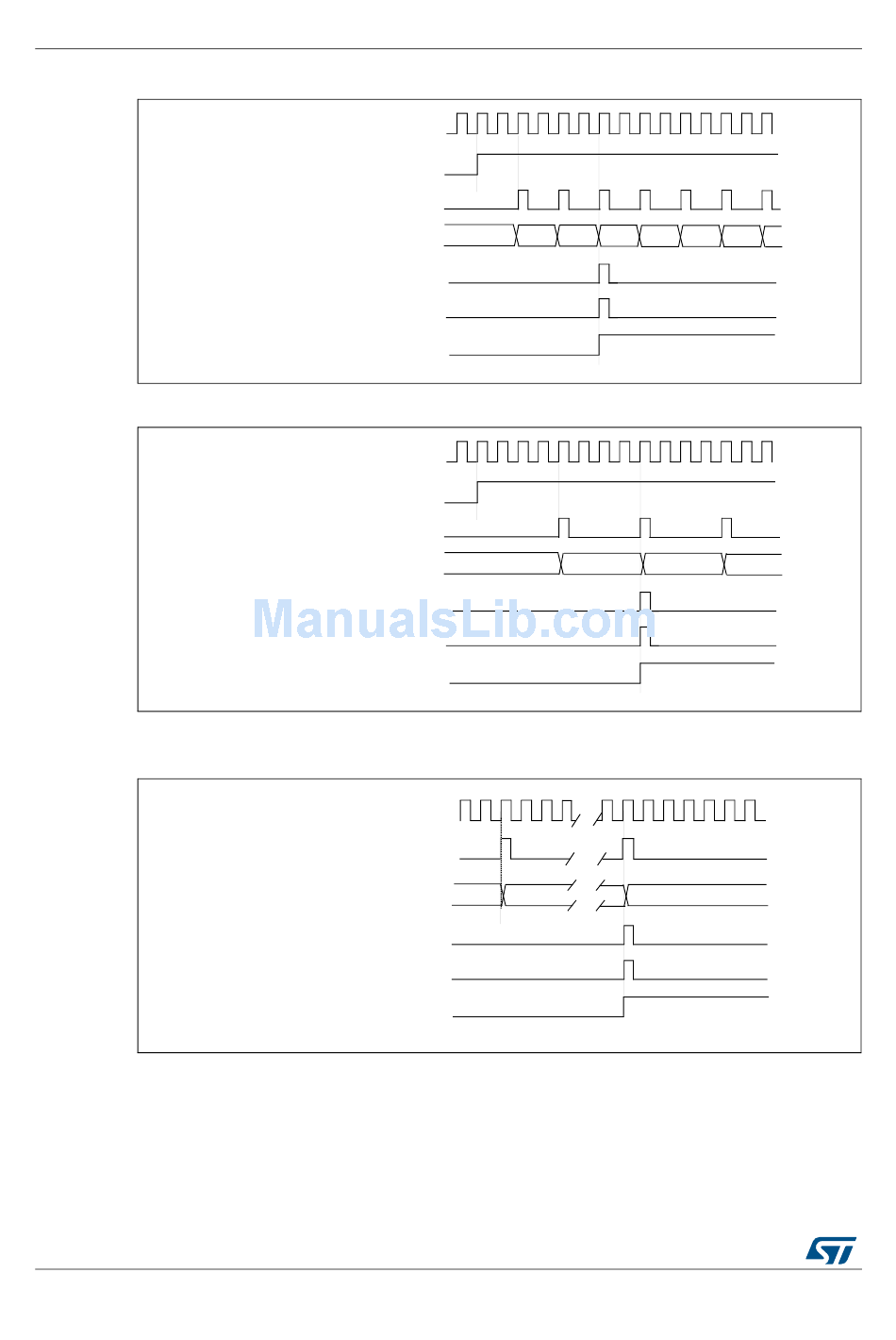

Figure 149. Counter Timing Diagram, Internal Clock Divided By 2; Figure 150. Counter Timing Diagram, Internal Clock Divided By 4, Timx_Arr=0X36; Figure 151. Counter Timing Diagram, Internal Clock Divided By N - STMicroelectronics STM32F405 Reference Manual

General-purpose timers (TIM2 to TIM5)

Figure 150. Counter timing diagram, internal clock divided by 4, TIMx_ARR=0x36

1. Center-aligned mode 2 or 3 is used with an UIF on overflow.
592/1731

Figure 149. Counter timing diagram, internal clock divided by 2

CK_INT
CNT_EN
TImer clock = CK_CNT
Counter register
Counter underflow
Update event (UEV)
Update interrupt flag (UIF)
CK_INT
CNT_EN
Timer clock = CK_CNT
Counter register
Counter overflow (cnt_ovf)
Update event (UEV)
Update interrupt flag (UIF)

Figure 151. Counter timing diagram, internal clock divided by N

CK_INT
Timer clock = CK_CNT
Counter register
Counter underflow
Update event (UEV)
Update interrupt flag (UIF)
