Embedded Flash memory interface

3.1

Introduction

The Flash memory interface manages CPU AHB I-Code and D-Code accesses to the Flash
memory. It implements the erase and program Flash memory operations and the read and
write protection mechanisms.
The Flash memory interface accelerates code execution with a system of instruction
prefetch and cache lines.
3.2

Main features

•
Flash memory read operations
•
Flash memory program/erase operations
•
Read / write protections
•
Prefetch on I-Code
•
64 cache lines of 128 bits on I-Code
•
8 cache lines of 128 bits on D-Code
Figure 3

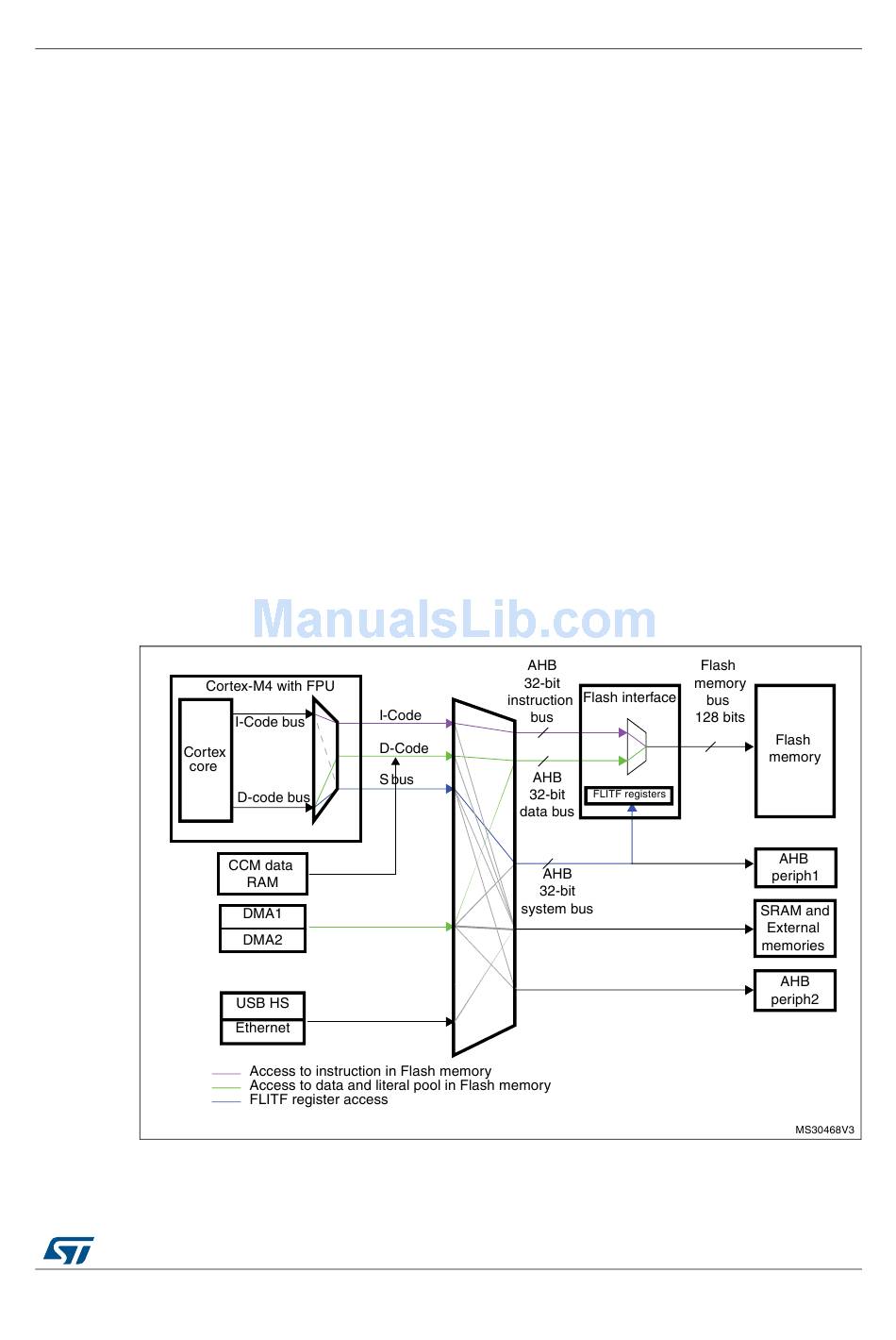

Figure 3. Flash memory interface connection inside system architecture
shows the Flash memory interface connection inside the system architecture.
(STM32F405xx/07xx and STM32F415xx/17xx)
