RM0090

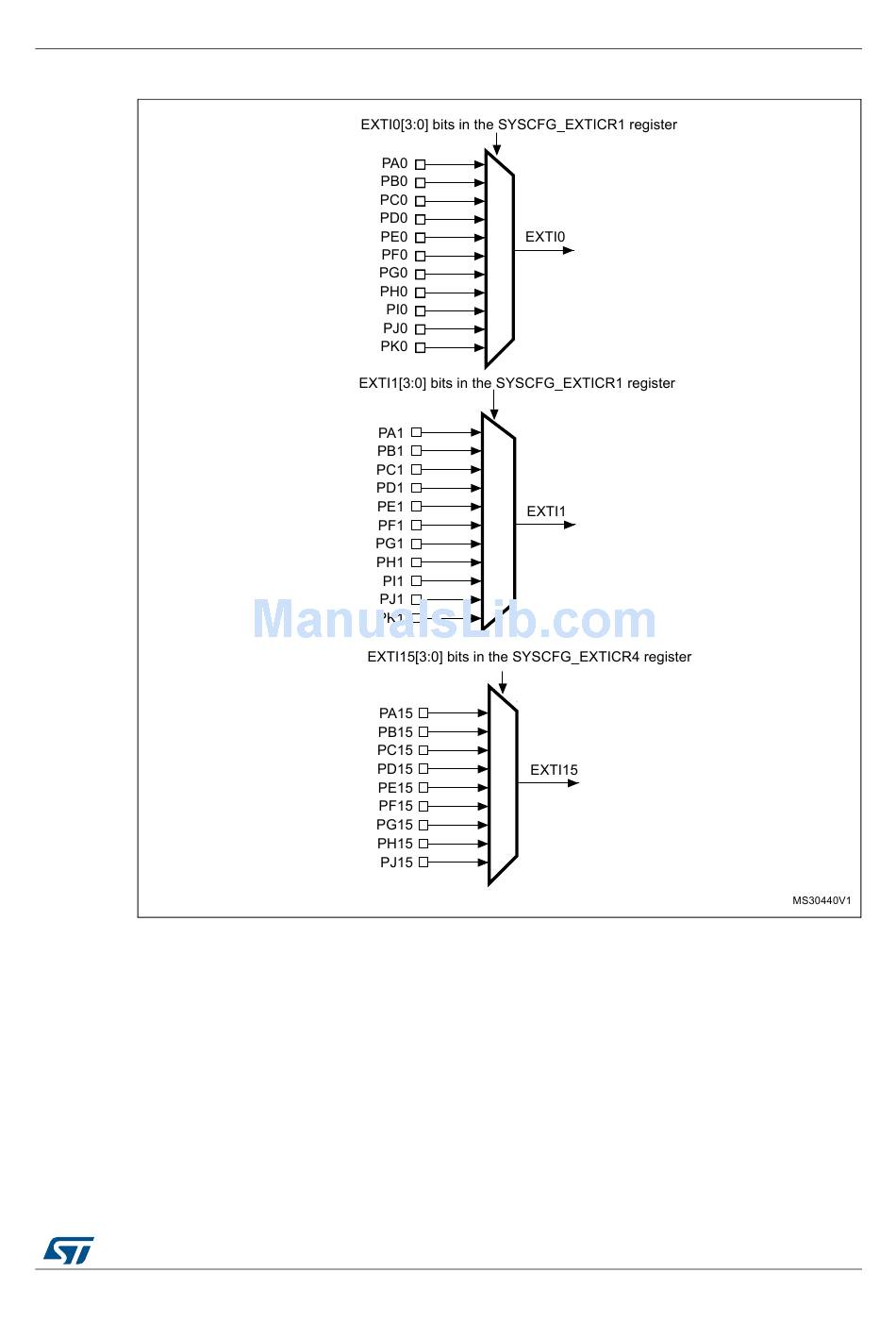

Figure 43. External interrupt/event GPIO mapping (STM32F42xxx and STM32F43xxx)

The seven other EXTI lines are connected as follows:
• EXTI line 16 is connected to the PVD output
•
EXTI line 17 is connected to the RTC Alarm event
• EXTI line 18 is connected to the USB OTG FS Wakeup event
•
EXTI line 19 is connected to the Ethernet Wakeup event
• EXTI line 20 is connected to the USB OTG HS (configured in FS) Wakeup event
•
EXTI line 21 is connected to the RTC Tamper and TimeStamp events
• EXTI line 22 is connected to the RTC Wakeup event
DocID018909 Rev 11
Interrupts and events
385/1731
389
