Cryptographic processor (CRYP)
1. K: key; C: cipher text; I: input block; O: output block; P: plain text.
1. K: key; C: cipher text; I: input block; O: output block; P: plain text.
716/1731

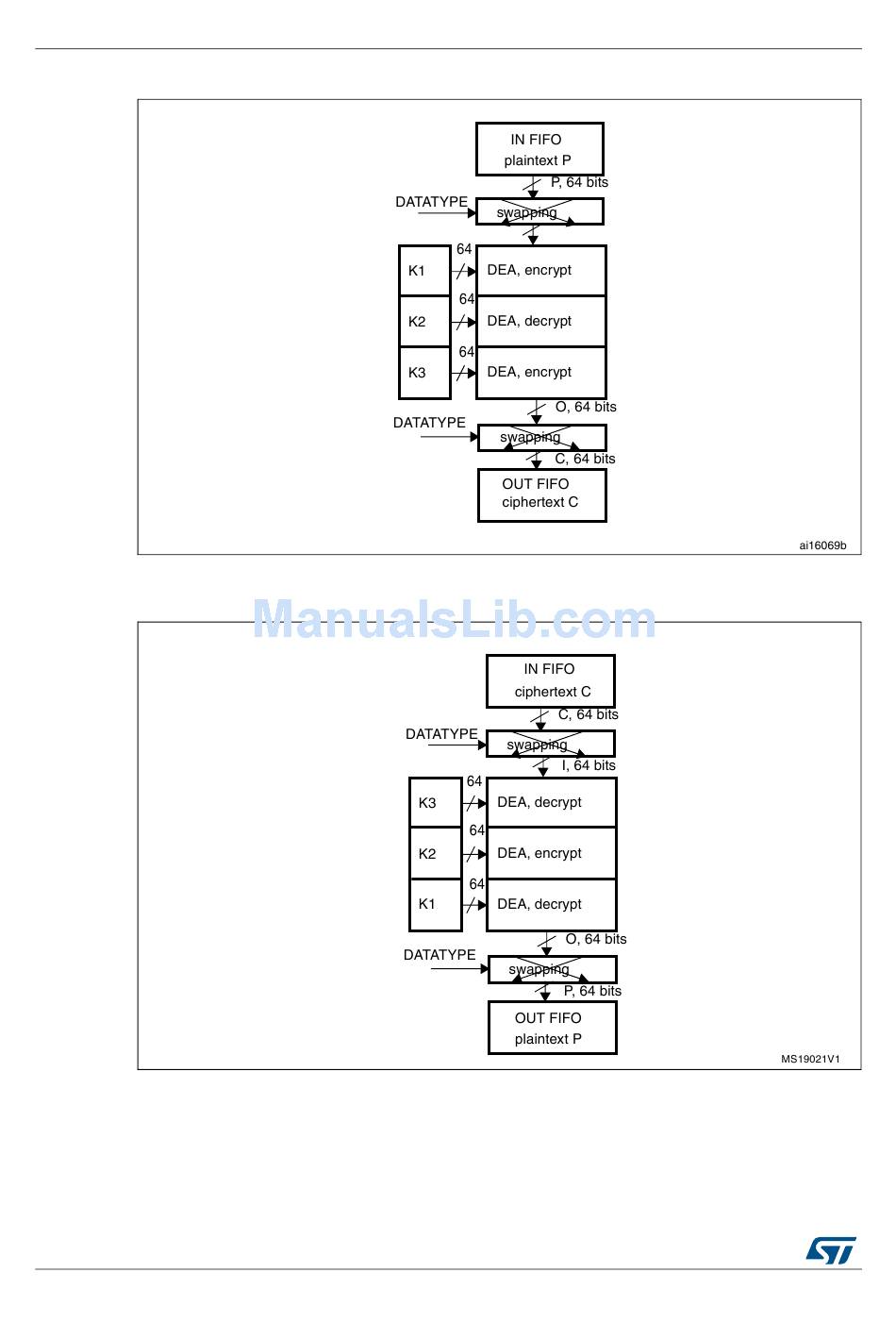

Figure 218. DES/TDES-ECB mode encryption

Figure 219. DES/TDES-ECB mode decryption

DocID018909 Rev 11
RM0090
