Operating concept of the SX servers

2.2.1 Operation with integrated console

The entry-level models are operated from an integrated console with screen, keyboard and
touchpad installed in a rack.
The console is a Solaris console device on which the messages of the Solaris and the
X2000 carrier system can be monitored when starting up the server (e.g. after switching
on). This therefore gives you access to the OpenBoot PROM.
The console also provides the user interface for all the required functions after starting up
the server. The individual functions are described in detail in the
SX server entry-level models" on page

2.2.2 Operation with a LAN console and remote console adapter

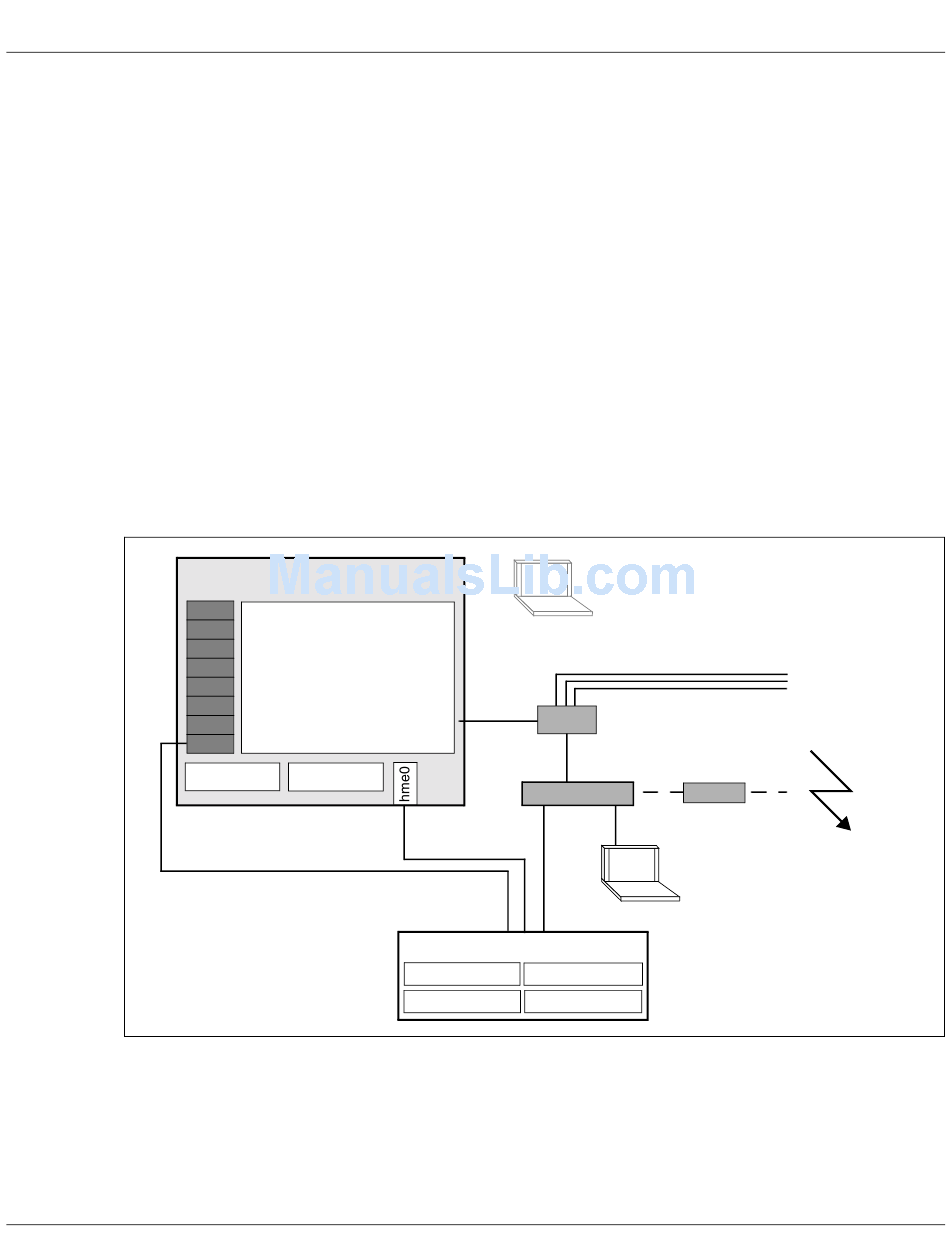

The figure below shows an operating concept for an entry-level model with a LAN console
and a remote console adapter:
BS2000 ZASLAN
Customer LAN

Figure 5: Example of an operating concept for an entry-level model

As an alternative to the integrated console on entry-level SX series servers, you can use a
LAN console together with a V24/Ethernet converter, the remote console adapter (RCA).
U41272-J-Z385-3-76
SX100
PCI
BS2000
OSD/XC
LAN
DAT
DVD
SX server entry-level models (without SMC)
125.
Integrated Console
(except operation)
V24
RCA
tty a
LAN Console
SOLARIS / X2000
PC
X-Server Browser
SINIX-TE opt. 9750-Emu.
chapter "Functions of the
other SX100-/
PRIMEPOWER-/
RM servers
Teleservicegate V24
Modem
15
