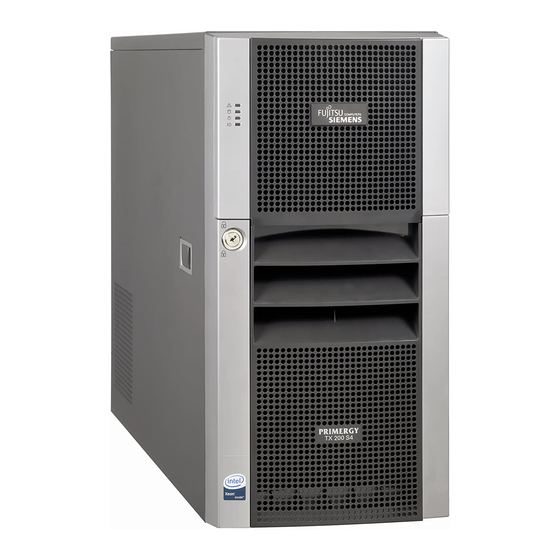

PRIMERGY TX200 S4 Server
Options Guide
Edition April 2008

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PRIMERGY TX200 S4 and is the answer not in the manual?

Questions and answers

Related Manuals for Fujitsu Siemens Computers PRIMERGY TX200 S4

Summary of Contents for Fujitsu Siemens Computers PRIMERGY TX200 S4

  • Page 1 PRIMERGY TX200 S4 Server Options Guide Edition April 2008...

  • Page 2: Copyright And Trademarks

    Gesellschaft für Technik-Dokumentation mbH www.cognitas.de Copyright and Trademarks Copyright © 2008 Fujitsu Siemens Computers GmbH. All rights reserved. Delivery subject to availability. The right to technical modification is reserved. All hardware and software names used are trade names and/or trademarks of their respective...

  • Page 3: Table Of Contents

    Contents Preface ......7 Concept and target groups ....7 Documentation overview .
  • Page 4 Contents Processors ......31 Installing a second processor ....31 Replacing the processor .
  • Page 5 Contents Completion ......85 13.1 System fans and traverse ....85 13.1.1 Installing the system fan 3 .

  • Page 7: Preface

    The installation and removal of the hot-plug components is described in the Operating Manual supplied with the server. Documentation overview More information on your PRIMERGY TX200 S4 can be found in the following documents: – “Quick Start Hardware - PRIMERGY TX200 S4” leaflet (only included as a printed copy) –...
  • Page 8 Documentation overview Preface – “PRIMERGY TX200 S4 Server Operating Manual” – “PRIMERGY TX200 S4 Server Options Guide” – “BIOS Setup V4.06 / FirstBIOS Desktop Pro V5.0 /TrustedCore V6.0” manual – “iRMCS2 - integrated Remote Management Controller” manual – "LSI SATA Software RAID User’s Guide"...

  • Page 9: Expansions And Conversions

    Preface Expansions and conversions Expansions and conversions Second processor The system board can be upgraded with a second processor. Only processors of the same type may be used on the system board. The second processor must have the same clock frequency as the first. Main memory expansion 6 slots (2 slots form a memory bank) are provided for the main memory.
  • Page 10 Expansions and conversions Preface Additional expansion cards in the PCI slots The system board offers seven PCI slots: – 2 x PCI-X slots(64 bit / 133 MHz IOOP – 4 x PCI-Express slots, Gen1, mechanical PCIe x8 – 1 x PCI-Steckplatz (32 Bit / 33 MHz) Performance Adapter SNR: S26361-D2504 The Performance Adapter combines two PCIe x4 slots to one PCIe x8 slot.

  • Page 11: Notational Conventions

    Preface Notational conventions Notational conventions The following notational conventions are used in this manual: Text in italics indicates commands or menu items. “Quotation marks” indicate names of chapters and terms that are being emphasized. Ê describes activities that must be performed in the order shown.

  • Page 13: Procedure

    Procedure CAUTION! ● The actions described in this manual should only be performed by technical specialists. Repairs to the device that do not relate to CSS failures must only be ● carried out by service personnel. Please note that unauthorized inter- ference with the system will void the warranty and exempt the manufacturer from all liability.

  • Page 15: Safety Instructions

    Safety instructions The following safety instructions are also provided in the manual “Safety notes and other important information”. This device meets the relevant safety regulations for IT equipment. If you have any questions about whether you can install the server in the intended environment, please contact your sales outlet or our customer service team.
  • Page 16 Safety instructions Before starting up CAUTION! ● During installation and before operating the device, observe the instructions on environmental conditions for your device. If the device is brought in from a cold environment, condensation may ● form both inside and on the outside of the device. Wait until the device has acclimatized to room temperature and is absolutely dry before starting it up.
  • Page 17 Safety instructions CAUTION! ● Ensure that the power sockets on the device and the grounded shock- proof sockets are freely accessible. The On/Off button or the main power switch (if present) does not ● isolate the device from the mains power supply. To disconnect it completely from the mains power supply, unplug all network power plugs from the grounded shockproof sockets.
  • Page 18 Safety instructions CAUTION! ● Proper operation of the system (in accordance with IEC 60950-1/ EN 60950-1) is only ensured if the casing is completely assembled and the rear covers for the installation slots have been fitted (electric shock, cooling, fire protection, interference suppression). ●...
  • Page 19 Safety instructions CAUTION! ● Only use CDs/DVDs that are in perfect condition in your server's CD/DVD drive, in order to prevent data loss, equipment damage and injury. ● Check each CD/DVD for damage, cracks, breakages etc. before inserting it in the drive. Note that any additional labels applied may change the mechanical properties of a CD/DVD and cause imbalance.
  • Page 20 Safety instructions Figure 1: ESD label When you handle components fitted with ESDs, you must always observe the following points: ● Switch off the system and remove the power plugs from the power outlets before installing or removing components with ESDs. You must always discharge static build-up (e.g.

  • Page 21: Preparation

    Preparation CAUTION! Follow the safety instructions in chapter “Safety instructions” on page 15 et seq.. Floorstand model 4.1.1 Opening the server Ê Exit all applications and shut down the server properly. Ê Press the On/Off button if the server has not been switched off by the operating system.

  • Page 22: Rack Model

    Rack model Preparation Rack model Ê Exit all applications and shut down the server properly. Ê Press the On/Off button if the server has not been switched off by the operating system. Ê Pull all power connectors out of the power outlets. 4.2.1 Opening the server Pulling the server out of the rack and opening the server...
  • Page 23 Preparation Rack model Figure 4: Loosening the screws in the rack cabinet Ê Loosen the screws (1+2) on the left and the right side at the rear side. CAUTION! At least two people are needed to lift the server out of the rack cabinet. Ê...

  • Page 24: System Fans And Traverse

    System fans and traverse Preparation System fans and traverse 4.3.1 Removing the system fan 1 Figure 5: Removing the system fan 1 Ê Disconnect the fan cable from the connector FAN1 SYS on the system board. Ê Push the lock (1) of the air duct inward. Ê...

  • Page 25: Removing The System Fan 2

    Preparation System fans and traverse 4.3.2 Removing the system fan 2 Figure 6: Removing the system fan 2 Ê Disconnect the fan cable from the connector FAN2 SYS on the system board. Ê Pull the lock (1) in direction of the traverse and swivel the system fan 2 up and out.

  • Page 26: Removing The System Fan 3

    System fans and traverse Preparation Ê Take the traverse with the memory air duct carefully out of the housing. 4.3.4 Removing the system fan 3 Ê Remove the system fan 1, the system fan 2 and the traverse. Figure 8: Removing the system fan 3 Ê...

  • Page 27: Main Memory

    FDB667/PC2-5300 fully buffered DIMM modules and must be populated in pairs. It is only allowed you use memory modules released by Fujitsu Siemens Computers. – Each pair must consist of identical memory modules. – The module capacity between pairs can differ: pair 1A/1B can be populated with two 512 Mbyte modules and pair 2A/2B with two 1 Gbyte modules.

  • Page 28: Expanding/Replacing The Main Memory

    Expanding/replacing the main memory Main memory The following table shows the prescribed equipping order: module pair 1A/1B module pair 2A/2B module pair 3A/3B (black) (blue) (blue) equipped empty empty equipped equipped empty equipped equipped equipped Expanding/replacing the main memory Ê Open the server, remove the system fan 1, the system fan 2 and the traverse as described in the chapter “Preparation”...
  • Page 29 Main memory Expanding/replacing the main memory Figure 11: Installing a memory module Ê Fold the assembly brackets outwards on both sides of the corresponding slot. Ê Carefully press the memory module into the slot (1) until the fastening tabs on both sides of it engage (2). Ê...

  • Page 31: Processors

    Processors CAUTION! Follow the safety instructions in chapter “Safety instructions” on page 15 et seq.. CAUTION! Processors are modules which can react extremely sensitively to electro- static discharges and which must therefore always be handled with care. After a processor has been removed from its protective sleeve or from its socket, place it with its smooth side down on a non-conducting, antistatic surface.
  • Page 32 Installing a second processor Processors Installing the processor and the heat sink Figure 12: Releasing the lever Ê Release the socket lever by pressing it sideways and pull it upward as far as it will go (1). Ê Open the cover (2). Figure 13: Inserting the second processor Ê...
  • Page 33 Processors Installing a second processor Figure 14: Fastening the second processor Ê Close the cover (1). Ê Push down the socket lever slowly (2) until it hooks in place (3). Ê Remove the plastic cover (4). Figure 15: Removing the protective cover Ê...
  • Page 34 Installing a second processor Processors Figure 16: Installing the heat sink Ê Place the heat sink on the processor socket. Ê Fasten the heat sink by tightening the four screws in a crossover pattern. CAUTION! Never install a processor without a heat sink and CPU fan as otherwise the processor may overheat, causing the processor and system board to fail.

  • Page 35: Replacing The Processor

    Processors Replacing the processor Replacing the processor CAUTION! Only processors of the same type may be used on the system board. The second processor must have at least the same clock frequency as the first processor. If the two processors have different clock frequencies, they both will operate with the lower clock frequency.
  • Page 36 Replacing the processor Processors Figure 18: Inserting a new processor Ê Position the new processor over the socket and thenplace it carefully into the socket (1). CAUTION! The processor can only be installed in one particular direction. Note the marking on one of the corners (a). To avoid damaging the processor, do not force it into the socket.

  • Page 37: Replacing The Heat Sink

    Processors Replacing the heat sink Ê Ensure a thin and even distribution of the thermal paste. Ê Place the heat sink on the processor socket (see page 34). Ê Fasten the heat sink by tightening the four screws in a crossover pattern. Ê...

  • Page 39: Accessible Drives And Lsp

    Accessible drives and LSP CAUTION! Follow the safety instructions in chapter “Safety instructions” on page 15 et seq.. Three 5.25-inch bays are available for accessible drives. In these bays you can install DVD/DVD-RW drives, magnetic tape drives, a multibay (slimline DVD and FDD/ServerView Local Service Panel) or a hard disks extension box.
  • Page 40 Installing an accessible 5.25-inch drive Accessible drives and LSP Figure 21: Removing the dummy module Ê Push the dummy module out of the bay frontward. CAUTION! Keep the dummy module for future use. If you remove the accessible drive again and do not replace it with a new one, the dummy module must be reinstalled to comply with EMC regulations and to satisfy cooling requirements and fire protection measures.
  • Page 41 Accessible drives and LSP Installing an accessible 5.25-inch drive Figure 22: Example cabling CD drive Ê Connect the data cable to the system board (see the cabling plans in the Appendix). Ê Close the server, connect it to the power outlet, and switch it on as described in the chapter “Completion”...

  • Page 42: Installing The Multibay

    Installing the multibay Accessible drives and LSP Installing the multibay Ê Open the server as described in the chapter “Preparation” on page 21 seq.. Ê Remove the dummy module from a 5.25-inch bay for accessible drives: Ê Remove the two screws of the corresponding bay. Ê...
  • Page 43 Accessible drives and LSP Installing the multibay Figure 24: Removing the slimline dummy module Ê Pull up the green touch point. Ê Pull out the slimline dummy module frontward. Figure 25: Removing the slimline frame Ê Expand the frame sideward. Options Guide TX200 S4...
  • Page 44 Installing the multibay Accessible drives and LSP Figure 26: Inserting the slimline drive in the frame Ê Insert the slimline drive in the frame: the four noses fasten the drive to the frame. Ê Push the slimline drive with its frame in the bay of the multibay until it engages.
  • Page 45 Accessible drives and LSP Installing the multibay Figure 28: Installing the multibay Ê Push the multibay with its cables in the lower bay until the holes fit to the threads. Ê Fasten the multibay with two screws (see the circles). Ê...

  • Page 46: Installing A Lsp In The Multibay

    Installing the multibay Accessible drives and LSP 7.2.1 Installing a LSP in the multibay Figure 29: LSP frame Figure 30: Inserting a LSP in the frame Ê Push the LSP in the frame until it engages in the upper recess (see the circle).
  • Page 47 Accessible drives and LSP Installing the multibay Figure 31: Inserting a LSP in the multibay Ê Push the frame in multibay from the rear side and fasten the frame with two screws on each side. Figure 32: Cabling the LSP Ê...

  • Page 48: Installing A Hard Disks Extension Box

    Installing a hard disks extension box Accessible drives and LSP Installing a hard disks extension box Two 5.25-inch bays for accessible drives can be used to install a hard disks extension box. Two variants of the hard disks extension box are available: –...
  • Page 49 Accessible drives and LSP Installing a hard disks extension box Removing and pushing inward of the metal brackets The upper drives lay on four metal brackets. You have to remove and push inward the four metal brackets before it is possible to insert the hard disks extension box.
  • Page 50 Installing a hard disks extension box Accessible drives and LSP Figure 34: Removing the metal brackets - second step Figure 35: Removing the metal brackets - third step Ê Turn the two metal brackets around until they break out. Options Guide TX200 S4...
  • Page 51 Accessible drives and LSP Installing a hard disks extension box Figure 36: Pushing inward the metal brackets - first step Ê Break through the pointy sides of the two inner metal brackets using a screws driver. Figure 37: Pushing inward the metal brackets - second step Ê...
  • Page 52 Installing a hard disks extension box Accessible drives and LSP 3.5“ hard disks extension box Ê Push the metal brackets inward until they cannot blockade the interior space of the bay. Figure 38: Installing 3.5“ hard disks extension box Ê Push the hard disks extension box fully into the bay and fasten it with four screws.
  • Page 53 Accessible drives and LSP Installing a hard disks extension box Figure 40: Example connecting the SATA cable Ê Connect the SATA cable to the hard disks extension box and the second port of a controller (see the cabling plans in the Appendix). It is possible to install a slimline drive in the hard disks extension box.
  • Page 54 Installing a hard disks extension box Accessible drives and LSP 2.5“ hard disks extension box Ê Push the metal brackets inward until they cannot blockade the interior space of the bay. Figure 41: Installing 2.5“ hard disks extension box Ê Push the hard disks extension box fully into the bay and fasten it with three screws.
  • Page 55 Accessible drives and LSP Installing a hard disks extension box Figure 43: Example connecting the power and SAS cables Ê Connect the power cables and the SAS cables to the hard disks extension box (see the cabling plans in the Appendix). Ê...

  • Page 57: Expansion Cards And Bbu

    Expansion cards and BBU CAUTION! Follow the safety instructions in chapter “Safety instructions” on page 15 et seq.. Installing expansion cards The system board offers seven PCI slots: – 2 x PCI-X slots(64 bit / 133 MHz IOOP – 4 x PCI-Express slots, Gen1, mechanical PCIe x8 –...
  • Page 58 Installing expansion cards Expansion cards and BBU Ê Open the server as described in the chapter “Preparation” on page 21 seq.. Ê Remove the system fan 2 as described in the section “Removing the system fan 2” on page Figure 44: Loosening the locking levers Ê...
  • Page 59 Expansion cards and BBU Installing expansion cards Figure 45: Opening the slot locking bar Ê Open the slot locking bar. Options Guide TX200 S4...
  • Page 60 Installing expansion cards Expansion cards and BBU Figure 46: Removing the slot cover Ê Remove the PCI slot cover. CAUTION! Keep the slot cover for further use. If the expansion card is removed again and not replaced with a new one, the slot cover has to be reinstalled to comply with applicable EMC regulations and satisfy cooling requirements and fire protection measures.

  • Page 61: Installing A Bbu

    Expansion cards and BBU Installing a BBU Ê Close the server, connect it to the power outlet, and switch it on as described in the chapter “Completion” on page 85 et seq.. Installing a BBU You can install up to two Battery Backup Units (BBU). Ê...
  • Page 62 Installing a BBU Expansion cards and BBU Side with one pin row: Side with two pin rows: Ê Install the expansion card. Figure 48: Inserting the BBU Ê Push the BBU in the housing. Options Guide TX200 S4...
  • Page 63 Expansion cards and BBU Installing a BBU BBU 2 BBU 1 Figure 49: Position screws Ê Fasten the BBU with three screws at the outer side (the first BBU in the front range, a second BBU in the middle range). Ê...

  • Page 64: Installing The Performance Adapter

    Installing the Performance Adapter Expansion cards and BBU Installing the Performance Adapter Ê Open the server as described in the chapter “Preparation” on page 21 seq.. Ê Remove the system fan 1 and the system fan 2 as described in the section “System fans and traverse”...

  • Page 65: Sata Sw Raid

    SATA SW RAID CAUTION! Follow the safety instructions in chapter “Safety instructions” on page 15 et seq.. The SATA SW RAID 5 functionality will be activated by installing a license key (RAID key). Inserting the RAID key Ê Open the server as described in the chapter “Preparation”...

  • Page 67: Parallel Interface For Printers

    Parallel interface for printers CAUTION! Follow the safety instructions in chapter “Safety instructions” on page 15 et seq.. 10.1 Installing a parallel interface Ê Open the server as described in the chapter “Preparation” on page 21 seq.. Ê Remove the system fan 1, the system fan 2 and the traverse as described in section “System fans and traverse”...
  • Page 68 Installing a parallel interface Parallel interface for printers Ê Install the traverse, the system fan 2 and the system fan 1 as described in section “System fans and traverse” on page 85 et seq.. Ê Close the server, connect it to the power outlet, and switch it on as described in the chapter “Completion”...

  • Page 69: Conversion To Hot-Plug Ps And Redundant System Fans

    Conversion to hot-plug PS and redundant system fans CAUTION! Follow the safety instructions in chapter “Safety instructions” on page 15 et seq.. Ê Open the server as described in the chapter “Preparation” on page 21 seq.. Ê Remove the system fan 1, the system fan 2 and the traverse as described in section “System fans and traverse”...
  • Page 70 Conversion to hot-plug PS and redundant system fans Figure 54: Removing the PSU Ê Remove the four screws and pull the power supply unit inward and take it out of the server. Figure 55: Removing the adapter metal cover Ê Remove the six screws and push the adapter metal cover inward in a slight angle and take it out of the server.
  • Page 71 Conversion to hot-plug PS and redundant system fans Figure 56: Installing the Power backplane in the PS cage Ê Insert the Power backplane in the PS cage. Ê Push the Power backplane in direction of the arrow until it engages in the guidances of the PS cage.
  • Page 72 Conversion to hot-plug PS and redundant system fans Figure 57: Breaking out the pre-cut plate Ê Break out the pre-cut plate for the plug of the redundant fan using a screws driver. Figure 58: Inserting the redundant fan Ê Insert the redundant fan with its holder in the four recesses at the rear side of the housing.
  • Page 73 Conversion to hot-plug PS and redundant system fans Figure 59: Fastening the holder Ê Push the holder to the left side until the four hooks engage. Ê Fasten the holder with three screws. Options Guide TX200 S4...
  • Page 74 Conversion to hot-plug PS and redundant system fans Figure 60: Installing the PS cage Ê Push the PS cage from the rear side into the housing. In the floorstand model the Power backplane is positioned under the top cover, and in the rack model at the right-hand side cover (seen from front side).
  • Page 75 Conversion to hot-plug PS and redundant system fans Figure 61: Fastening the PS cage Ê Fasten the PS cage with three screws. Figure 62: Cabling of the redundant fan Ê Connect the cable T26139-Y3908-V101 to the system board connector Fan4 SYS and to the fan connector (see the cabling plans in the Appendix). Options Guide TX200 S4...
  • Page 76 Conversion to hot-plug PS and redundant system fans Figure 63: PS cabling - step 1 Ê Thread the power cable T26139-Y3758-V5 through the recess. Ê Connect the power cable to the connector X3 on the Power backplane. Ê Connect the power cable to the connector PWR1 on the system board. Options Guide TX200 S4...
  • Page 77 Conversion to hot-plug PS and redundant system fans Figure 64: PS cabling - step 2 Ê Thread the power cable T26139-Y3952-V2 through the recess. Ê Connect the power cable to the connector X4 on the Power backplane. Ê Connect the power cable to the connectors PWR3, PWR2 and PC98 on the system board.
  • Page 78 Conversion to hot-plug PS and redundant system fans Figure 65: PS cabling - step 3 Ê Thread the power cable T26139-Y3952-V101 through the recess. Ê Connect the power cable to the connector X5 on the Power backplane. Ê Connect the plugs of the power cable to the drives and the HDD backplanes (see the cabling plans in the Appendix).
  • Page 79 Conversion to hot-plug PS and redundant system fans Figure 66: Installing the PS safe guard Ê Install the PS safe guard and fasten it with one screw. Ê Push the both power supply modules in the bays of PS cage until they engage (description see the operating manual).

  • Page 81: Conversion From A Floorstand Model To A Rack Model

    Conversion from a floorstand model to a rack model CAUTION! Follow the safety instructions in chapter “Safety instructions” on page 15 et seq.. Figure 67: Removing the stabilizer Ê Remove the two screws (1). Ê Lift the server somewhat and remove the stabilizer. The stabilizer is no longer required.
  • Page 82 Conversion from a floorstand model to a rack model Figure 68: Removing the front cover Ê Release the three locks and open the front cover. Ê Unhook the front cover at the other side and remove the front cover. The front cover is no longer required. Ê...
  • Page 83 Conversion from a floorstand model to a rack model Figure 69: Position of the recesses Ê Press the three hooks of the plastic front cover on the bottom side in the recesses (see the circles) of the housing. Ê Press the plastic front cover onto the housing until the three tabs on the top side (see the circles) engage.
  • Page 84 Conversion from a floorstand model to a rack model Ê Install the rack model in the rack as described in the operating manual. To enable the rack model to be presented correctly in ServerView, proceed as follows: Ê Boot the system from the ServerStart DVD. Ê...

  • Page 85: Completion

    Completion CAUTION! Follow the safety instructions in chapter “Safety instructions” on page 15 et seq.. 13.1 System fans and traverse 13.1.1 Installing the system fan 3 Figure 71: Installing the system fan 3 Ê Put the hooks of the system fan 3 into the recesses on the server’s rear side (1).

  • Page 86: Installing The Traverse With The Air Duct Over The Main Memory

    System fans and traverse Completion 13.1.2 Installing the traverse with the air duct over the main memory Ê Install the system fan 3 before. Figure 72: Installing the traverse Ê Insert carefully the traverse with the air duct over the main memory. Ê...

  • Page 87: Installing The System Fan 1

    Completion System fans and traverse Ê Connect the fan cable to the connector FAN2 SYS on the system board. 13.1.4 Installing the system fan 1 Ê Install the system fan 3, the traverse and the system fan 2 before. Ê Connect the fan cable to the connector FAN1 SYS on the system board. Figure 74: Installing the system fan 1 (1) Ê...
  • Page 88 System fans and traverse Completion Figure 75: Installing the system fan 2 (1) Ê Push the air duct in direction of the arrow (2). Make sure that the lock (a) engages. Options Guide TX200 S4...

  • Page 89: Floorstand Model

    Completion Floorstand model 13.2 Floorstand model 13.2.1 Closing the server Ê Open the latch. Figure 76: Attaching the left-hand side cover Ê Position the left-hand side cover in the five recesses (see circles) of the housing (1). Ê Push the left-hand side cover against the housing and push down the latch (2) at the same time.

  • Page 90: Rack Model

    Rack model Completion 13.3 Rack model 13.3.1 Closing the server Ê Open the latch. Ê Position the top cover in the five recesses of the housing (see also the figure 76 on page 89). Ê Push the top cover against the housing and push down the latch at the same time.
  • Page 91 Completion Rack model If you have not removed the server from the rack cabinet, please skip this step: Figure 78: Fastening the server in the rack cabinet at the rear side Ê Fasten the rack unit at the rear side with two screws (1+2) on the left and the right side.

  • Page 93: Appendix

    Appendix 14.1 Cabling You will find suggestions for cabling on the next pages. Options Guide TX200 S4...
  • Page 94 Cabling Appendix Y3973-V2 / A3C40073691 Y3925-V301 / A3C40087205 FAN 4 SYS FAN 3 SYS Figure 79: Red. PS, 3.5“ HD, USB, SATA, slimline drive Options Guide TX200 S4...

  • Page 95: Options Guide

    Appendix Cabling A3C40086493A3C40086493 A3C40086493 Y3963-V103 Y3963-V103 / A3C40089197 Y3963-V102 Y3963-V102 / A3C40087289 Y3952-V2 / A3C40087925 Y3969-V201 / A3C40091986 Figure 80: Red. PS, 2.5“ HD, 2.5“ hard disks extension box, SATA Options Guide TX200 S4...
  • Page 96 Cabling Appendix Y3973-V2 / A3C40073691 Figure 81: Standard PS, 3.5“ HD, USB, SATA, slimline drive Options Guide TX200 S4...
  • Page 97 Appendix Cabling Figure 82: Standard PS, 3.5“ HD, SATA Options Guide TX200 S4...
  • Page 98 Cabling Appendix Figure 83: Standard PS, 2.5“ HD, 2.5“ hard disks extension box, SATA Options Guide TX200 S4...
  • Page 99 Appendix Cabling Frontpanel Y3925-V301 / A3C40087205 Figure 84: Standard PS, 3.5“ HD, SCSI, SATA, LSP Options Guide TX200 S4...
  • Page 100 Cabling Appendix Frontpanel A3C40080521 Y3925-V301 / A3C40087205 Y3969-V201 / A3C40091986 Figure 85: Standard PS, 3.5“ HD, 3.5“ hard disks extension box, slimline drive, LSP, BBU Options Guide TX200 S4...

  • Page 101: Abbreviations

    Abbreviations Alternating Current ANSI American National Standards Institute ASR&R Automatic Server Reconfiguration and Restart BIOS Basic Input-Output System Baseboard Management Controller Cache Coherency Compact Disk CD-ROM Compact Disk-Read Only Memory Cylinder Head Sector CMOS Complementary Metal Oxide Semiconductor Communication Central Processing Unit Direct Current Options Guide TX200 S4...
  • Page 102 Abbreviations DIMM Dual Inline Memory Module Dual Inline Package Direct Memory Access Desktop Management Interface Error Checking and Correcting Extended Capabilities Port EEPROM Electrically Erasable Programmable Read-Only Memory Electrostatic Sensitive Devices Emergency Management Port Enhanced Parallel Port Elektromagnetische Verträglichkeit (electromagnetic compatibility) Front Panel Controller Field Replaceable Unit Front Side Bus...
  • Page 103 Abbreviations Global Array Manager Graphical User Interface Hard Disk Drive Hot-Swap Controller I²C Inter-Integrated Circuit Input/Output Intelligent Chassis Management Identification Integrated Drive Electronics IOOP Intelligent Organization of PCI iRMC integrated Remote Management Controller Interrupt Request Line Local Area Network Logical Block Address Options Guide TX200 S4...
  • Page 104 Abbreviations Liquid Crystal Display Logical Unit Number Low-Voltage Differential SCSI Optical Waveguide Multi Mode Faser Manual Retention Latch Non Maskable Interrupt NVRAM Non Volatile Random Access Memory Operating System Peripheral Component Interconnect Prefailure Detection and Analyzing POST Power ON Self Test RAID Redundant Arrays of Independent Disks Random Access Memory...
  • Page 105 Abbreviations Read-Only Memory Remote Service Board Real Time Clock RTDS Remote Test and Diagnosis System SAF-TE SCSI Accessed Fault-Tolerance Enclosures Serial Attached SCSI SATA Serial ATA Single Bit Error Single Connector Attachment SCSI Small Computer System Interface Sensor Data Record SDRAM Synchronous Dynamic Random Access Memory System Event Log...
  • Page 106 Abbreviations System Setup Utility SVGA Super Video Graphics Adapter Universal Serial Bus Video Graphics Adapter Zero Channel RAID Options Guide TX200 S4...

  • Page 107: Index

    Index accessible drives 9, parallel interface 10, Performance Adapter 10, processor 9, RAID key conversion of floorstand model to rack model 10, conversion standard PS to hot-plug ServerView Local Service Panel 9, PS 10, dual operation 31, target group electrostatic-sensitive devices upgrade standard system fan to red- (ESD) undant system fans 10,...
