The Host Coalescing Engine is responsible for pacing the rate at which the NIC updates the send and receive ring indices
located in host memory space. The completion of a NIC update is reflected through an interrupt on the BCM5722 Ethernet
controller INTA pin or a Message Signalled Interrupt (MSI). Although update criteria are calculated separately, all updates
occur at once. This is because all of the ring indices are in one status block, and any host update updates all ring indices
simultaneously. The Host Coalescing Engine triggers based on a tick and/or a frame counter.
Status
Buffer
Memory
Manager
Page 33
Host Coalescing
E
NGINE
DMA
Write
Engine
Tick
BD
Counter
Counter
Host
Coalescing
Engine

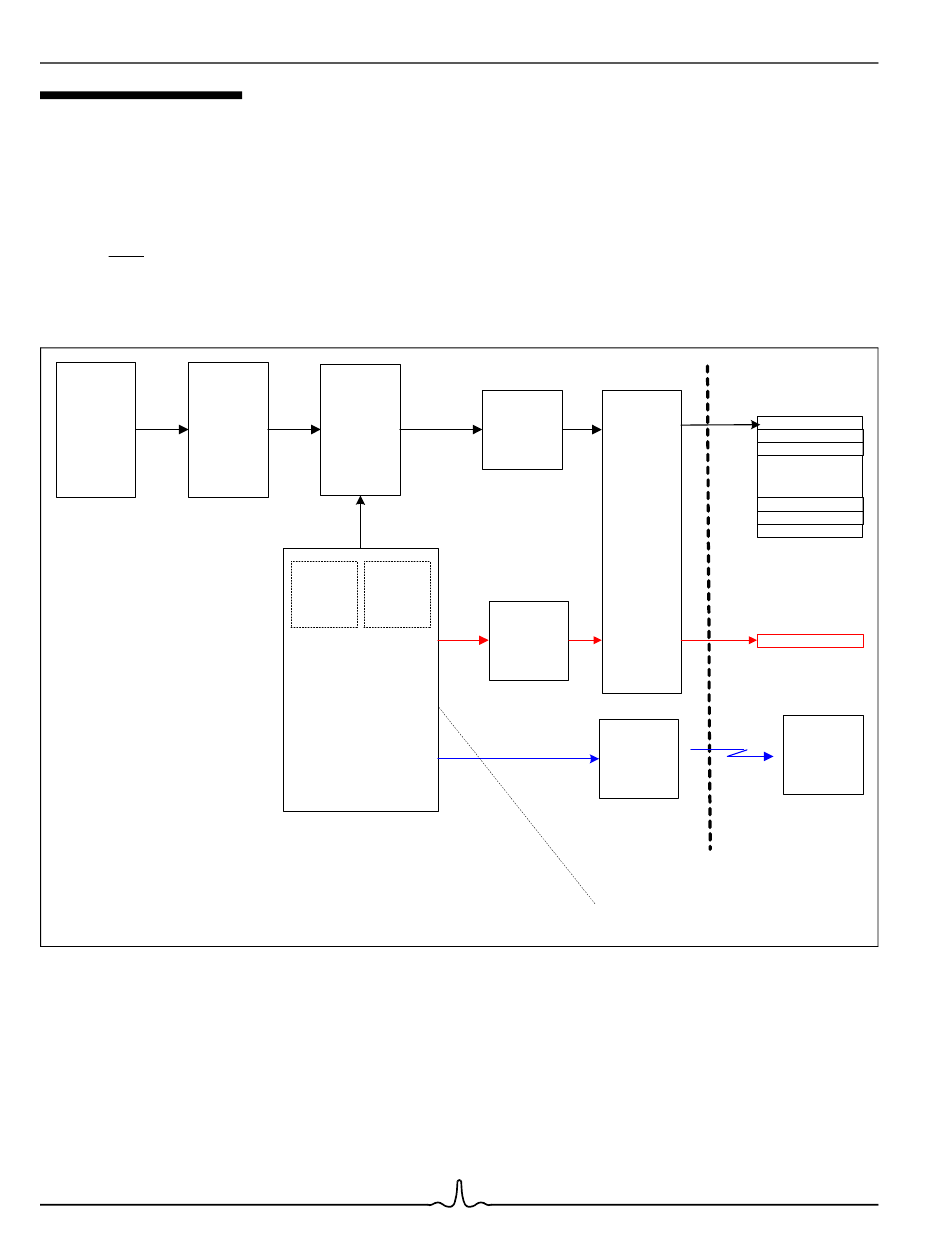

Figure 17: Host Coalescing Engine
