SPC Series Solar Pump Inverter
3.1.2 Installation direction
The inverter can be installed on the wall or column or in a cabinet.
The inverter must be installed vertically. Check the installation position according to
following requirements. For details about the outline dimensions, see Appendix C
"Dimension drawings".
3.1.3 Installation method
The inverter supports column mounting.
1. Mark the installation hole positions. For details about the installation hole positions,
see Appendix C "Dimension drawings".
2. Mount the screws or bolts onto the designated positions.
3. Lean the inverter against the wall or column.
4.
Tighten the fastening screws on the wall or column.

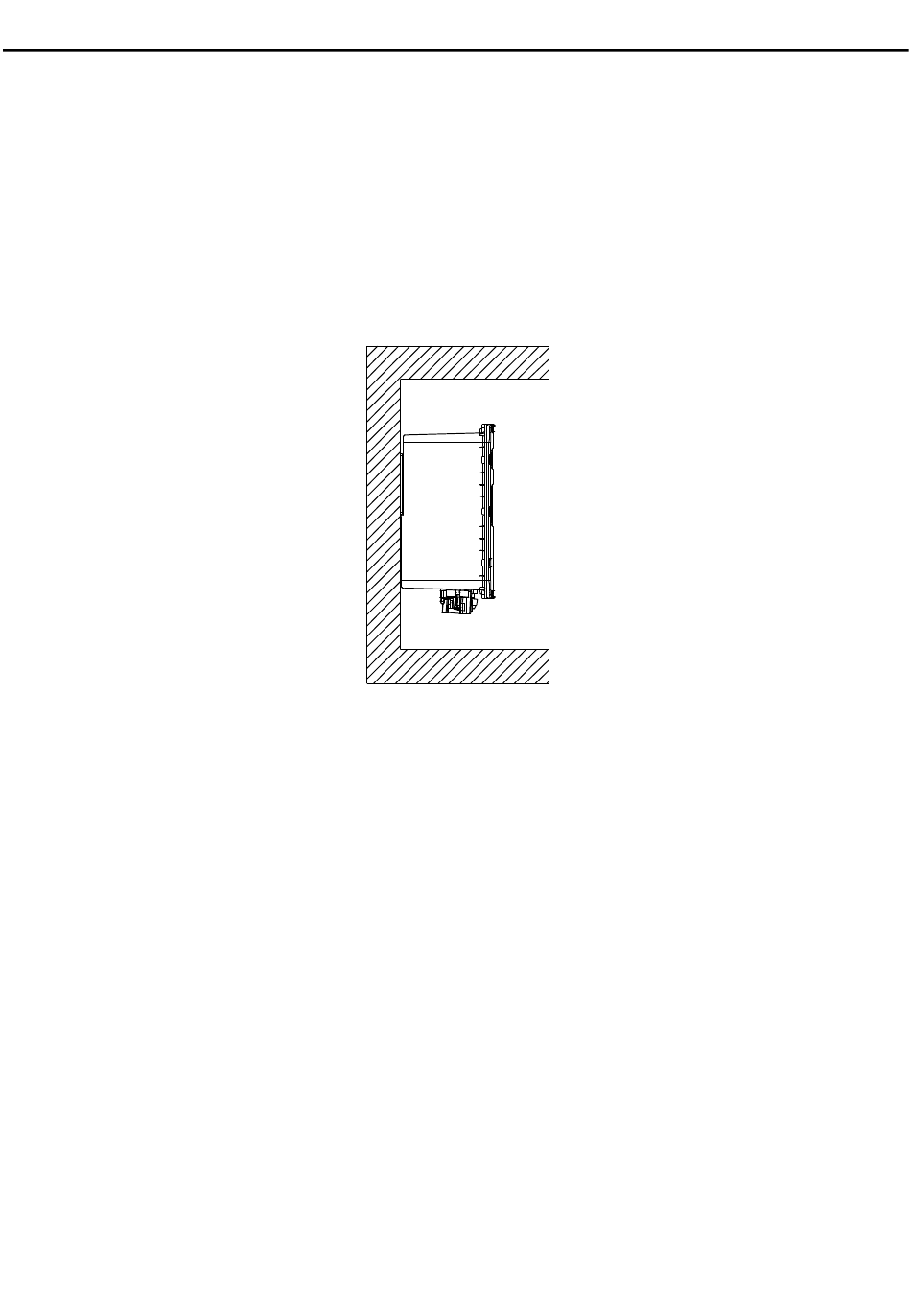

Figure 3-1 Column mounting
