C.1 External keypad structure
You can mount the keypad on an external bracket, which is an optional part. The external
keypad can be up to 20 meters away from the inverter.

Appendix C Dimension drawings

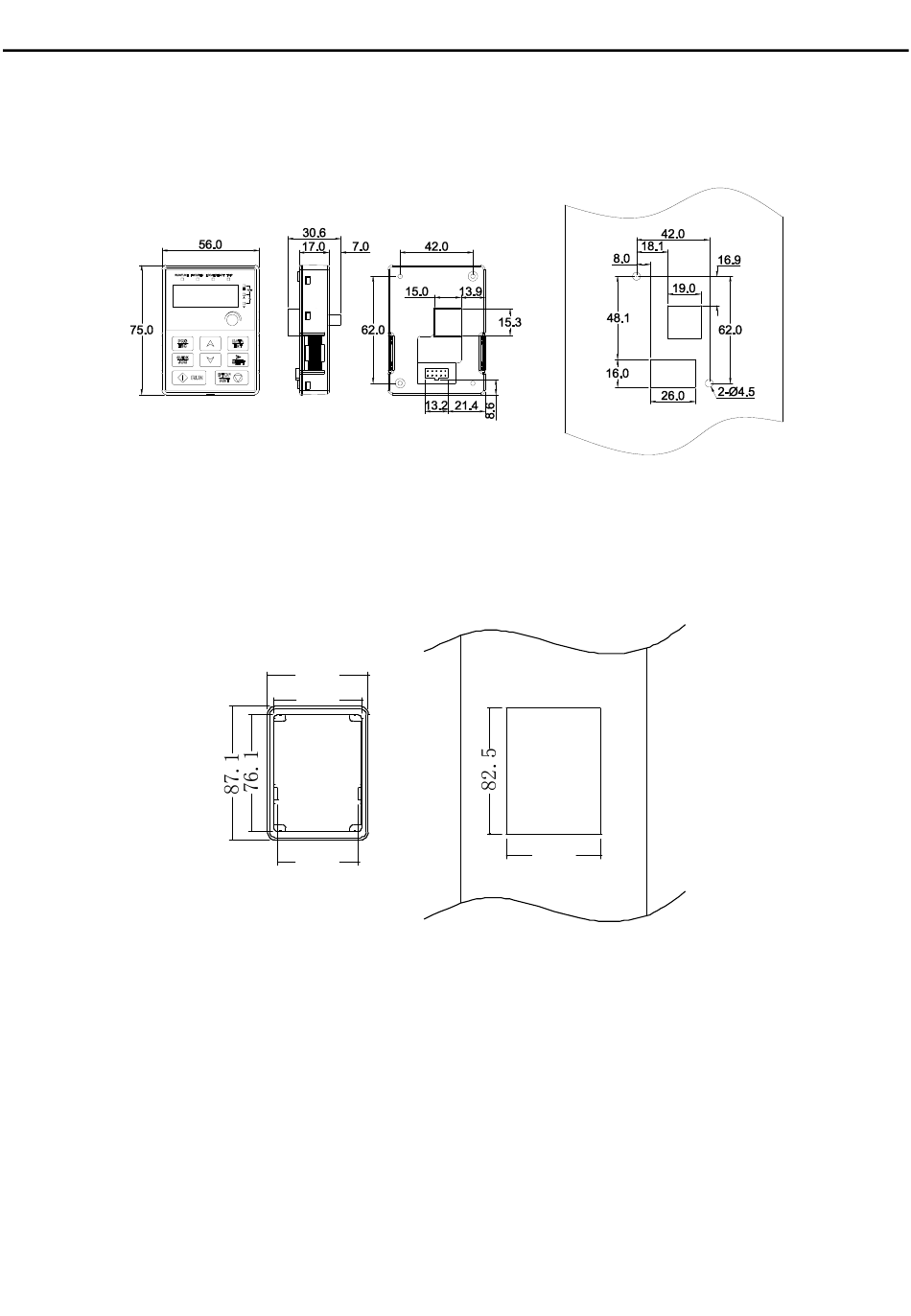

Keypad outline drawing
66.1
57.1
53.2
Keypad bracket
61.5
Installation dimensions
-60-
Dimension drawings
Keypad cut-out drawing (without
bracket)
