RM0401

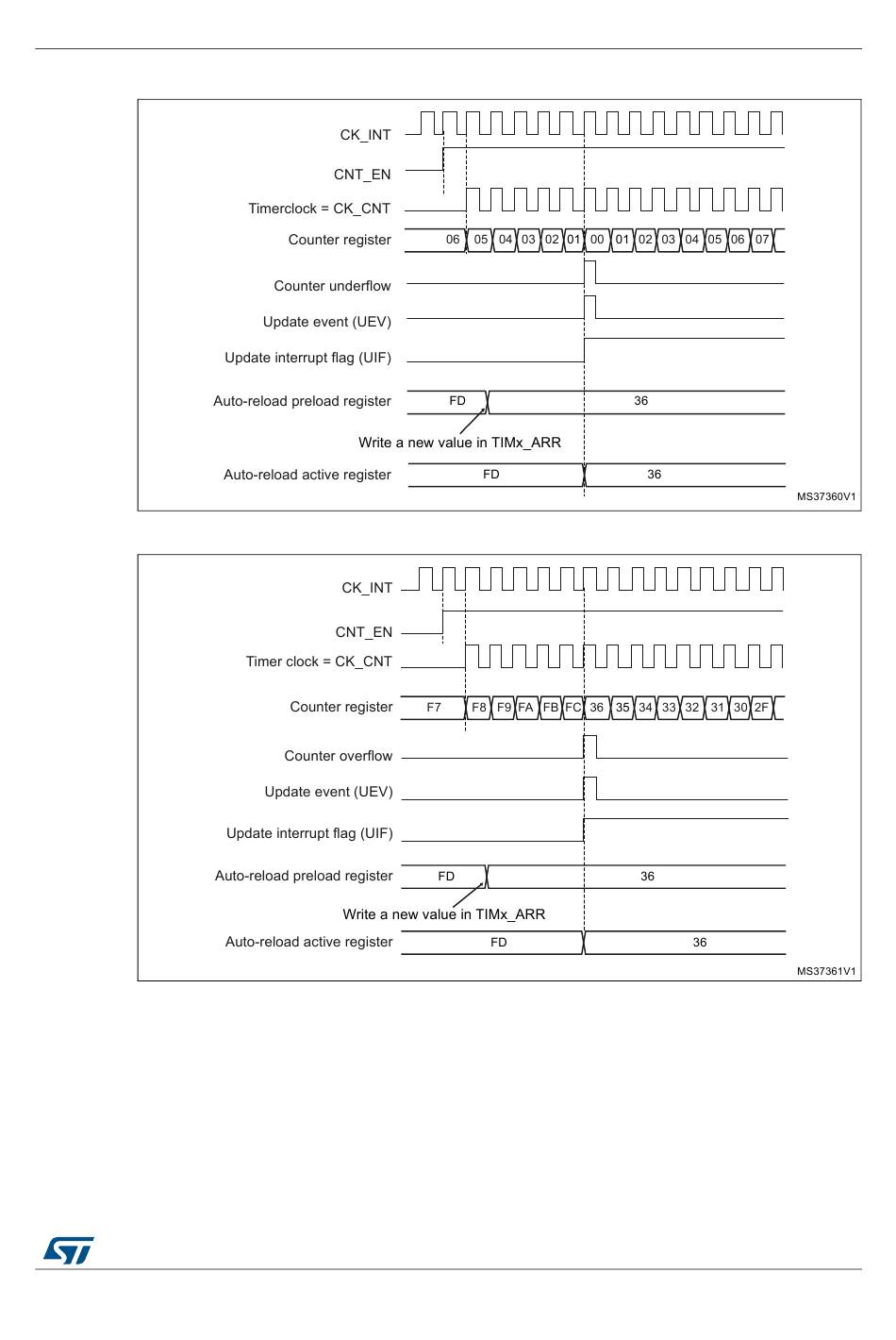

Figure 115. Counter timing diagram, Update event with ARPE=1 (counter underflow)

Figure 116. Counter timing diagram, Update event with ARPE=1 (counter overflow)

15.3.3

Clock selection

The counter clock can be provided by the following clock sources:
•
Internal clock (CK_INT)
• External clock mode1: external input pin (TIx)
•
Internal trigger inputs (ITRx): using one timer as prescaler for another timer.
RM0401 Rev 3
General-purpose timers (TIM5)
351/771
389
