Figure 53. Counter Timing Diagram, Internal Clock Divided By 2; Figure 54. Counter Timing Diagram, Internal Clock Divided By 4; Figure 55. Counter Timing Diagram, Internal Clock Divided By N - ST STM32F410 Reference Manual

Advanced-control timers (TIM1)
274/771

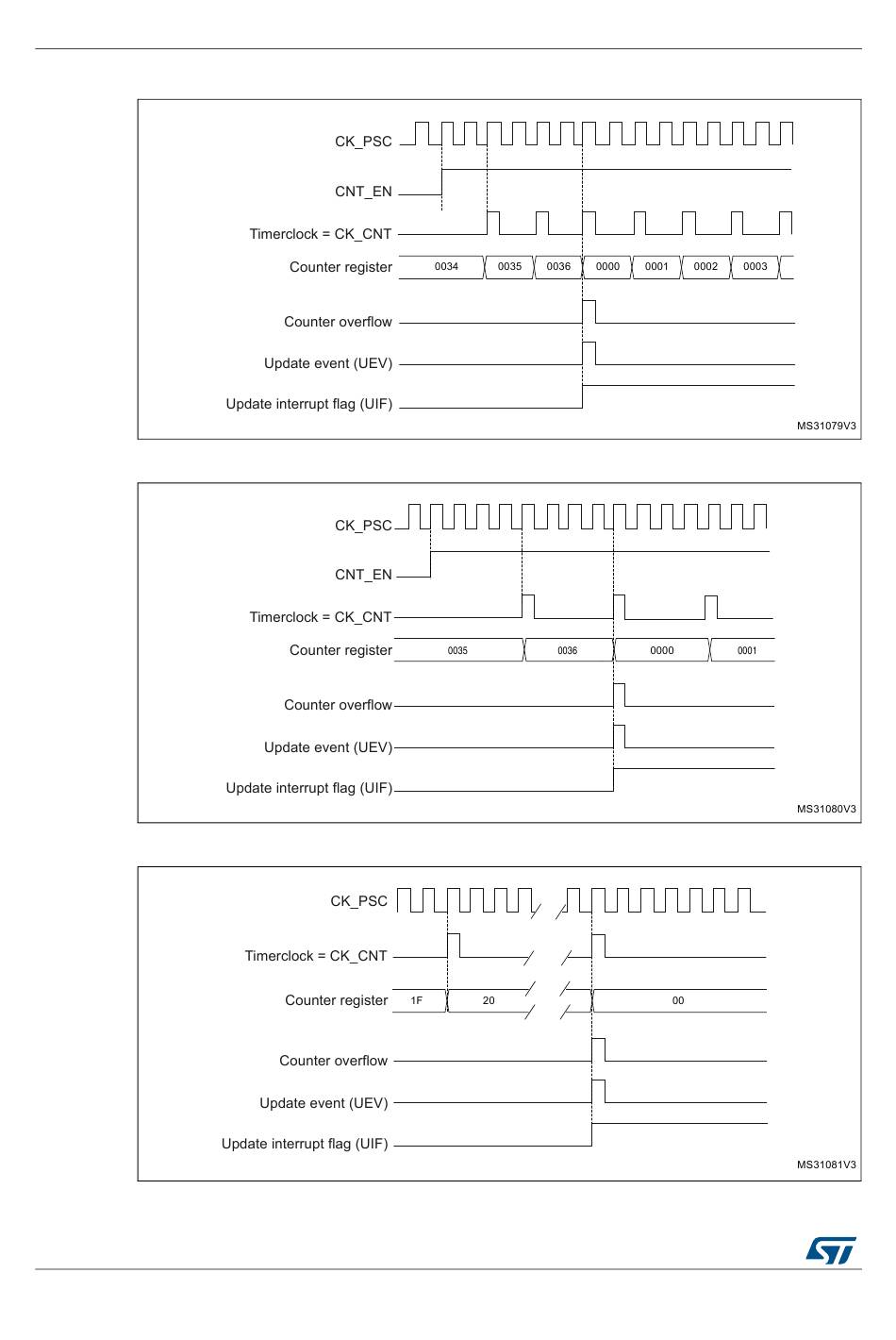

Figure 53. Counter timing diagram, internal clock divided by 2

Figure 54. Counter timing diagram, internal clock divided by 4

Figure 55. Counter timing diagram, internal clock divided by N
