Digital-to-analog converter (DAC)
Name
V
REF+
V
DDA
V
SSA
DAC1_OUT
Note: Once DAC_Channelx is enabled, the corresponding GPIO pin (PA5) is automatically
connected to the analog converter output (DAC1_OUT). In order to avoid parasitic
consumption, the PA5 pin should first be configured to analog (AIN).
12.3

DAC output buffer enable

The DAC integrates one output buffer that can be used to reduce the output impedance on
DAC1_OUT1 output, and to drive external loads directly without having to add an external
operational amplifier.
244/771

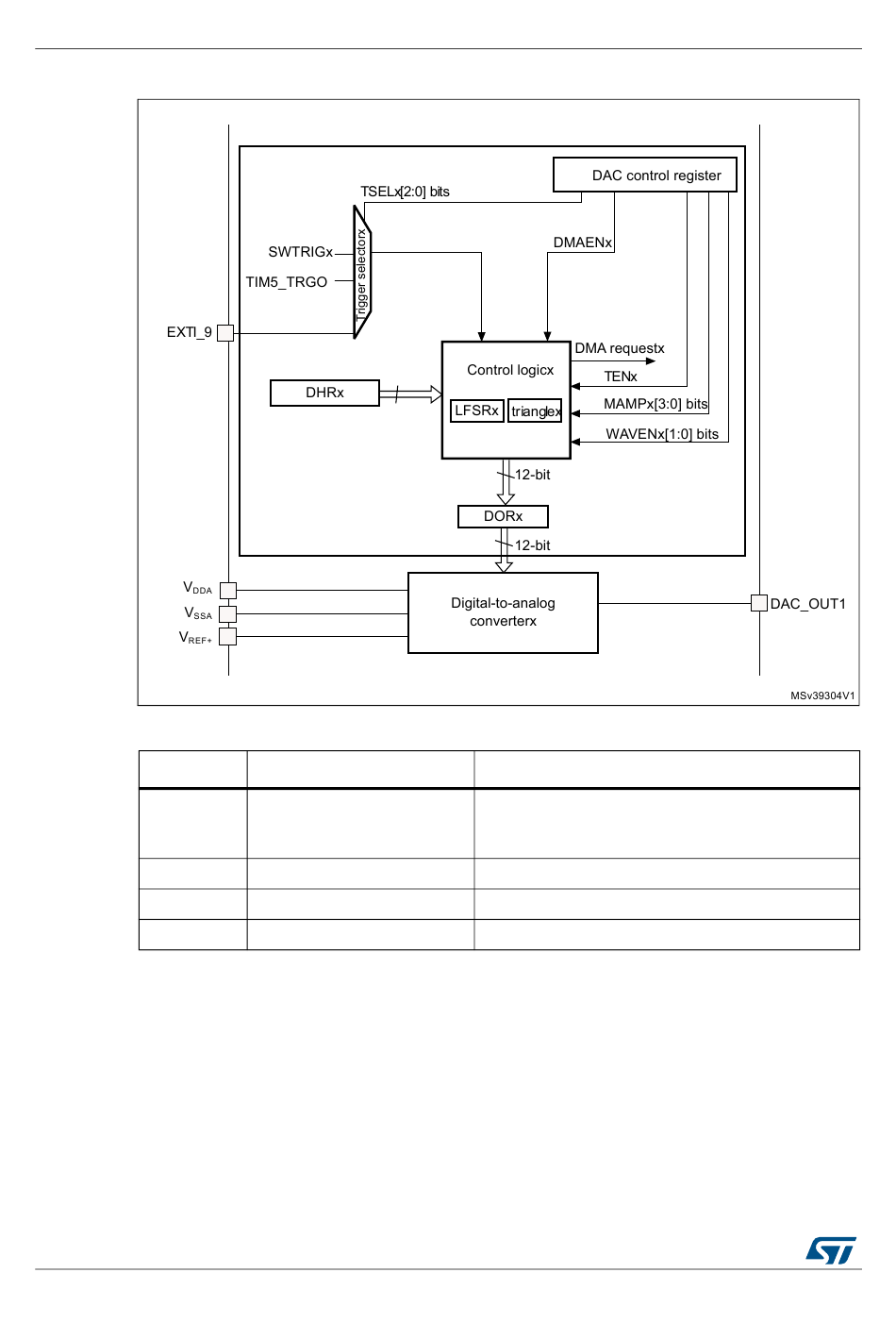

Figure 40. DAC channel block diagram

Table 51. DAC pins

Signal type
Input, analog positive
reference
Input, analog supply
Input, analog supply ground
Analog output signal
RM0401 Rev 3
Remarks
The higher/positive reference voltage for the DAC.
V and V are connected together on the
DDA REF+
package.
Analog power supply
Ground for analog power supply
DAC1 channel analog output
