Serial peripheral interface/ inter-IC sound (SPI/I2S)

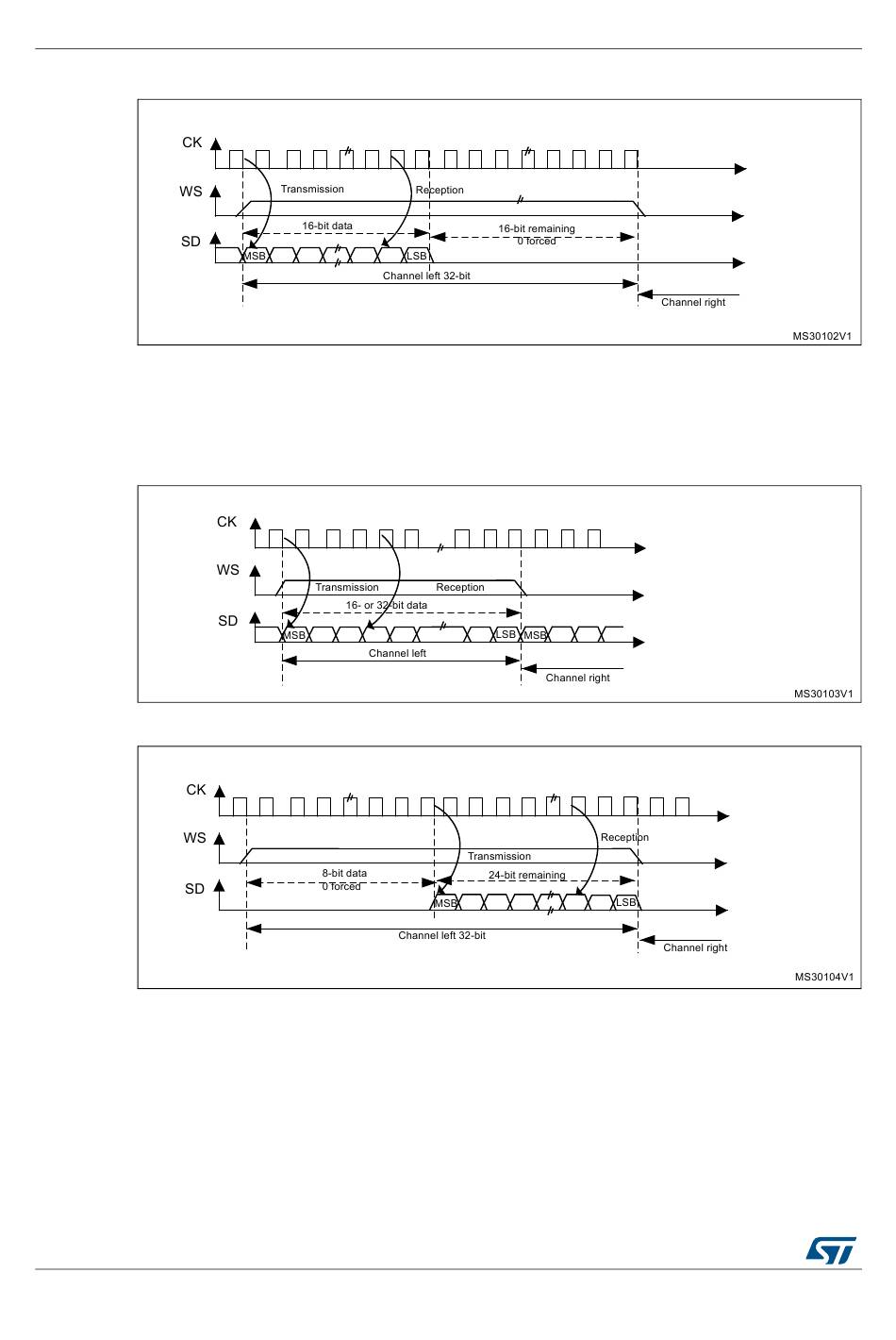

Figure 262. MSB justified 16-bit extended to 32-bit packet frame with CPOL = 0

LSB justified standard
This standard is similar to the MSB justified standard (no difference for the 16-bit and 32-bit
full-accuracy frame formats).
710/771

Figure 263. LSB justified 16-bit or 32-bit full-accuracy with CPOL = 0

Figure 264. LSB justified 24-bit frame length with CPOL = 0

RM0401 Rev 3
RM0401
