General-purpose timers (TIM5)

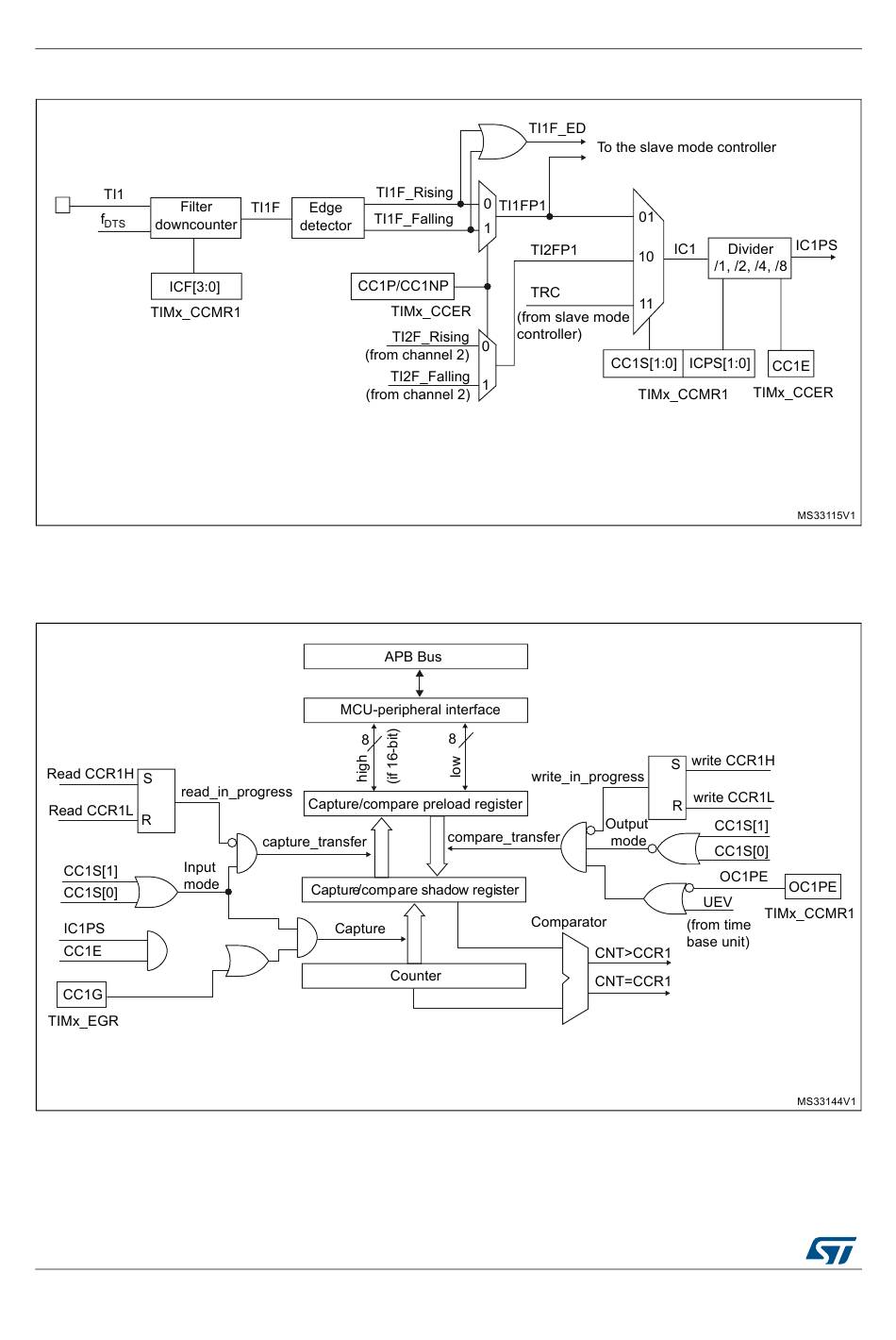

Figure 120. Capture/compare channel (example: channel 1 input stage)

The output stage generates an intermediate waveform which is then used for reference:
OCxRef (active high). The polarity acts at the end of the chain.
354/771

Figure 121. Capture/compare channel 1 main circuit

RM0401 Rev 3
RM0401
