RM0401 Advanced-control timers (TIM1)

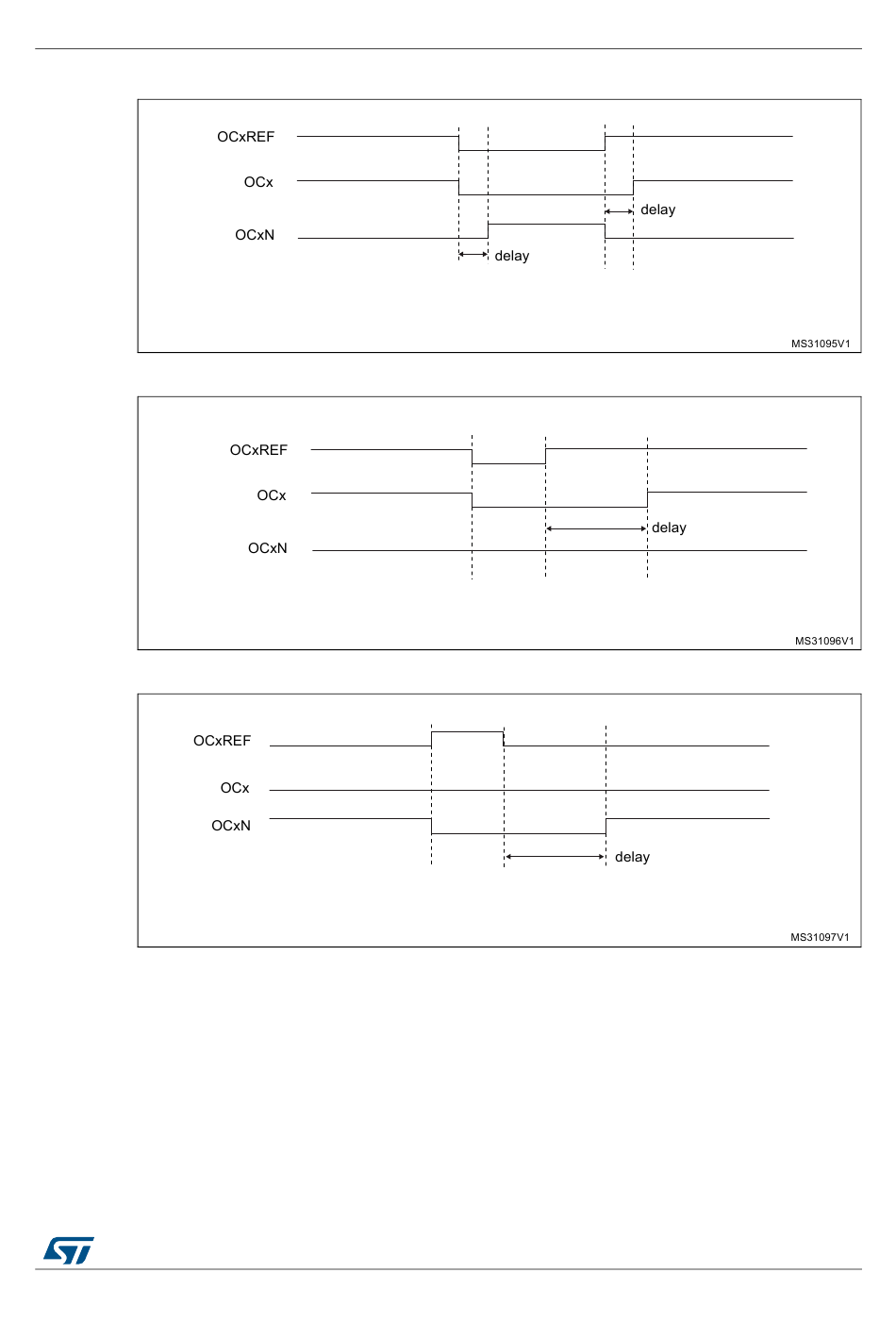

Figure 83. Complementary output with dead-time insertion.

Figure 84. Dead-time waveforms with delay greater than the negative pulse.

Figure 85. Dead-time waveforms with delay greater than the positive pulse.

The dead-time delay is the same for each of the channels and is programmable with the
DTG bits in the TIMx_BDTR register. Refer to Section 14.4.18: TIM1 break and dead-time
register (TIMx_BDTR) for delay calculation.
Re-directing OCxREF to OCx or OCxN
In output mode (forced, output compare or PWM), OCxREF can be re-directed to the OCx
output or to OCxN output by configuring the CCxE and CCxNE bits in the TIMx_CCER
register.
This allows to send a specific waveform (such as PWM or static active level) on one output
while the complementary remains at its inactive level. Other alternative possibilities are to
RM0401 Rev 3 297/771
