Figure 106. Counter Timing Diagram, Internal Clock Divided By 1; Figure 107. Counter Timing Diagram, Internal Clock Divided By 2; Figure 108. Counter Timing Diagram, Internal Clock Divided By 4 - ST STM32F410 Reference Manual

RM0401 General-purpose timers (TIM5)

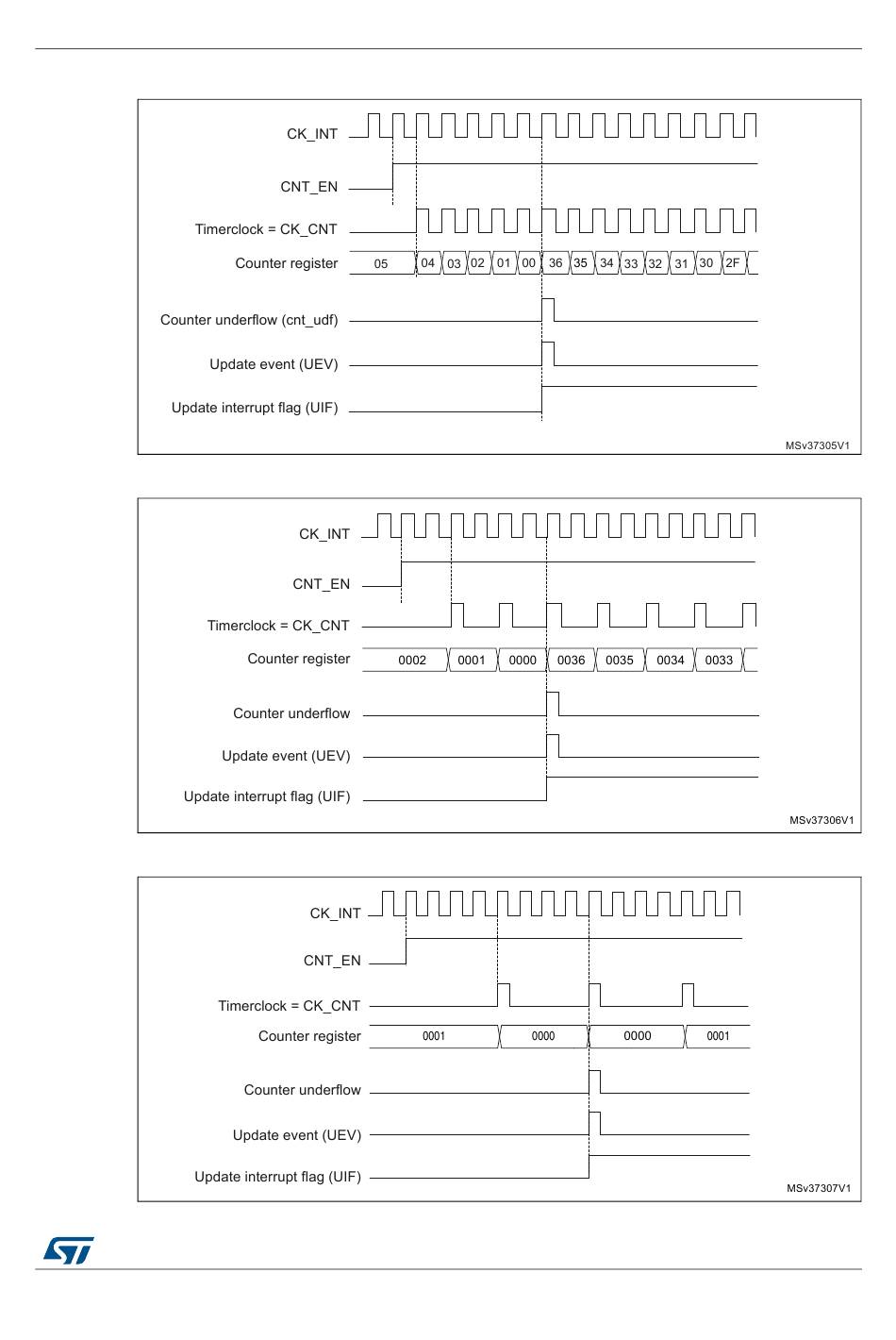

Figure 106. Counter timing diagram, internal clock divided by 1

Figure 107. Counter timing diagram, internal clock divided by 2

Figure 108. Counter timing diagram, internal clock divided by 4
