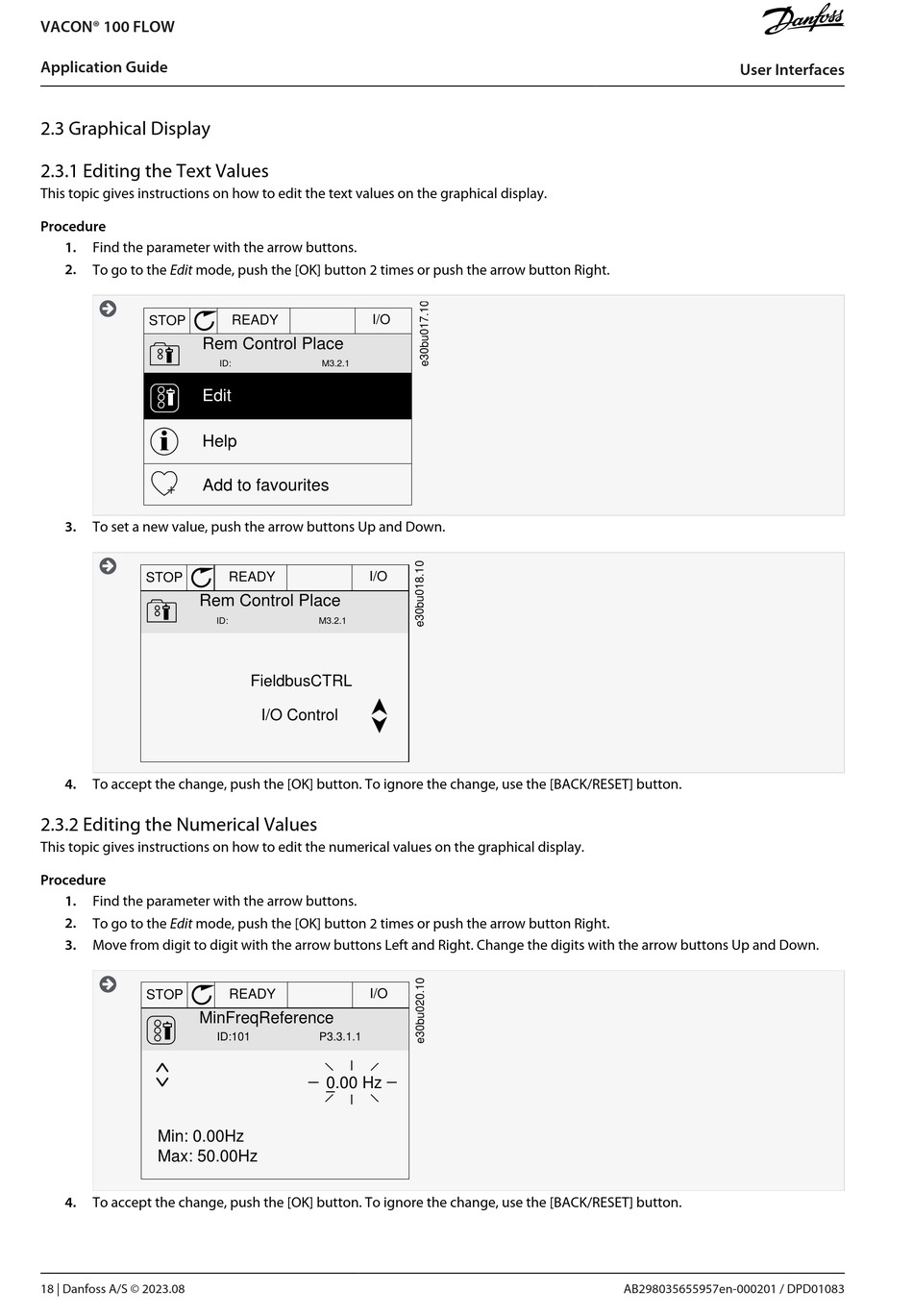

2.3 Graphical Display

2.3.1 Editing the Text Values

This topic gives instructions on how to edit the text values on the graphical display.
Procedure
1. Find the parameter with the arrow buttons.
2.
To go to the Edit mode, push the [OK] button 2 times or push the arrow button Right.

STOP
Rem Control Place
Edit
Help
Add to favourites
3. To set a new value, push the arrow buttons Up and Down.

STOP
Rem Control Place
4.
To accept the change, push the [OK] button. To ignore the change, use the [BACK/RESET] button.

2.3.2 Editing the Numerical Values

This topic gives instructions on how to edit the numerical values on the graphical display.
Procedure
1.
Find the parameter with the arrow buttons.
2.
To go to the Edit mode, push the [OK] button 2 times or push the arrow button Right.
3. Move from digit to digit with the arrow buttons Left and Right. Change the digits with the arrow buttons Up and Down.

STOP
MinFreqReference
Min: 0.00Hz
Max: 50.00Hz
4. To accept the change, push the [OK] button. To ignore the change, use the [BACK/RESET] button.
