VACON® 100 FLOW
Application Guide

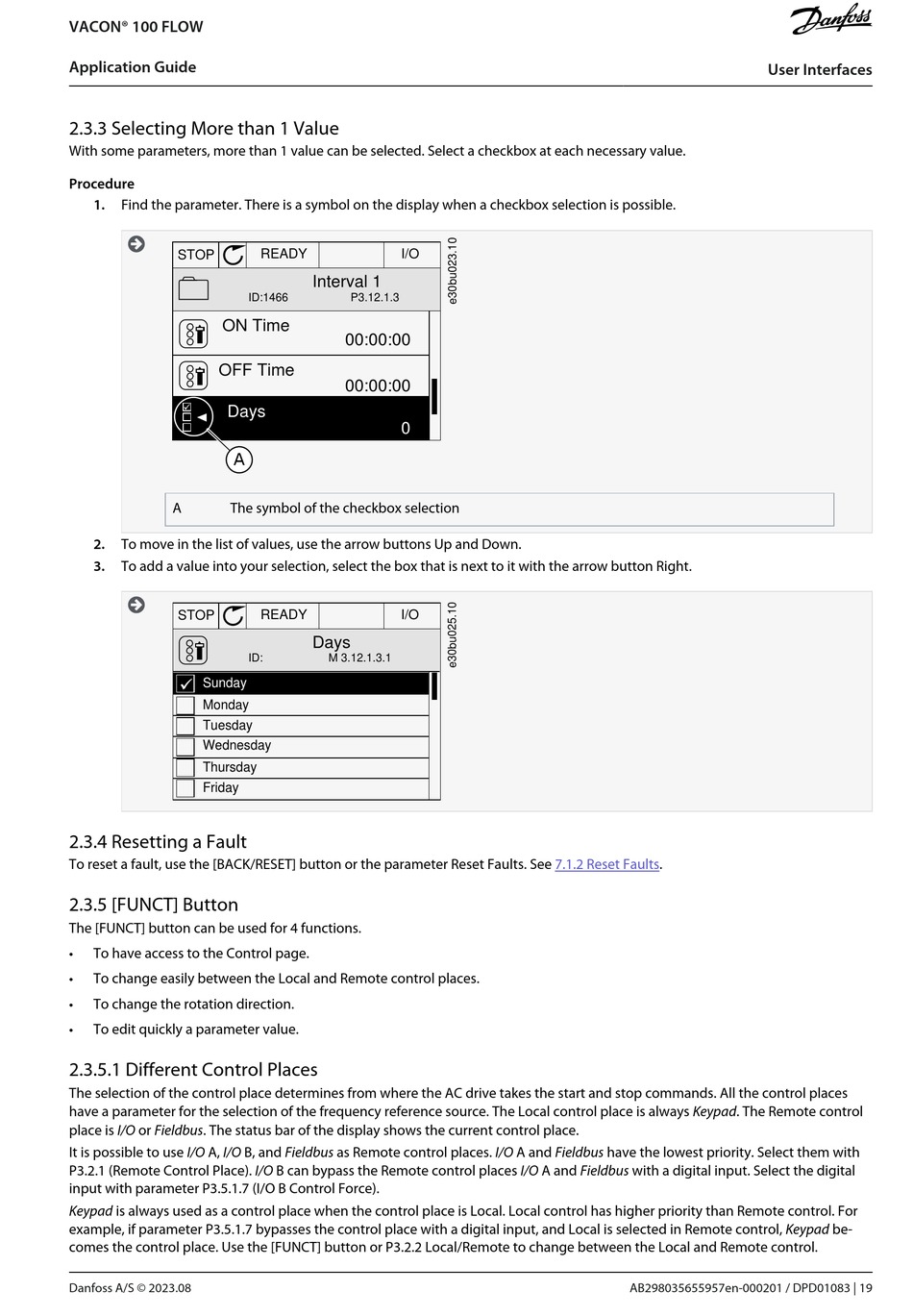

2.3.3 Selecting More than 1 Value

With some parameters, more than 1 value can be selected. Select a checkbox at each necessary value.
Procedure
1. Find the parameter. There is a symbol on the display when a checkbox selection is possible.

STOP
ON Time
OFF Time
Days
A
A The symbol of the checkbox selection
2. To move in the list of values, use the arrow buttons Up and Down.
3. To add a value into your selection, select the box that is next to it with the arrow button Right.

STOP
Sunday
Monday
Tuesday
Wednesday
Thursday
Friday

2.3.4 Resetting a Fault

To reset a fault, use the [BACK/RESET] button or the parameter Reset Faults. See

2.3.5 [FUNCT] Button

The [FUNCT] button can be used for 4 functions.
• To have access to the Control page.
• To change easily between the Local and Remote control places.
• To change the rotation direction.
• To edit quickly a parameter value.

2.3.5.1 Different Control Places

The selection of the control place determines from where the AC drive takes the start and stop commands. All the control places
have a parameter for the selection of the frequency reference source. The Local control place is always Keypad. The Remote control
place is I/O or Fieldbus. The status bar of the display shows the current control place.
It is possible to use I/O A, I/O B, and Fieldbus as Remote control places. I/O A and Fieldbus have the lowest priority. Select them with
P3.2.1 (Remote Control Place). I/O B can bypass the Remote control places I/O A and Fieldbus with a digital input. Select the digital
input with parameter P3.5.1.7 (I/O B Control Force).
Keypad is always used as a control place when the control place is Local. Local control has higher priority than Remote control. For
example, if parameter P3.5.1.7 bypasses the control place with a digital input, and Local is selected in Remote control, Keypad be-
comes the control place. Use the [FUNCT] button or P3.2.2 Local/Remote to change between the Local and Remote control.
Danfoss A/S © 2023.08
READY I/O
Interval 1
ID:1466 P3.12.1.3
00:00:00
00:00:00
0
READY I/O
Days
ID: M 3.12.1.3.1
7.1.2 Reset Faults.
AB298035655957en-000201 / DPD01083 | 19
User Interfaces
