Servo Parameter; Servo Parameter Overview - Omron CS1W-MCH71 MOTION CONTROL UNIT - 09-2004 Manual

Servo Parameter

Execution
condition
R1 R3
R2
Setting Content [DM]
!Caution Executing the present position preset of a master axis during execution of
4-8 Servo Parameter
4-8-1

Servo Parameter Overview

Basic Procedures for Using Support Tool (MC-Miel)
1,2,3...
DIFU
R4
Preset data is
set in DM area.
IOWR
=Flag
ER Flag
D00100 86A0
D00101 0001
synchronization with "Feedback value" specified in the master axis classifica-
tion causes the MC Unit to operate the slave axis misconceiving that the mas-
ter axis moved from the position before the preset to the one after the preset.
Parameters in the servo driver can be edited using the support tool for MC
Unit. It is also possible to read or write data from or to the servo driver using
IORD/IOWR instructions of the CPU Unit.
These functions enable the PLC to manage the parameters of the servo
driver.
Refer to the servo driver's manual for more details.
Note Servo parameters operate with the setting saved in the servo driver. There-
fore, it will be required to setup parameters of a driver when the driver is
replaced.
1. Connect the servo driver and MC Unit together.
2. Select the axis to edit, then press the button marked "Servo driver a PC".
Servo parameter data inside of the servo driver will be read. Pressing the
"Parameter Initialize" button will bring the parameters in the edit window
back to their default values.

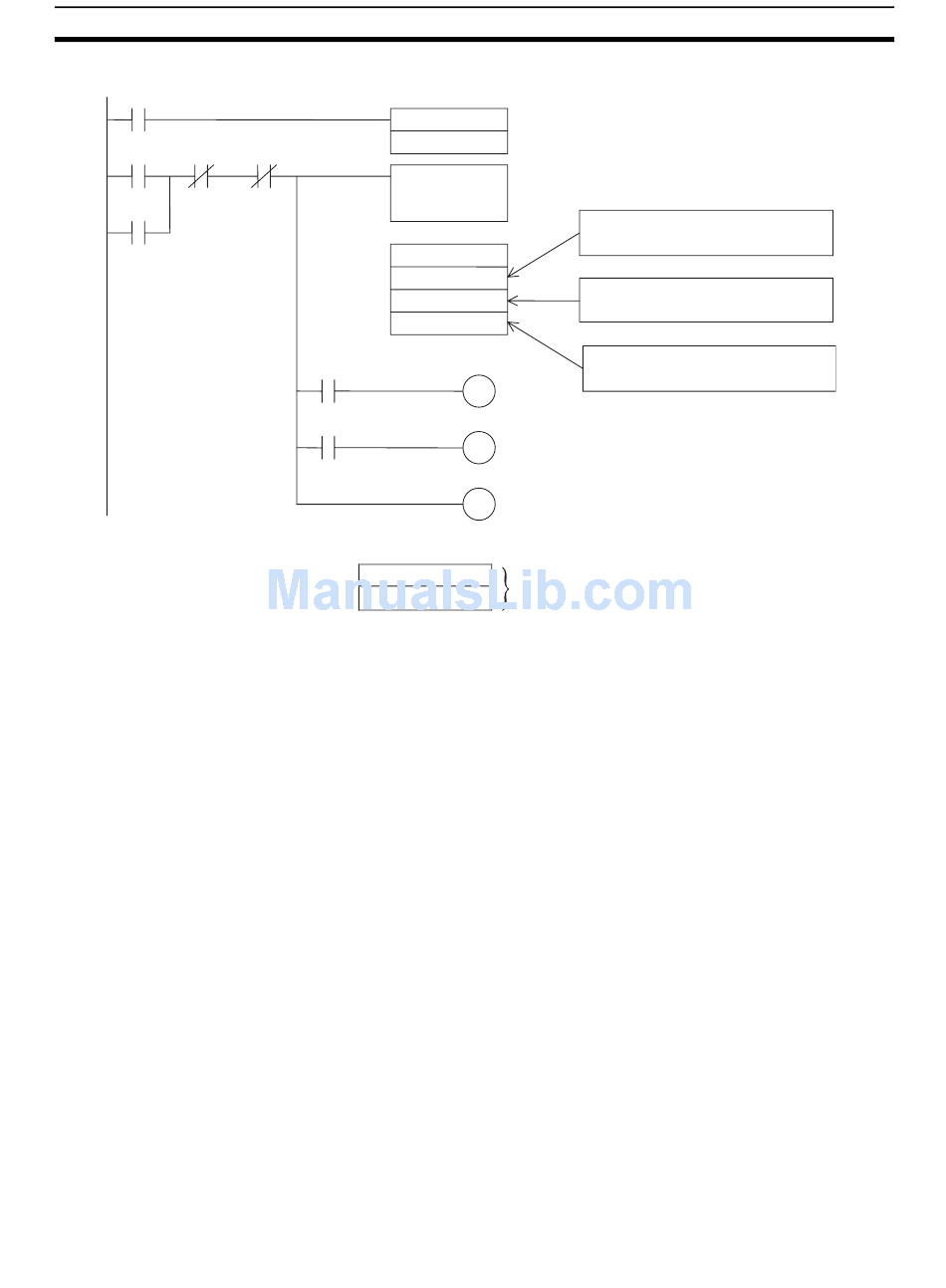

R1
Specify the address for the present
position preset of Axis 1.
#4000
Specify the first word of the transfer
source in which the preset value has
D0100
been set.
#28000
Specify the No. of transferred words
R3
and transfer destination unit No.
R4
* R1 to R4 are work bits.
R2
← indicating 100000 [command unit]
