Data Transfer and Storage

5-1 Data Transfer and Storage
5-1-1

Data Transfer Overview

1,2,3...
Personal Computer
MC Unit
System parameters
Servo parameters
Position data
System variables
Present Position Preset
Note
194

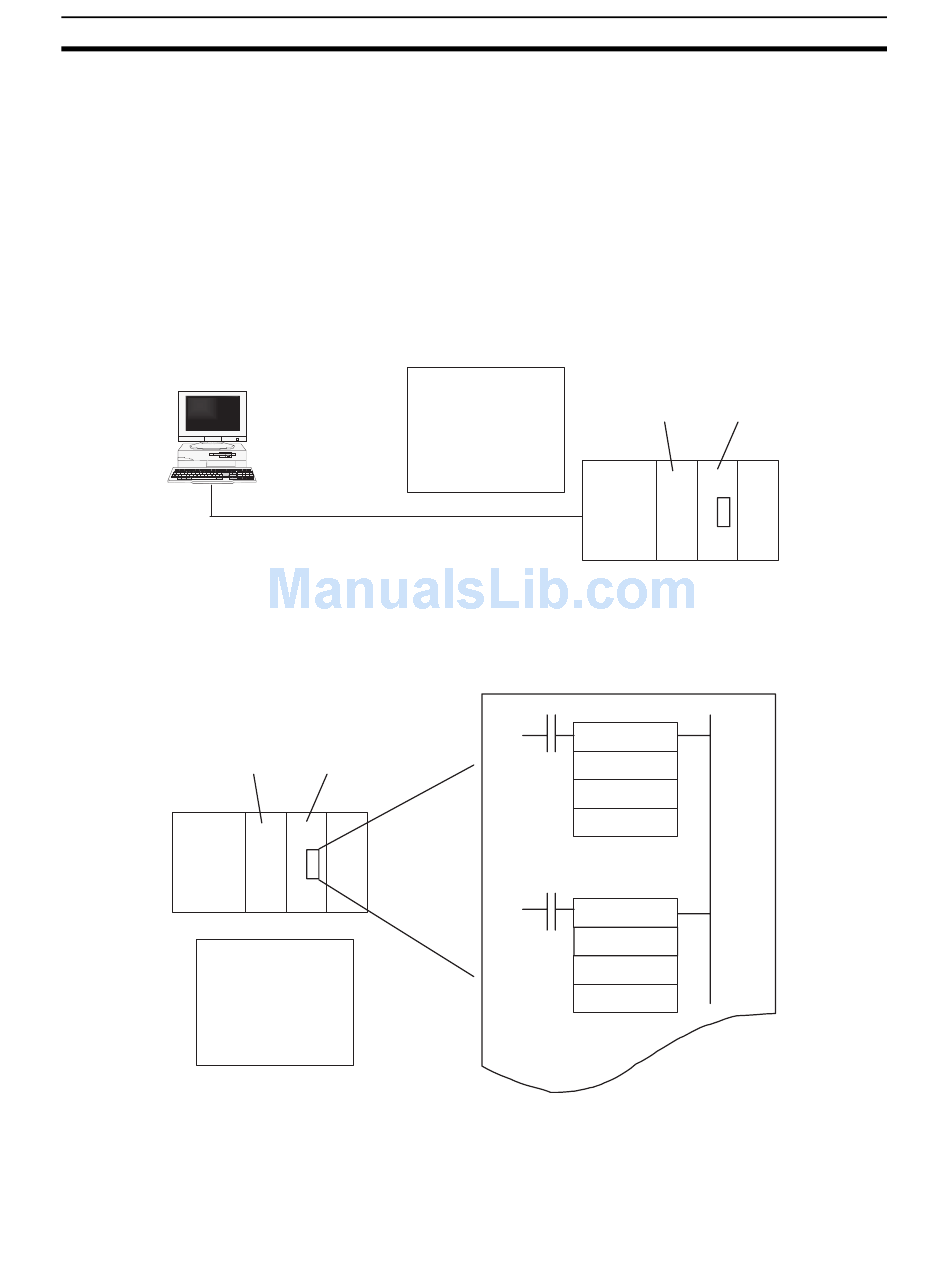

The following methods are available for transferring data between CPU and
MC Units.
1. Download or upload data from Support tool
Programs, system parameters, servo parameters, position data, Cam data
created with Support tool, can be downloaded to or uploaded from the MC
Unit.
The system parameters, servo parameters, and position data in the MC
Unit can be uploaded to MC-Miel. Servo parameters can be transferred to
the memory in the servo driver.
Program
System parameters
Support Tool
Servo parameters
Position data
Cam data
2. Read and write data in the MC Unit directly using IOWR/IORD instructions
in the ladder program
The IOWR/IORD instructions can be used to read or write data while the
CPU Unit is running.
CPU Unit
Make sure that parameters and data are appropriate to operate.
MC Unit CPU Unit
Ladder program
IOWR
IORD
Section 5-1
