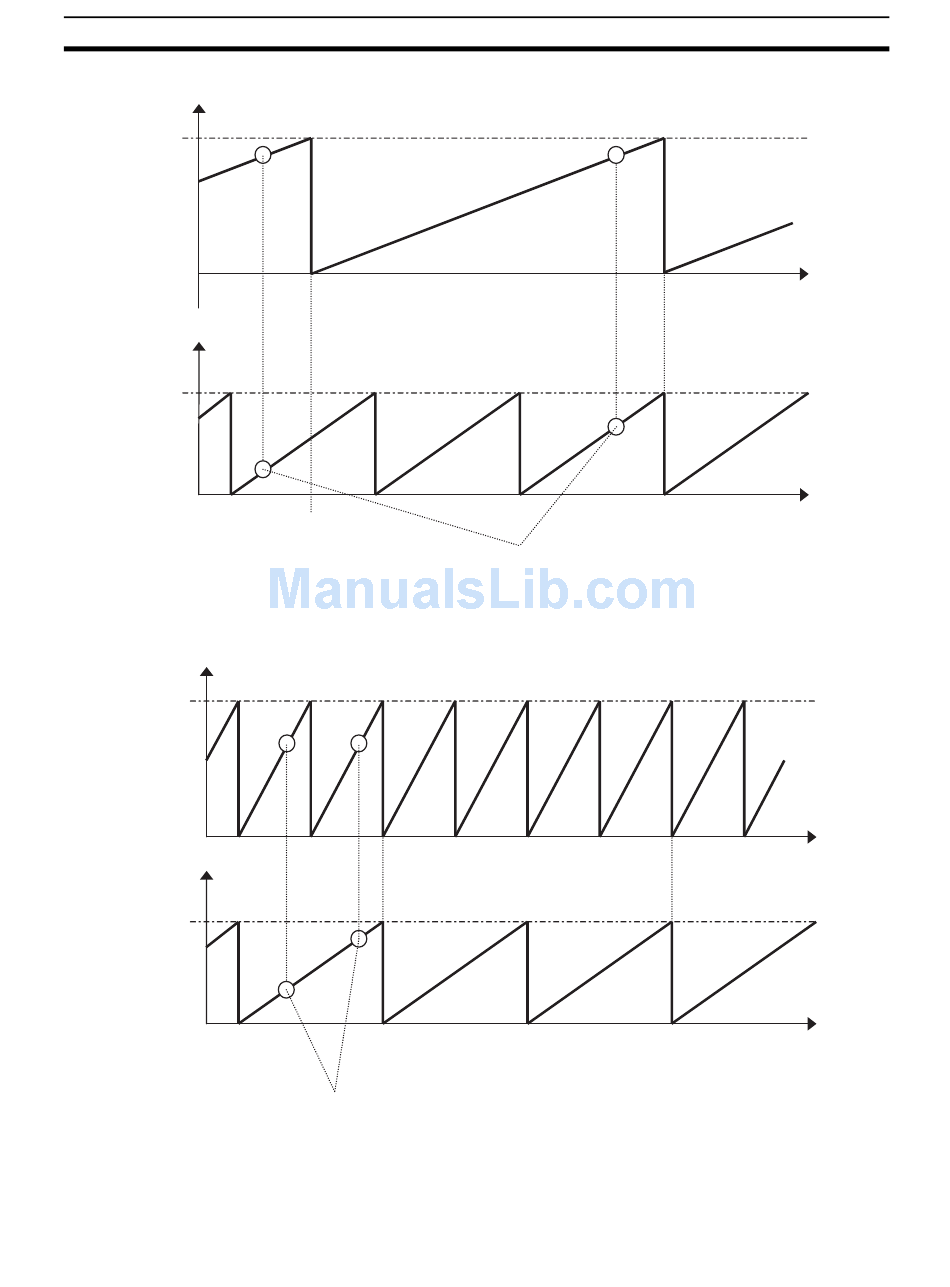

Coordinate System
When Multi-turn Limit Setting is not Adjusted
Multi-turn data
Pn205
0
Machine coordinate
system
0
When Multi-turn Reset
Cycle is Shorter than
Machine Coordinate
System Cycle
Multi-turn data
Pn205
0
Machine coordinate
system
0
The same present value cannot be obtained from the same multi-turn data.
The same present value cannot be obtained from the same multi-turn data.
Similar to the case above, the correct present value cannot be obtained when
the reset cycle of the multi-turn data is shorter than the cycle of the machine
coordinates system.
Section 9-3
Rotation
amount
Rotation
amount
Rotation
amount
Rotation
amount
521
