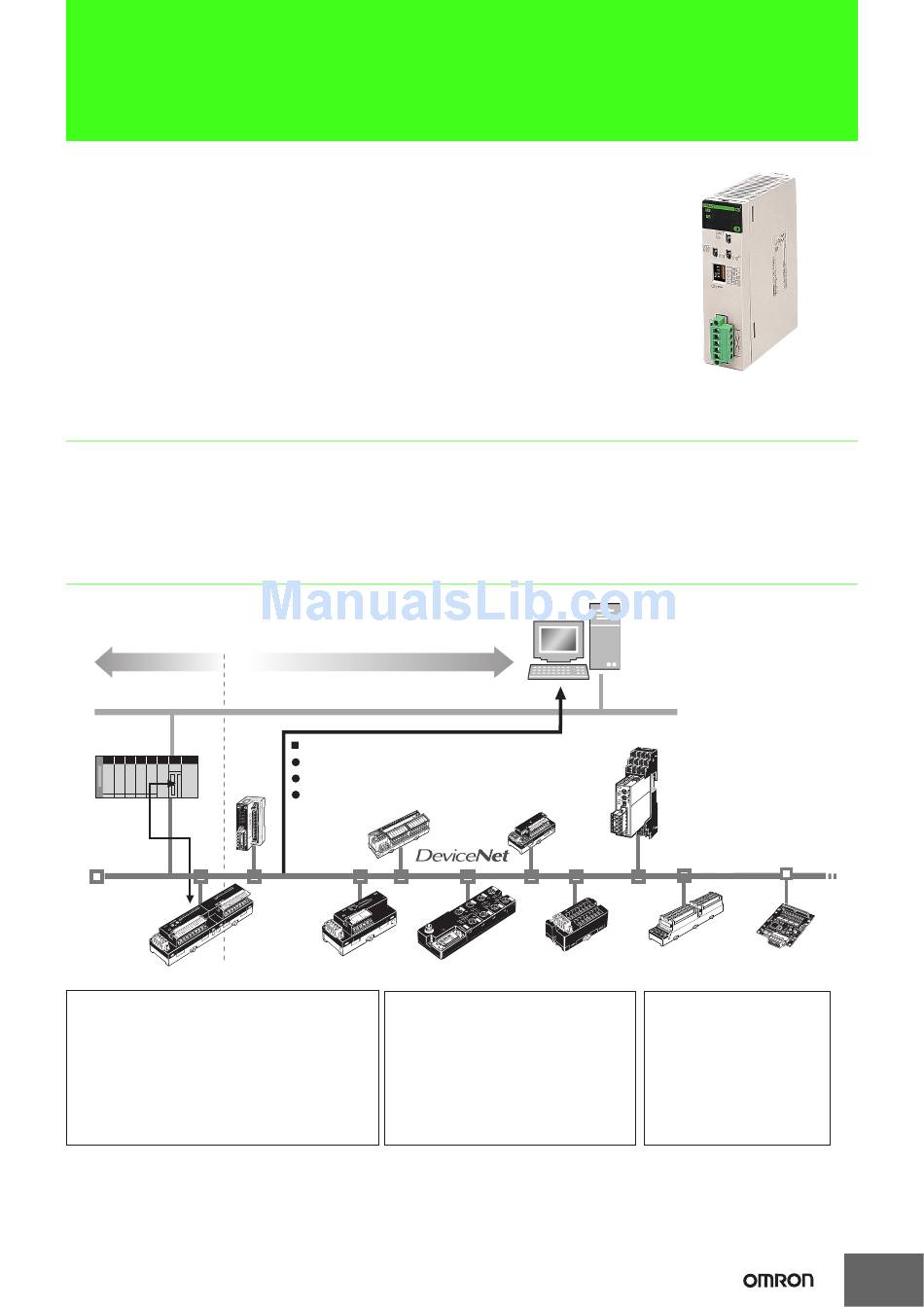

CS-series DeviceNet Unit
CS1W-DRM21-V1
A DeviceNet Unit for the CS Series
That Boasts Industry-leading
Performance and Functions

Features

• Allows control of up to 32,000 points (2,000 words) per master, and ensures a high degree of simultaneity between data.
• Can be used as both a master and a slave at the same time.
• Equipped with settings and monitor functions aimed at improving both design and startup efficiency. Achieve maximum performance by using
in combination with a Configurator.
• Files of master and slave settings can be uploaded and downloaded using memory cards, allowing effective debugging and easier setup.

System Configurations

Control system
Ethernet
PLC
DRT2-series
MIL Connector
Terminals
Control
information
DRT2-series
Smart Slave
Remote I/O Terminals
Reduce Setup Time
• Moving average processing function
Network power supply monitor function
• Number of A/D conversion points
Input filter function
(conversion cycle) setting
Power-ON inrush current
• Peak/bottom hold function
protection function
• Top/valley hold function
Communications speed
auto-detect function
• Percentage change calculation
• Scaling function
function
• User compensation function
• Cumulative counter
Note: The number of contact operations monitor function and the cumulative ON time monitor function cannot be used simultaneously for the same
contact.
Maintenance system
Maintenance information
Common Smart Slave Functions
Network power supply voltage monitor
Unit/Connected device comments
Unit power-ON time monitor
DRT2-series
Remote I/O Terminals
DRT2-series
Relay Output Terminals
Remote I/O Terminals
Models with 3-tier
Terminal Blocks
DRT2-series
Smart Slave
Analog I/O Terminals
Reduce Downtime
Unit comments function
Connected device comments function
I/O power supply monitor function
Sensor power supply short-circuit detection function
External load short-circuit detection function
Disconnected sensor detection function
DeviceNet
Configurator
E5ZN-DRT
Smart Slave DeviceNet
Communications Unit
DRT2-series
DRT2-series
Smart Slave
Smart Slave
Environment-resistive
Sensor Terminals
Terminals
CSM_CS1W-DRM21-V1_DS_E_5_3
CS1W-DRM21-V1
DRT2-series
Smart Slave:
Screw-less Clamp
DRT2-series
Terminals
Board Terminals
with MIL Connectors
Improve Maintenance
Operation time monitor function
• Contact operations counter (See note.)
• Unit conduction time monitor function
• Total ON time monitor function (See note.)
• Network power supply voltage monitor function
• Communications error log function
• Last maintenance date
• Comparator function
• Selectable output value after error
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CS1W-DRM21-V1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Omron CS1W-DRM21-V1

  • Page 1 CS-series DeviceNet Unit CS1W-DRM21-V1 CSM_CS1W-DRM21-V1_DS_E_5_3 A DeviceNet Unit for the CS Series That Boasts Industry-leading Performance and Functions CS1W-DRM21-V1 Features • Allows control of up to 32,000 points (2,000 words) per master, and ensures a high degree of simultaneity between data.
  • Page 2 CS1W-DRM21-V1 Communications Specifications Item Specifications Communications protocol DeviceNet Multi-drop and T-branch connections can be combined (for trunk and branch lines) *1 Connection methods Baud rate 500 Kbps, 250 Kbps, or 125 Kbps Special 5-wire cables (2 signal lines, 2 power lines, 1 shield line)
  • Page 3 • The standards are abbreviated as follows: U: UL, U1: UL(Class I Division 2 Products for Hazardous Locations), C: CSA, UC: cULus, UC1: cULus (Class I Division 2 Products for Hazardous Locations), CU: cUL, N: NK, L: Lloyd, and CE: EC Directives. • Contact your OMRON representative for further details and applicable conditions for these standards. Specifications...
  • Page 4 CS1W-DRM21-V1 External Interface DRM21 Indicators UNIT Unit No. switch This switch sets the unit number of the DeviceNet Unit as a one-digit hexadecimal value. NODE Node address switches These switches set the node address as a two-digit 1 DR0 decimal value.
  • Page 5 CS1W-DRM21-V1 Related Manuals Cat. No. Manual Products Contents CS/CJ-series DeviceNet Unit CS1W-DRM21(-V1) and CJ1W-DRM21 W380 Information on CS/CJ-series DeviceNet Units. Operation Manual DeviceNet Units C200HW-DRM21-V1 DeviceNet Master Unit Information on C200H-series, CVM1, and CV- DeviceNet CQM1-DRT21 I/O Link Unit series DeviceNet Units, as well as general...
  • Page 6 (a) Exclusive Warranty. Omron’s exclusive warranty is that the Products will be free from defects in materials and workmanship for a period of twelve months from the date of sale by Omron (or such other period expressed in writing by Omron). Omron disclaims all other warranties, express or implied.
