Command Details

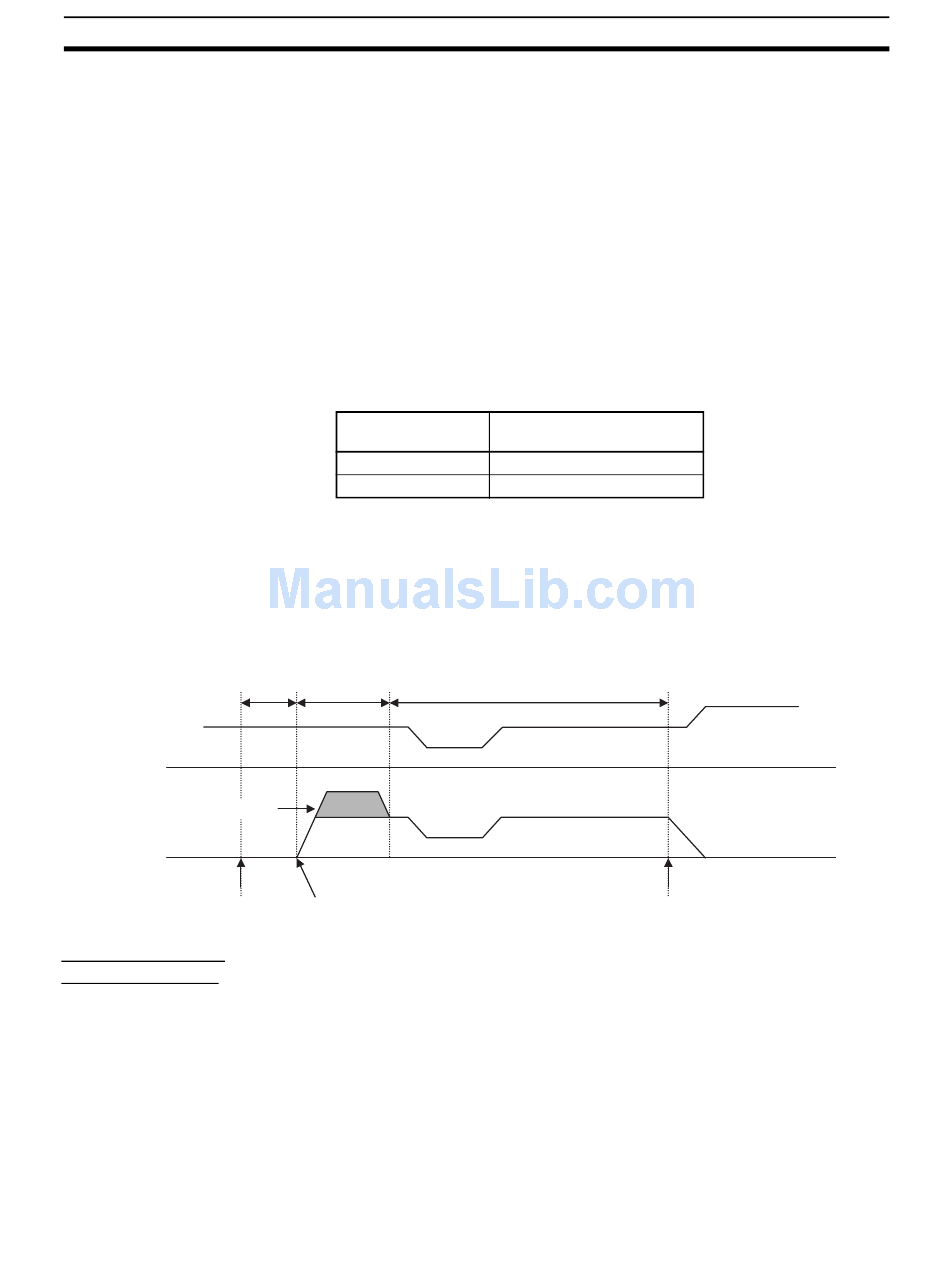

Waiting for marker
sensor signal
Master axis
Trailing operation travel
distance
Slave axis
SYNC command
Synchronization
Cancel (SYNCR)
Command type
Format
2. The slave axis will start trailing operation when the marker sensor sig-
nal is input. The trailing operation will be completed once the slave axis
synchronizes with the position of the master axis (Marker sensor ON
position + catch-up position offset).
3. The slave axis is operated synchronizing with the master axis in the ra-
tio of 1 to 1.
• Catch-up position offset is specified as the distance from Marker sensor
ON position on the coordinate system of the slave axis.
• Marker sensor ON position is specified as the position on the coordinate
system of the slave axis.
• If the speed in synchronization exceeds the speed specified in the param-
eter [P2AA01: Maximum rapid feed rate], the alarm [3011h: Synchroniz-
ing slave axis excessive speed] will occur.
• Master axis classification determines whether to synchronize the slave
axis with the master axis command value or feedback value.
Master axis
classification
0 or omitted
1
• SYNC command execution will be completed when the trailing operation
is completed and the synchronization is established.
• During the command execution, the command code "0018h" is output to
the system variable "Command execution status" (SW0228 for Axis 1).
(For details of command codes, see 4-5 System Variables Command
Code in Command Execution Status on page 142.)
Trailing section
Synchronization section
Marker sensor ON
Synchronous operation executed with the synchronous command is can-
celled.
Single execution command
SYNCR_[<slave axis name>]{<travel distance for deceleration stop>} ---8---;
Ex: SYNCR_[J02];
Master axis value to
synchronize with
Command value
Feedback value
SYNCR command-
Section 6-3
297
