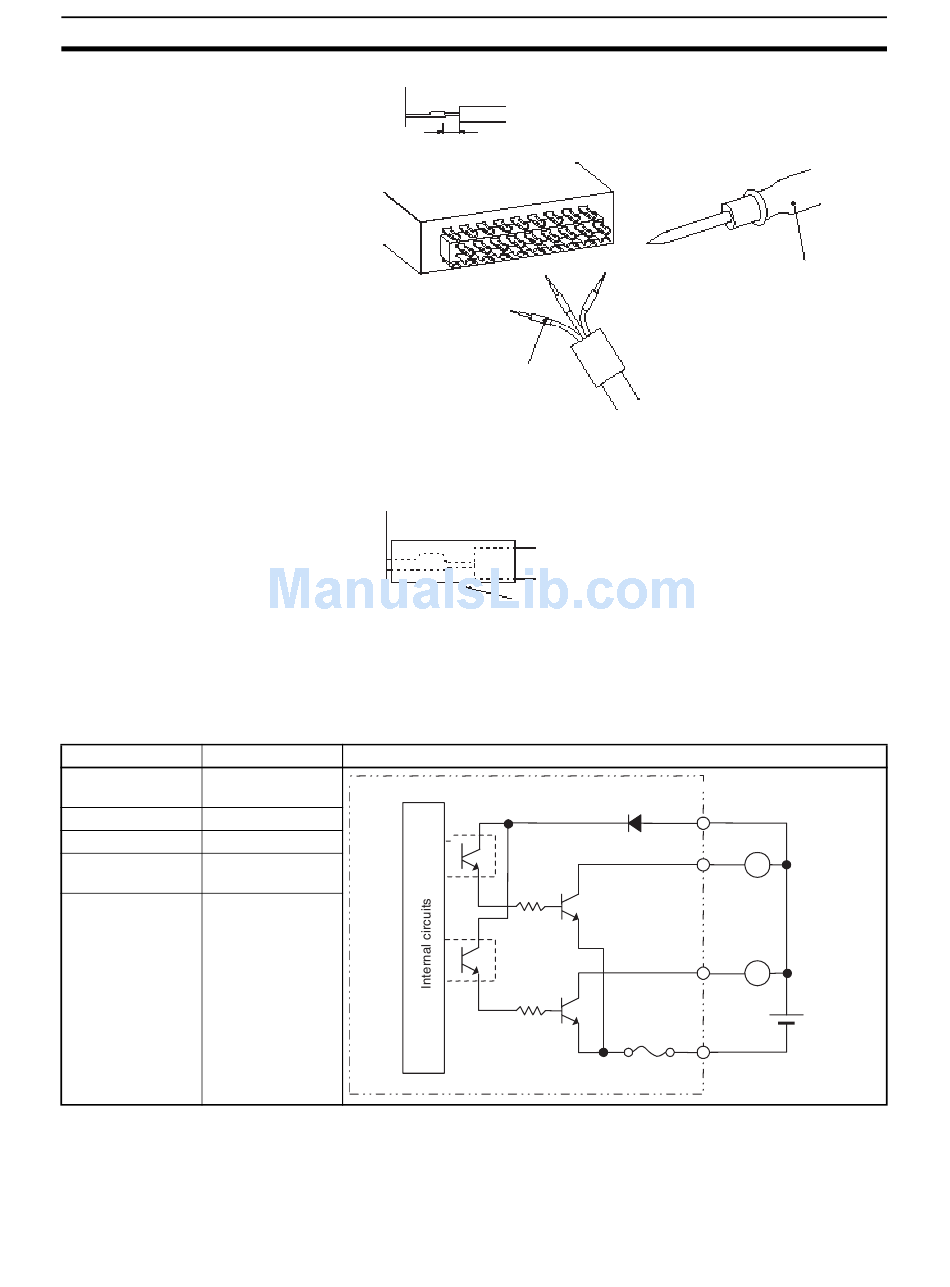

External I/O Circuitry
3-3-4

I/O Circuitry

Connector Interface
Circuits
Item Specifications
Max. Output Cur- 100mA/24VDC
rent
Leakage current 1mA or lower
Residual Voltage 1.5V or lower
24VDC ±10%
External Supply
Voltage
Number of Com- 2
mon
36
1 mm
Heat-shrink tube
Inner diameter:1.5, r=10
4. Pull the heat-shrink tubing back over the soldered area and heat the tubing
to shrink it.
• 24VDC Digital Output (2 outputs)
Heat-shrink tube
Circuitry
33 kΩ
33 kΩ
Fuse
Section 3-3
Soldering gun
+V
DO_00
L
DO_01
L
24 VDC
DO_COM
