Network Settings - LEGRAND Server Technology PRO3X User Manual

Network Settings

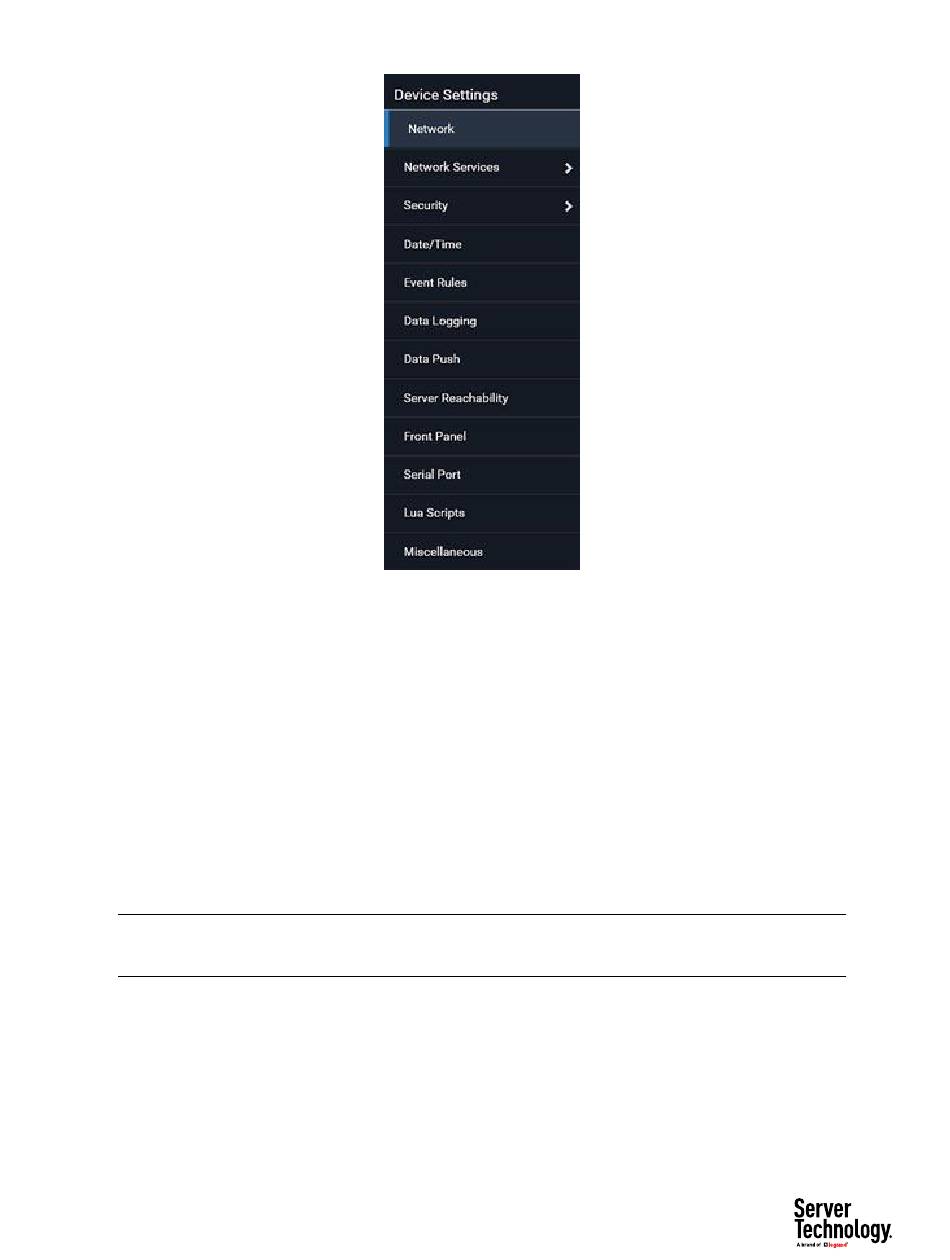

Configure wired, wireless, and Internet protocol-related settings on the Network page after connecting
the PRO3X to your network.
You can enable both the wired and wireless networking so that there are multiple IP addresses -- wired
and wireless IP. For example, you can obtain one IPv4 and/or IPv6 address by enabling one Ethernet
interface, and obtain one more IPv4 and/or IPv6 address by enabling/configuring the wireless interface.
This also applies in port forwarding mode so that PRO3X has more than one IPv4 or IPv6 address.
However, in the BRIDGING mode, there is only one IP address for wired networking. Wireless
networking is NOT supported in this mode.
Default gateways are configured per interface.
Important: In the bridging mode, only the IP parameters of the BRIDGE interface
function. The IP parameters of ETH1/ETH2 and WIRELESS interfaces do NOT
function.
▶
After enabling either or both Internet protocols:
After enabling IPv4 and/or IPv6, all but not limited to the following protocols will be compliant with the
selected Internet protocol(s):
158
