Other operations:

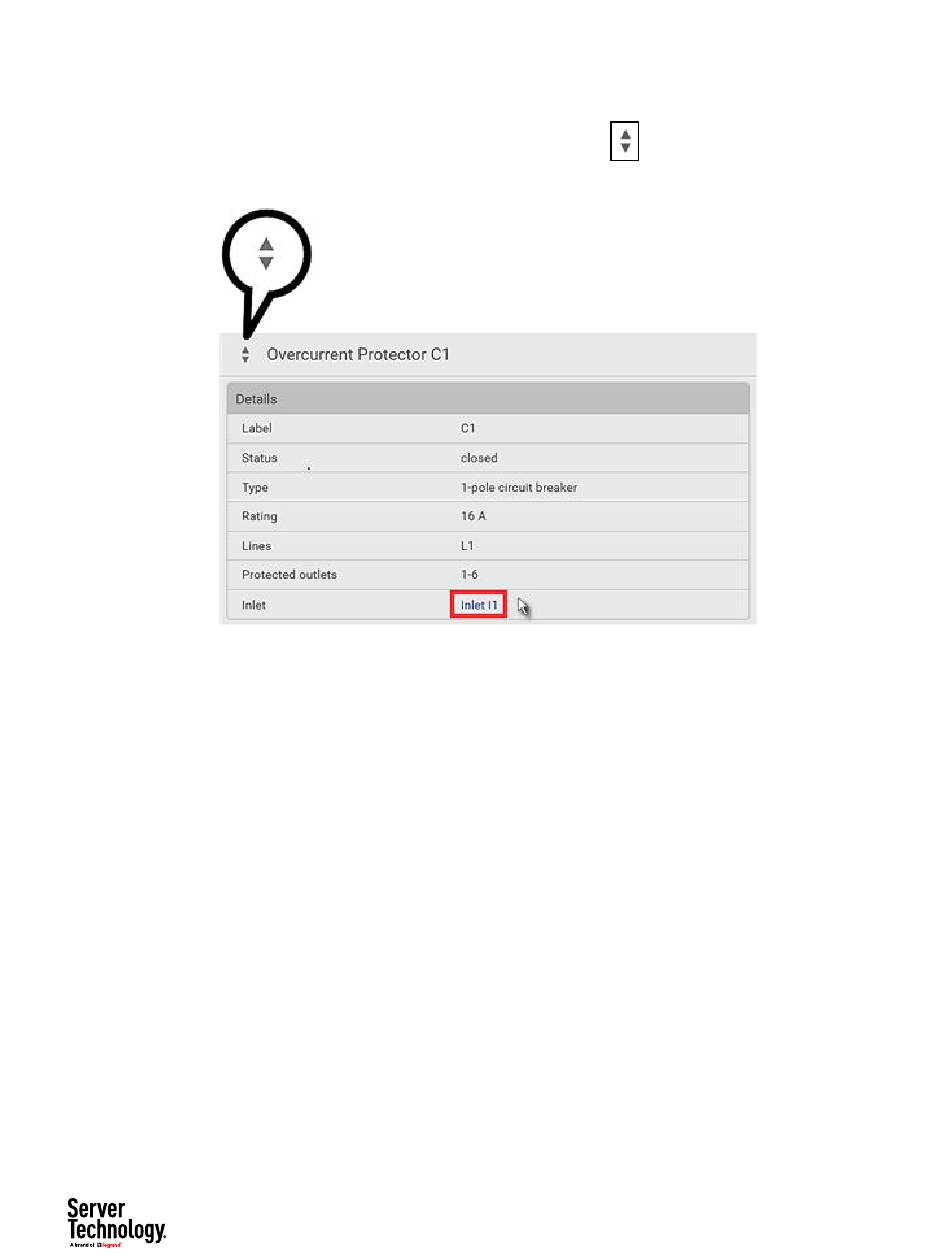

Go to another OCP's data/setup page by clicking the OCP selector
Go to the associated Inlet's data page by clicking the Inlet link in the Details section.

Peripherals

If there are environmental sensor packages connected, they are listed on the Peripherals page.
An environmental sensor package may contain:
Numeric sensors: Detectors that show both readings and states, such as temperature sensors.
State sensors: Detectors that show states only, such as contact closure sensors.
Actuators: An actuator controls a system or mechanism so it shows states only.
PRO3X communicates with managed sensors/actuators only and retrieves their data. One PRO3X can
manage a maximum of 64 sensors/actuators.
Open the Peripheral Devices page by clicking Peripherals in the Menu. Then you can:
Perform actions on multiple sensors/actuators by using the control/action icons on the top-right
corner.
Go to an individual sensor's or actuator's data/setup page by clicking its name.
Sensor/actuator overview on this page:
If any sensor enters an alarmed state, it is highlighted in yellow or red. An actuator is never highlighted.
on the top-left corner.
131
