Tip: You can set an event rule for sending a notification when this sensor enters the fault state.
• •
The above event is logged in the internal event log.
▶
To check status of power-sharing mode:
• •
Check the state of the power supply sensor. For SNMP, the sensor type is i1smpsStatus (46).

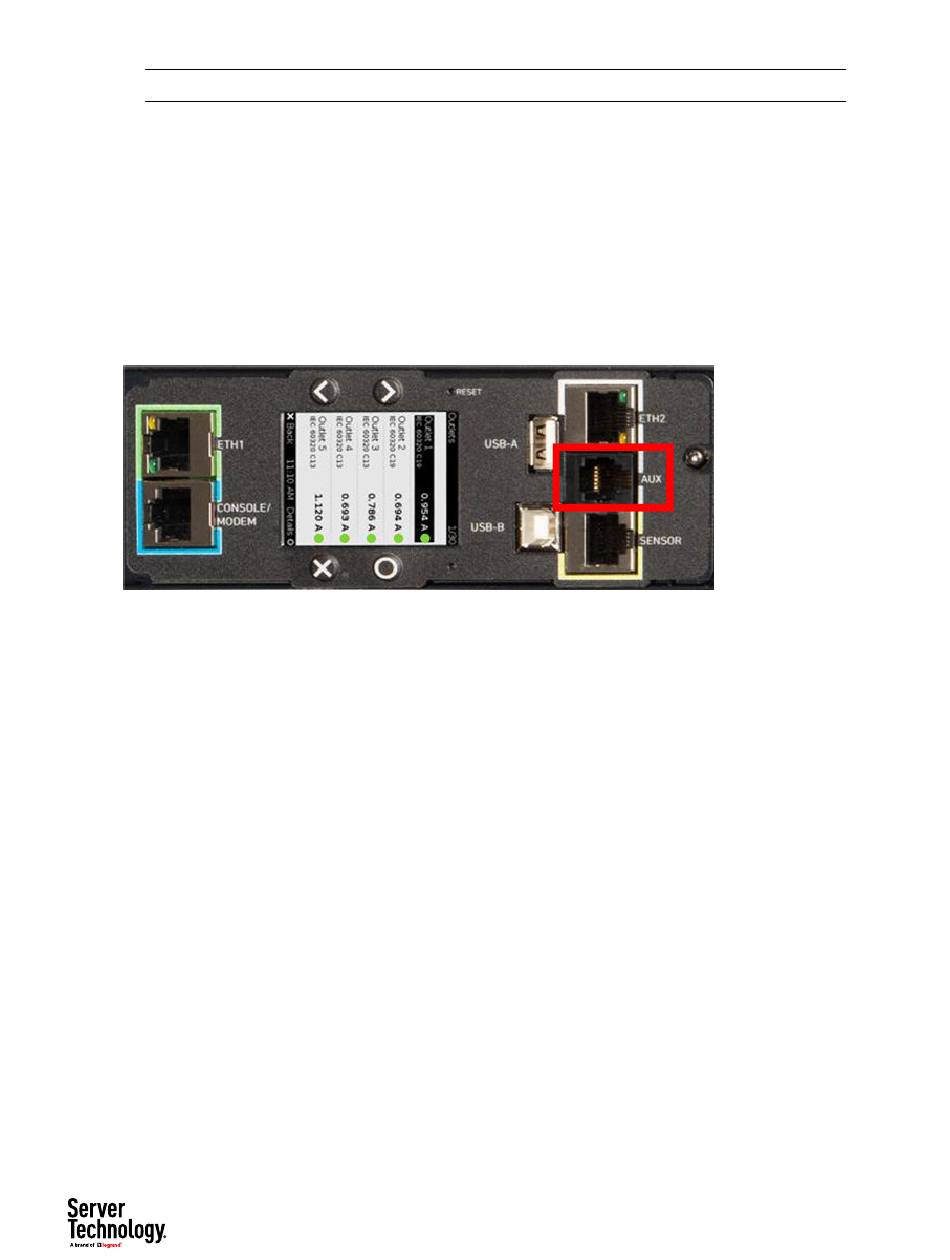

Power Sharing Port on PRO3X

PRO3X NIM8G2 controllers include the "AUX" port for power sharing.
Connections can be made between 2 units with AUX ports using a RJ12-to-RJ12 crossover cable.

Power-Sharing Configurations and Restrictions

When either PDU enters power-sharing mode, BOTH PDUs support "less" external equipment than
usual. It is strongly recommended to remove specific equipment from both PDUs when making a
power-sharing connection.
▶
Configuration limitations on "both" PDUs:
• • NO USB wireless LAN adapter is connected.
That is, you have to connect both PDUs to a "wired" network if LAN access is wanted.
• •
After either PDU enters the power-sharing mode, you must NOT physically remove or add any
environmental sensor packages to either PDU.
• •
DX2-ENVHUB4 can only be used in a power sharing configuration with PRO3X devices.
