They show one of the managed states.
• • For managed 'numeric' sensors, their readings are retrieved and displayed. If any numeric sensor is
disconnected or its reading cannot be retrieved, it shows "unavailable" for its reading.
▶
Unmanaged sensors/actuators:
• •
PRO3X does NOT communicate with unmanaged sensors/actuators.
• • Unmanaged sensors/actuators are listed only when they are physically connected to PRO3X.
They disappear from the web interface when they are no longer connected.
• •

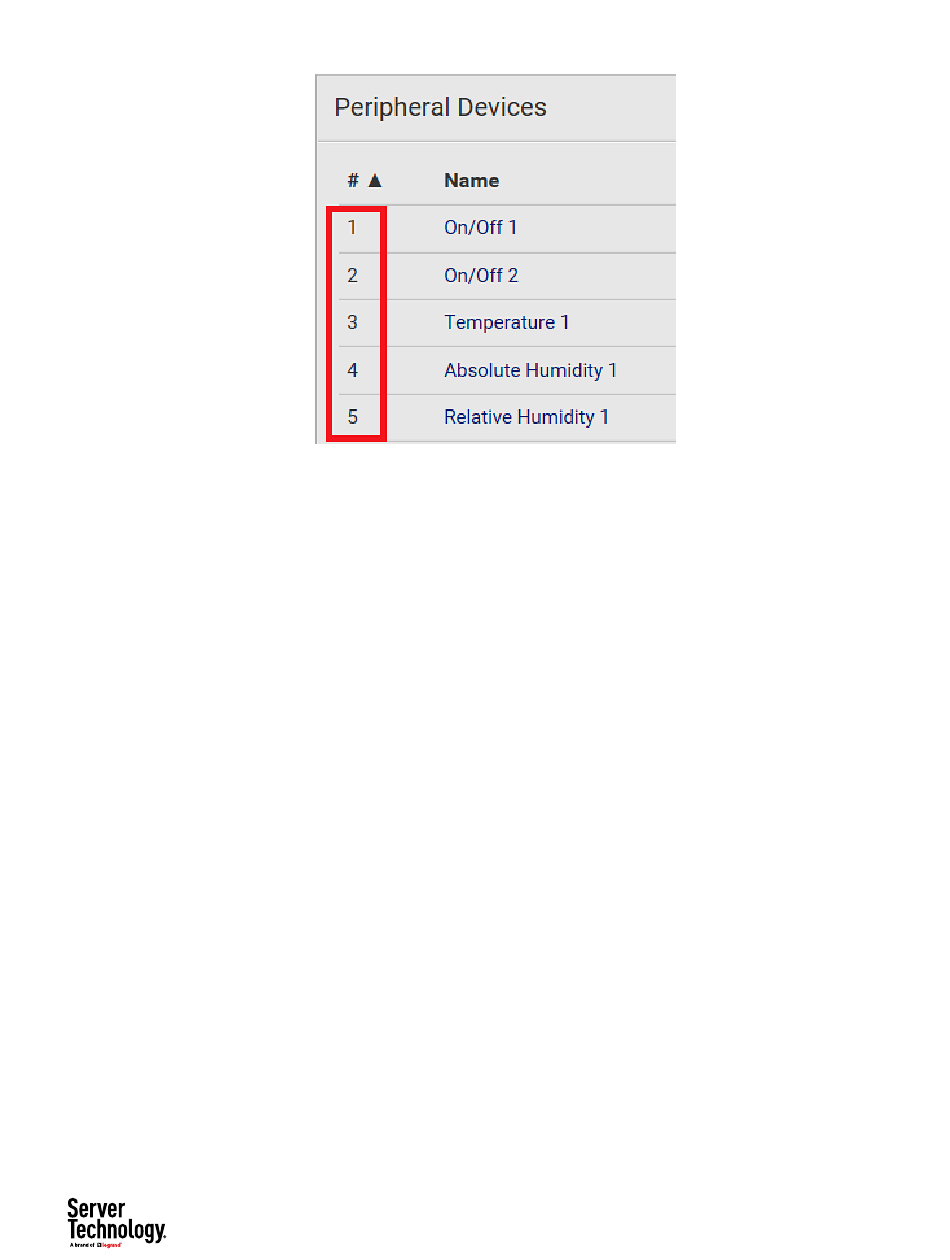

They do not have an ID number.
• •
They show the "unmanaged" state.

Sensor/Actuator States

An environmental sensor or actuator shows its real-time state after being managed.
Available sensor states depend on the sensor type -- numeric or state sensors. For example, a contact
closure sensor is a state sensor so it switches between three states only -- unavailable, alarmed and
normal.
Sensors will be highlighted in yellow or red when they enter abnormal states.
An actuator's state is marked in red when it is turned on.
▶
Managed sensor states:
In the following table, "R" represents any numeric sensor's reading. The symbol <= means "smaller
than" or "equal to."
137
