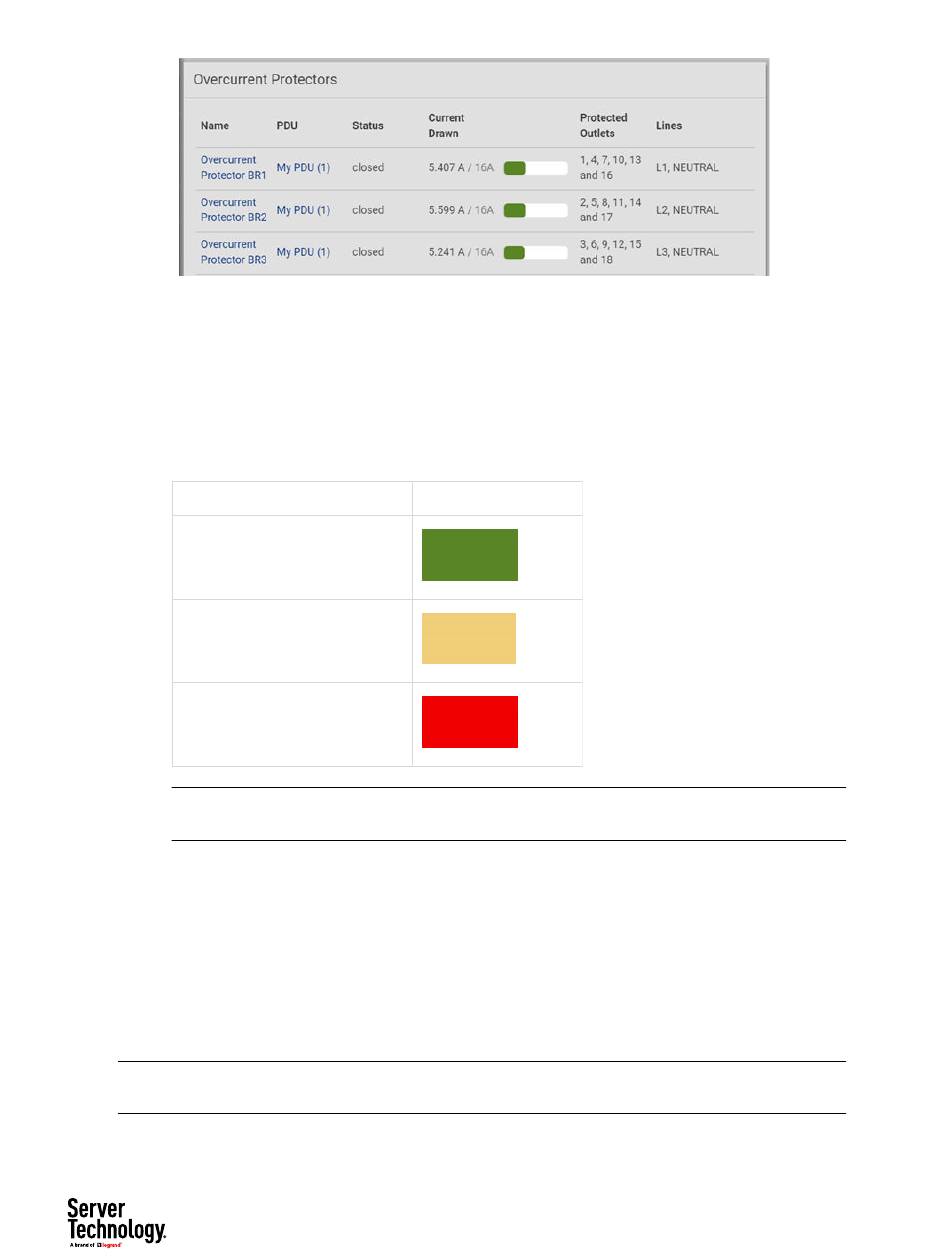

Overcurrent protector overview:
• •
OCP status - open (tripped) or closed
• •
Current drawn, rated current and current bar
• The smaller, gray text adjacent to "current drawn" is the rated current of each OCP. •
• The RMS current bars change colors to indicate the status if the OCP thresholds have been •
configured and enabled.
Status
normal
above upper warning
above upper critical
Note: The "below lower warning" and "below lower critical" states also show yellow and red
colors respectively. However, it is not meaningful to enable the two thresholds for current levels.
• •
Protected outlets, which are indicated with outlet numbers
• •
Associated lines
▶
To configure current thresholds for multiple overcurrent protectors:
OCP thresholds, when enabled, help you identify the OCP whose RMS current enters the warning or
critical level with the yellow or red color. In addition, you can automatically generate alert notifications
for any warning or critical status.
Note: By default, upper thresholds of an OCP's RMS current have been configured. You can modify them
as needed.
