A Closer Look at the Universal Cx Outlet:

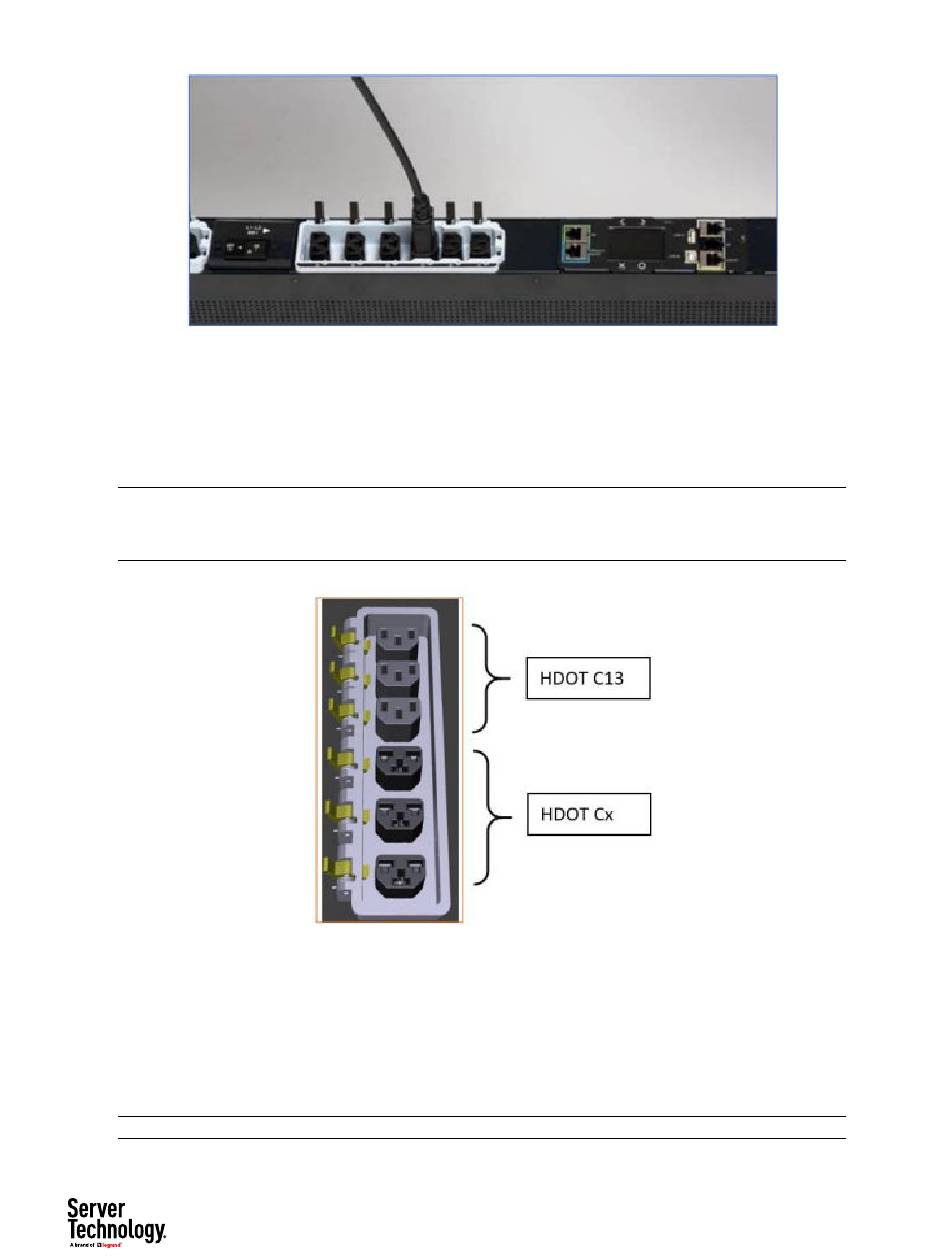

The C19 outlets are replaced with the universal Cx outlet that accepts either a C14 or C20 connector
and thus works as two outlets in one. This helps in easy outlet swap-out. The PRO3X has 36-fixed
outlets, 18 C13 and 18 HDOT Cx, spread across the length of the PDU for easy access.
Note:The Cx outlet is not an IEC connector. When plugging in a C14 or C20 connector into a Cx outlet, it
is recommended to apply moderate force to ensure best cable retention. Not every outlet on the PRO3X
PDU is a Cx outlet.

Alternating Branch Metrics

Alternating branch-current metrics are available on all PRO3X units, divided into 18 HDOT, and 18 HDOT
Cx outlets. This means each branch carries a phase. An example of alternating branch in the PRO3X unit
design is the following layout:
L1 > L2 > L3 > L1 > L2 > L3.
Note: Alternating phase technology is not available with the PRO3X
