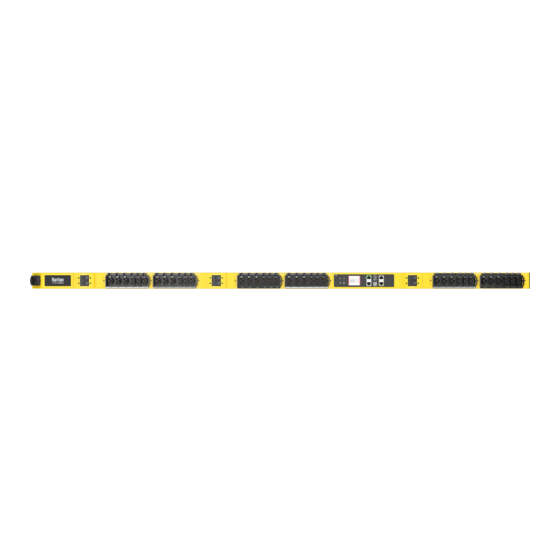

Raritan PX4

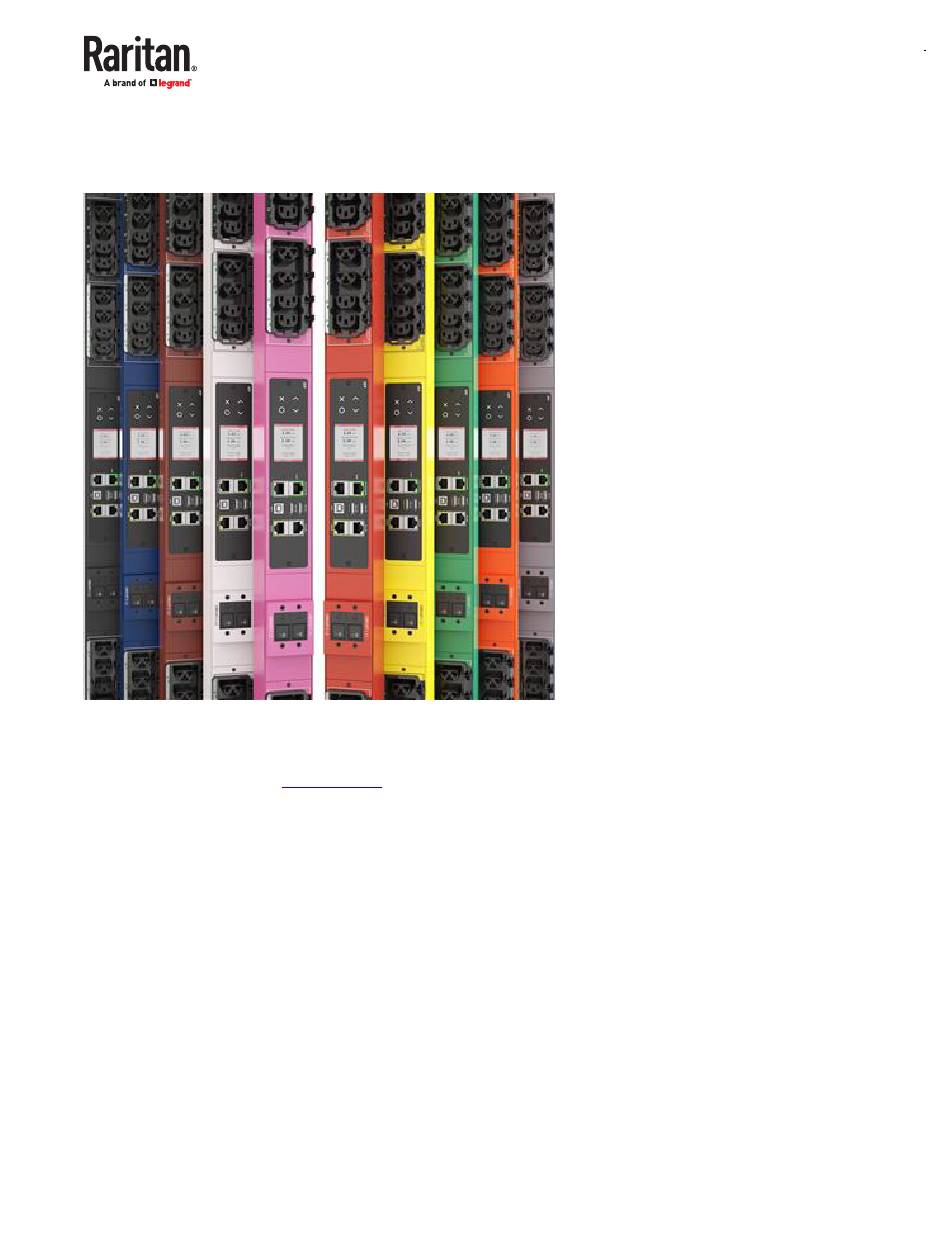

Thank you for purchasing the Raritan PX4 intelligent power distribution unit (PDU).
This Quick Setup Guide explains how to install and configure the PX4. For more, access online help from the web
interface or go to Raritan's
Safety Precautions
WARNING! Before installing or operating this product, read and understand all sections in this guide. Failure to heed any of
the following WARNINGS may result in electric shock, fire, personal injury and death. Prior to operating this product, the
user should read the online help and specifically the warnings in the online help.
WARNING! Connect this product to an AC power source with a voltage that is within the range specified on the product's
nameplate.
WARNING! Connect this product to an AC power source that is current limited by a suitably rated fuse or circuit breaker in
accordance with national and local electrical codes.
WARNING! Use this product in a dry location.
WARNING! Connect this product to a protective earth ground. Never use a "ground lift adaptor" between the product's
plug and the wall receptacle.
PX4 Quick Setup Guide | PDU_G4_QSG_A2_4.0.20
255-80-0078-00-RoHS
Support
page.
page
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for LEGRAND Raritan PX4
Summary of Contents for LEGRAND Raritan PX4
- Page 1 Raritan PX4 Thank you for purchasing the Raritan PX4 intelligent power distribution unit (PDU). This Quick Setup Guide explains how to install and configure the PX4. For more, access online help from the web interface or go to Raritan's Support page.
- Page 2 WARNING! If this product is a model that requires the assembly of the line cord or plug, the assembly must be performed by a licensed electrician, and the line cord or plugs used must be rated based on the product's nameplate ratings, as well as national and local electrical codes.
- Page 3 • • Slide flat brackets onto rear of 0U model and align over Part Numbers: holes at each end. • • 250-70-0140-00: button (2) • • Press button into bracket hole and turn with finger. • • 250-70-0141-00: bracket (2) •...
- Page 4 E8 Outlets with Plug Retention Shells • • Plug in and remove plugs normally. • • No tools required. • • Outlet's shell holds plug securely without clips. Threaded Grounding Point The primary means of earthing the product is via the power cord connected to an earthed receptacle; however, some models have a supplementary, threaded grounding point for connection to TT earthing systems or where required by the Authority Having Jurisdiction (AHJ) per national, regional or local applicable electric codes.
- Page 5 USB port on the hub. Default Login • • Username: admin • • Password: legrand Choose Initial Configuration Method Depending on your networking environment, choose the best method to initially configure your PX4. • • Using a computer: Initial Configuration in a Web Browser (on page 5).
- Page 6 The IP address is available using the front panel display. 1. Press the X or O button to go to the Main Menu. 2. Use the arrow buttons to scroll to Device Info, then press O. 3. Use the arrow buttons to scroll through the information and view the IP address. 4.
- Page 7 config:# network ipv4 gateway 192.168.56.126 config:# network dns firstServer 1.1.1.1 secondServer 1.0.0.1 config:# apply Initial Configuration with PDView App 1. Install the Raritan PDView app on an iOS or Android mobile device. Android device must support USB "On-The-Go" (OTG). • https://itunes.apple.com/app/raritan-pdview/id780382738 •...
- Page 8 5. If the factory-default login credentials remain unchanged, or if PDView has been configured with accurate login credentials, PDView automatically logs in to the web interface of PX4. If PDView can't login automatically, the login screen displays instead and you must enter appropriate user credentials for login.
