To link cascaded units (Custom method):
1) On the PDU page, click the Link Cascaded Units button. The Link Cascaded Units dialog opens.
2) Enter the Primary Unit's administrator user name and password.
3) Select Custom Settings.

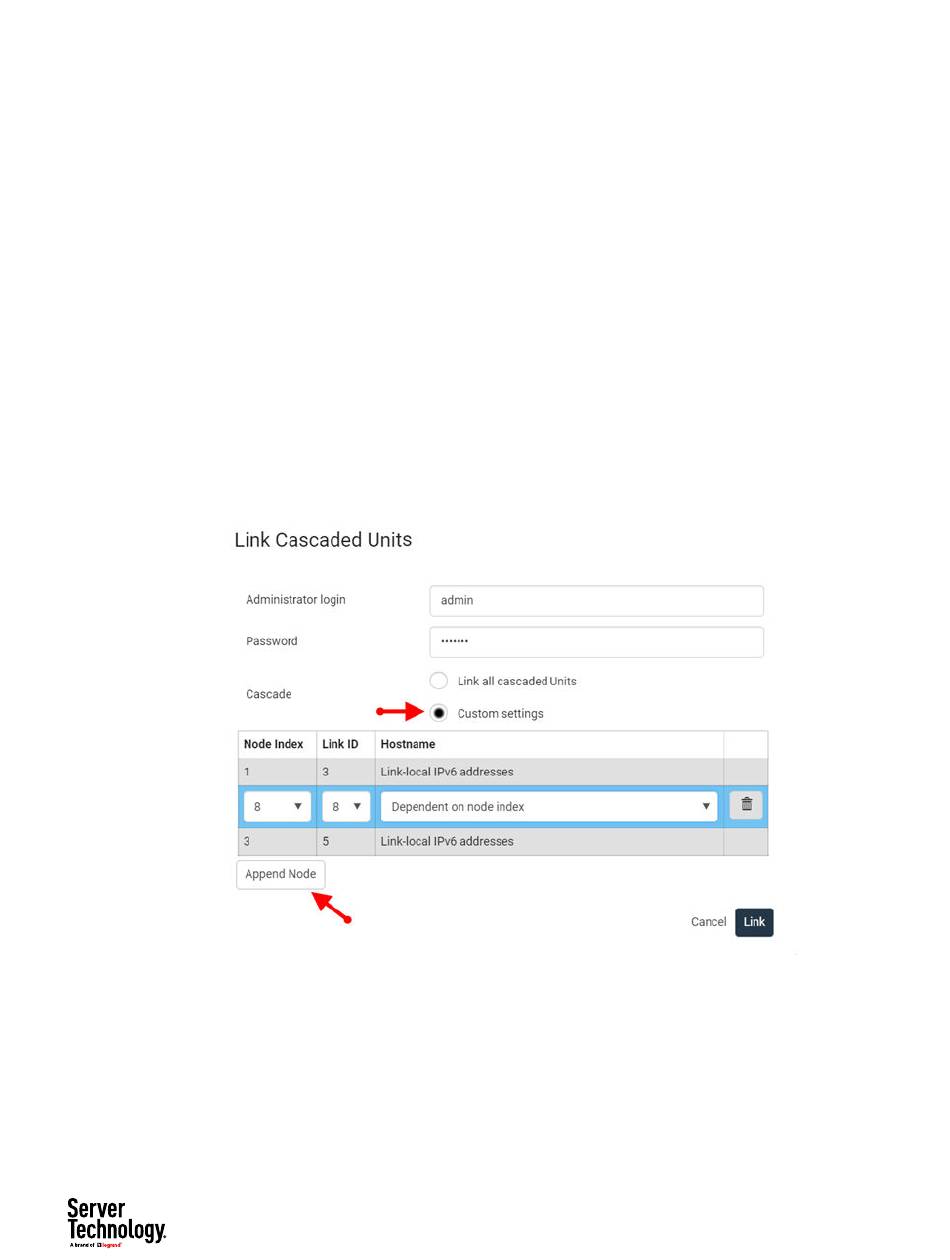

4) Click Append Node to add a row to the table, then complete each field in the row to describe how
the expansion unit should be linked. Repeat this step as needed to create a table of all nodes to link.
• • Node Index: Select the node index for the expansion unit you want to add. Node index 1 indicates
the first expansion unit connected to the primary unit, then expansion units are numbers
sequentially as you go down the cascaded chain.
• • Link ID: Select the Link ID that this expansion unit will be mapped to once linked.
• • Hostname: Select the hostname type to be assigned to this link unit.
▪ ▪ Link-local IPv6 address: Units are assigned IPv6 addresses that are accessible from the primary
unit.
▪ ▪ Dependent on node index: Units are assigned a URL that includes their node index number, for
example "expansion-1.pf-cascade", "expansion-2.pf-cascade", "expansion-3.pf-cascade", where
the node number indicates the expansion unit's position in the chain related to the primary
unit.
5) The completed table you create shows the process that will run.
6) Click Link to start the linking process. The table shows progress and then final results.
