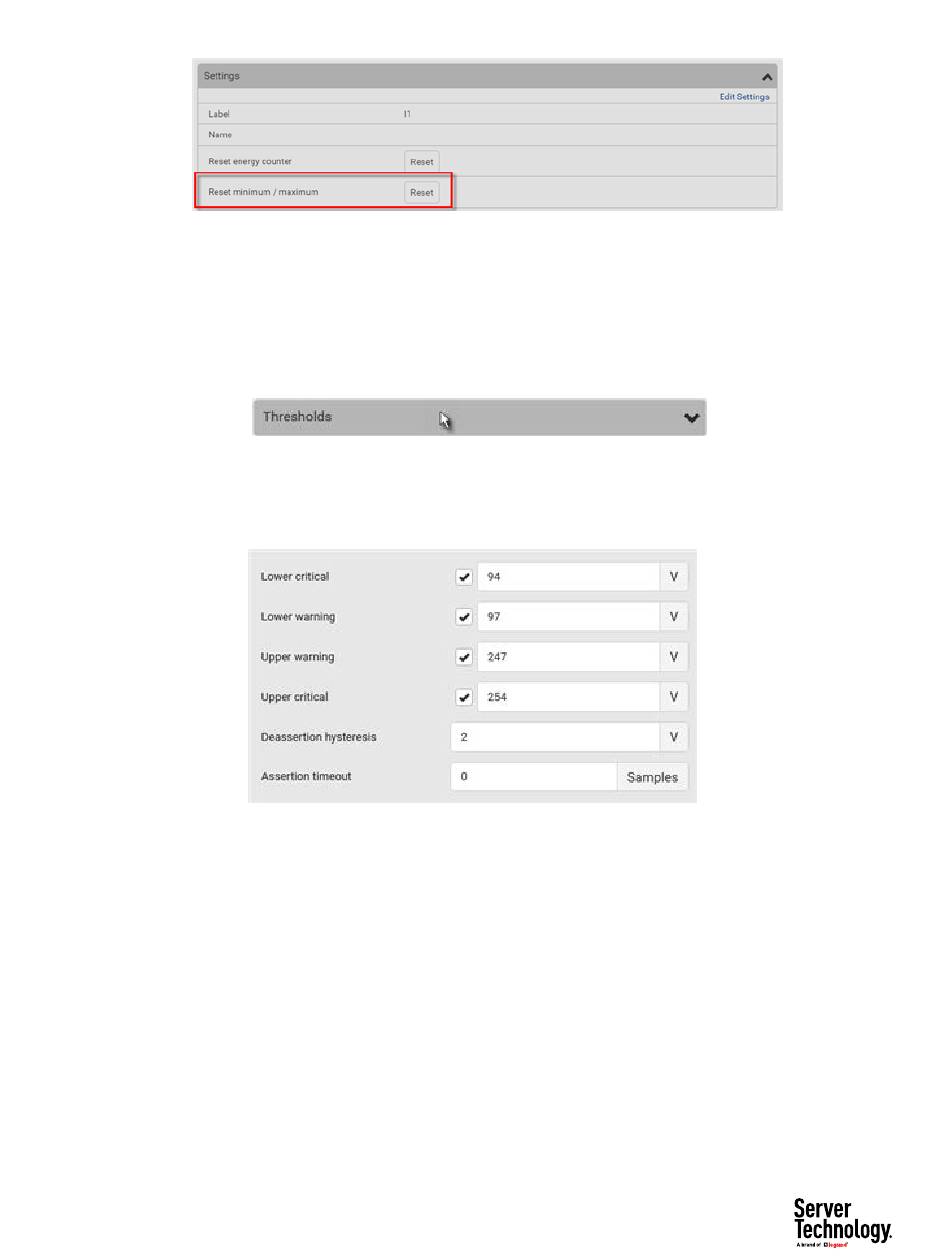

To configure inlet thresholds:
By default, there are pre‑defined RMS voltage and current threshold values in related fields. You can
modify them to meet your needs.
1) Click the Thresholds title bar at the bottom of the page to display inlet thresholds.
2) Click the desired sensor to open the settings.
3) To enable a threshold, select the corresponding checkbox.
4) Type a new value in the accompanying text box.
▶
Residual Current Monitor--Configure residual current thresholds:
If your model supports residual current monitoring, a section titled "Residual Current Monitor" is
displayed on the Inlet page. See Web Interface Operations for RCM.
•

Configuring a Multi-Inlet Model

If the PRO3X has more than one inlet, the Inlets page lists all inlets.
▶
To view or configure each inlet:
1) Click 'Show Details' of the desired inlet.
102
