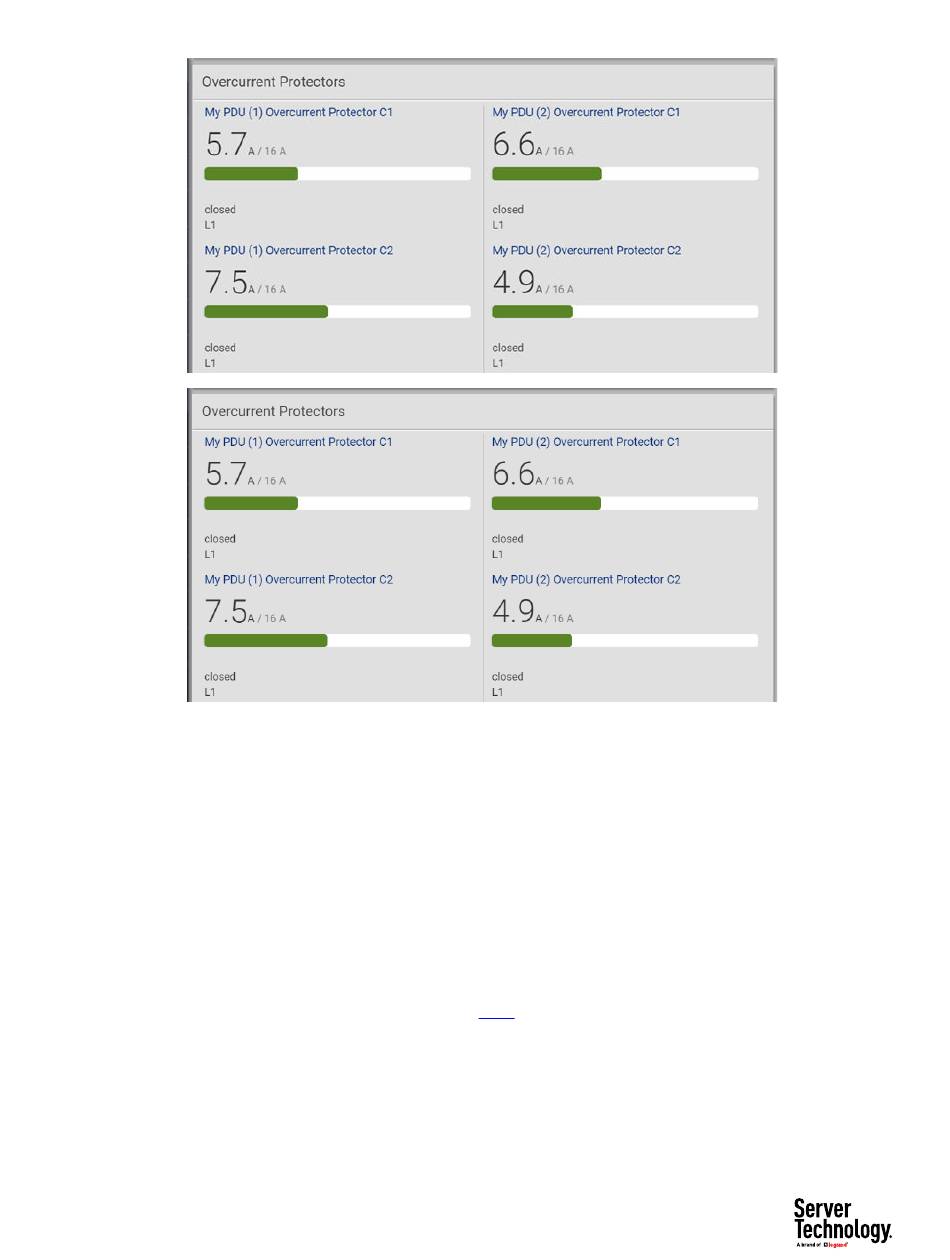

Each OCP's power data:
OCP data from top to bottom includes:
•
•
RMS current (A), and rated current
• Smaller gray text adjacent to RMS current is each OCP's rated current, such as "16A" shown in
•
the above diagram.
•
•
A bar showing OCP current levels
•
•
OCP status -- open or closed
•
•
Associated line pair
The RMS current bars automatically change colors to indicate the current status according to your
configured thresholds. To configure thresholds, see
86
OCPs
(on page 126).
