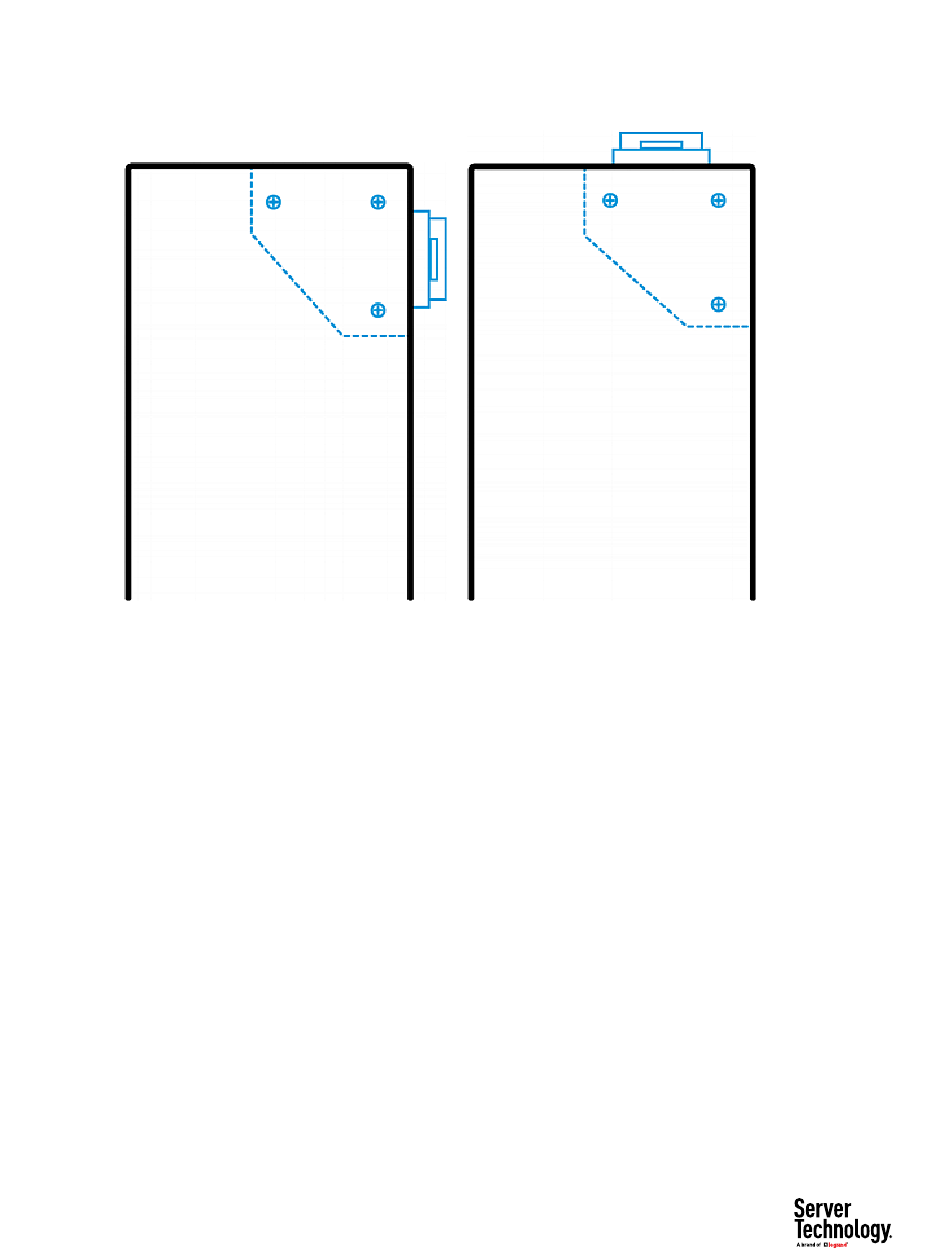

Inlet on the side
Outlets and Outlet LEDs
The total number and type of outlets varies from model to model.
PRO3X Outlets and LEDs
Green LEDs: Outlets powered ON.
Unlit LEDs: Outlets powered OFF.
Connection Ports
Connection ports vary by model.
PRO3X Connection Ports
PRO3X models have the following ports on the front panel:
•
•
ETH1/ETH2
•
•
CONSOLE/MODEM
•
•
USB-A
64
Inlet on the top
