Mounting Zero U Models Using Two Rear Buttons

▶
To mount Zero U models using two buttons:
1) Turn to the rear of the hardware.

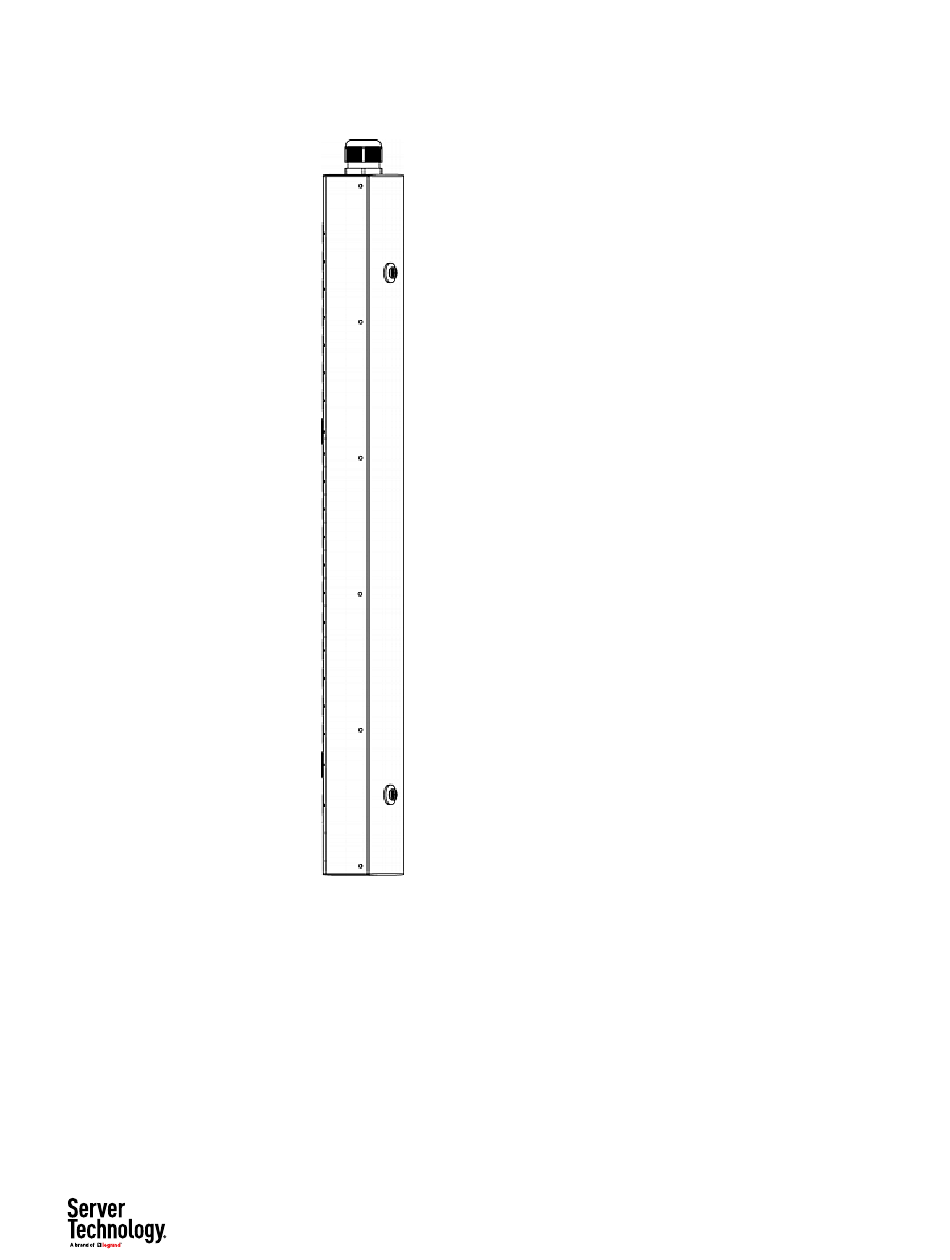

2) Locate two screw holes on the rear panel: one near the bottom and the other near the top (the side
of cable gland).
3) Screw a button in the screw hole near the bottom. The recommended torque for the button is 1.96
N·m (20 kgf·cm).
