Dashboard

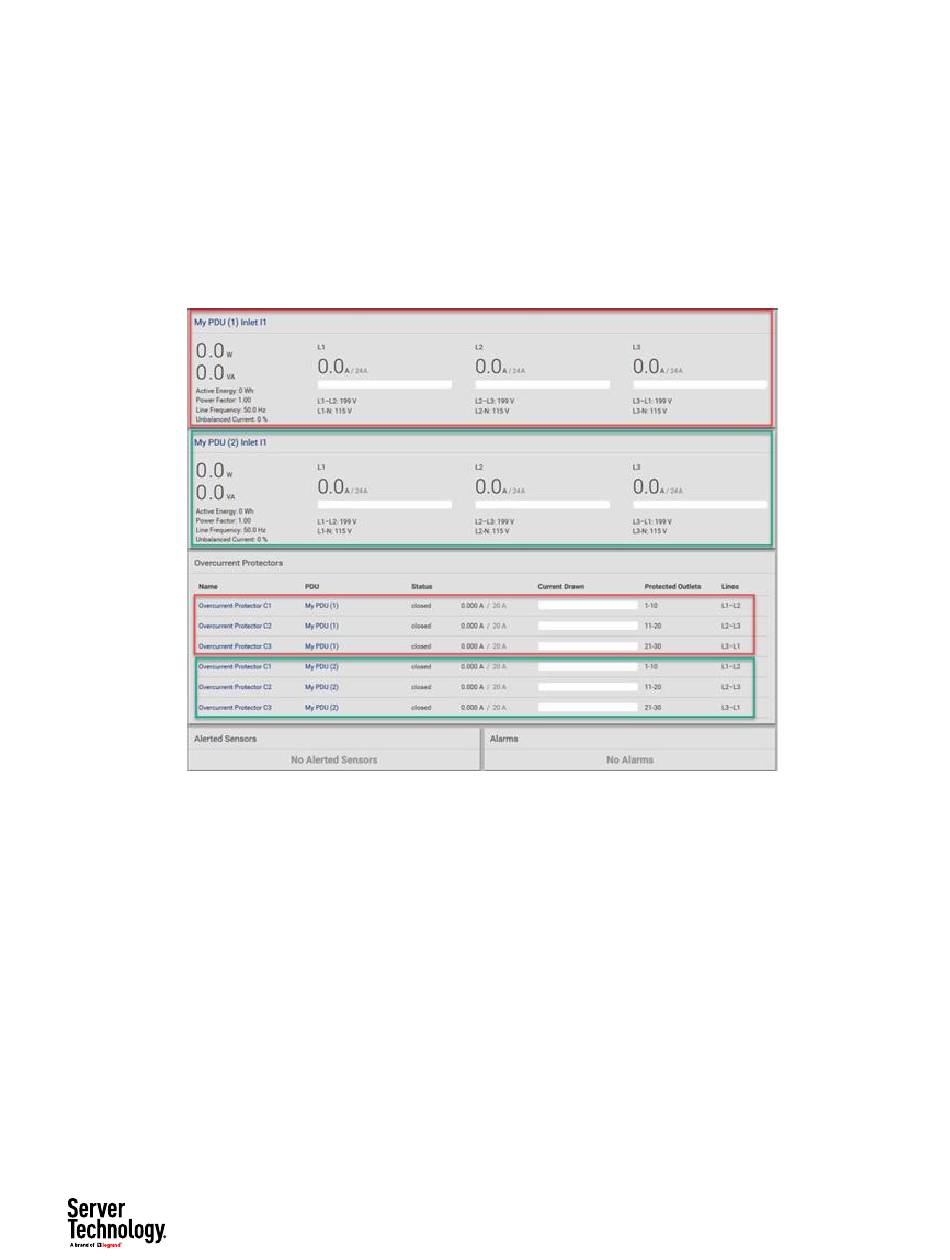

The Dashboard shows inlets, OCPs, alerted sensors, and inlet history for the entire linked chain.
In this example, data for the single inlet of the primary "My PDU (1)" Inlet I1, and the inlet of the link
unit "My PDU (2)" Inlet I1, are displayed together. The OCPs for the units are also available together on
the Dashboard page.
Peripheral sensors are not shown on the dashboard by default. Only sensors (both PDU or peripheral) in
warned or critical state are displayed in the Alerted Sensors section.
▶
PDU Page
The PDU page displays the details and settings for the selected unit (primary or link). The Link PDUs
section is only shown when the primary unit is selected.
49
